Install Rear CROSSMEMBER - Ar64.20-P-1100-05LCA

Model 217.4

Courtesy of MERCEDES-BENZ USA

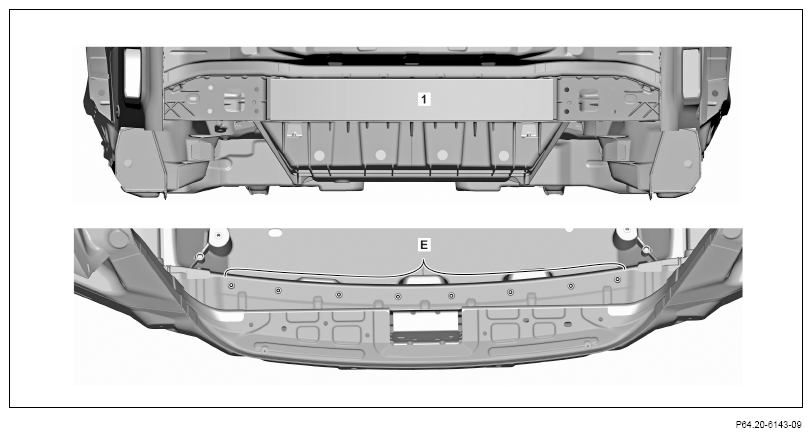

1. Install rear crossmember (1), fit and fix in place.
2. Drill Ø 6.7 mm rivet holes on rear crossmember (1) (area E).
3. Remove rear crossmember (1).
4. Deburr rivet holes on rear crossmember (1) and body on both sides.
5. Remove drilling chips.

   Courtesy of MERCEDES-BENZ USA

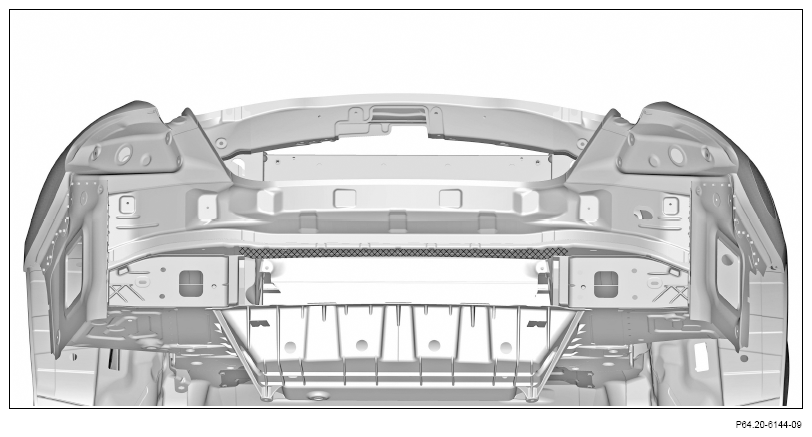

6. Apply 2-component adhesive to body cross-hatched areas.

   Observe pretreatment of bonding surfaces. Observe manufacturer's specifications for drying and processing time of adhesive.

   Courtesy of MERCEDES-BENZ USA

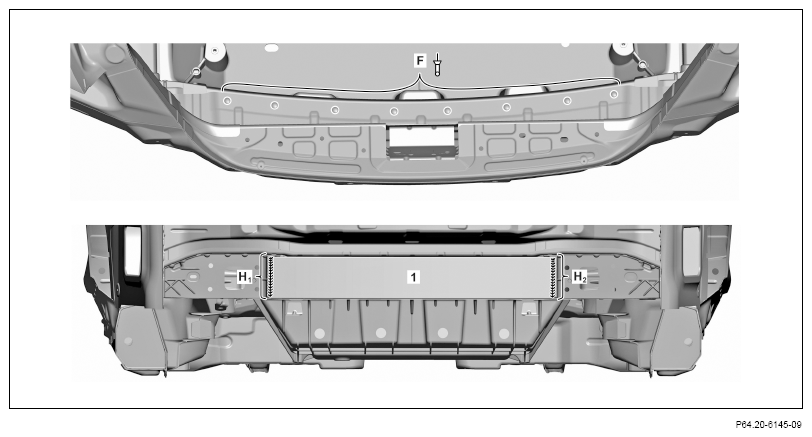

7. Install rear crossmember (1) and fix in place.
8. Rivet rear crossmember (1) with Ø 6.5x12.5 blind rivets (area F).
9. Rear crossmember (1) (areas H₁ and H₂ ).

   MIG weld in intervals, allow to cool down in between, minimum heat distortion.

   Courtesy of MERCEDES-BENZ USA

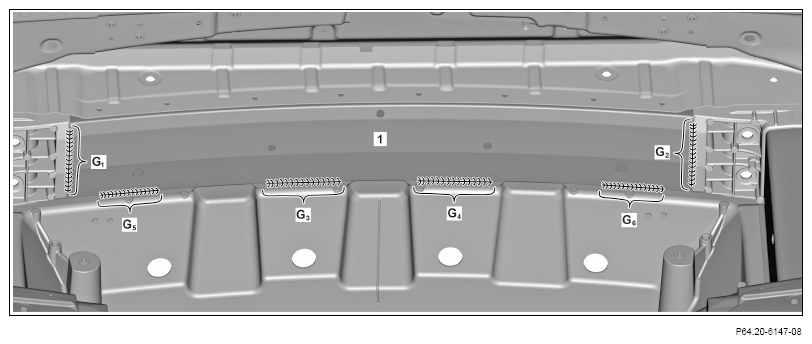

10. Rear crossmember (1) (areas G₁ , G₂ , G₃ , G ₄ , G₅ and G₆ )

    MIG weld in intervals, allow to cool down in between, minimum heat distortion.
