Replace Spare Tire Well - Ar64.20-P-1245LCA
Model 217.4
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | General information on body repair | AH60.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| General information on MB materials | AH98.00-P-9409-03A | ||
| Remove | |||
| 1 | Remove all detachable parts in area to be repaired | ||
| 2 | Cover all detachable parts remaining on vehicle with spark protection blankets | ||

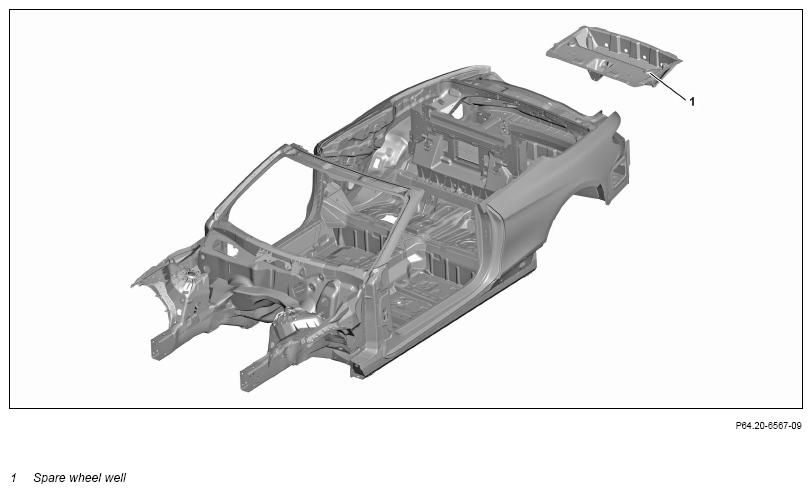

| 3 | Remove spare wheel well (1) | Round wire brush Wet/dry vacuum cleaner Angular grinder |
AR64.20-P-1245-01LCA |
| 4 | Prepare mating surfaces on vehicle for spare wheel well (1) | Angular grinder Wet/dry vacuum cleaner |
AR64.20-P-1245-04LCA |
| 5 | Prepare spare tire well (1) | Round wire brush |
AR64.20-P-1245-02LCA |
| Install | |||
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A | |
| Notice | Measures for preventing damage to components when performing electric welding and soldering work | AH60.00-P-0001-02A | |
| 6 | Install spare wheel well (1) | ||
| 000 588 02 84 00 Welder | WS60.00-P-0022K | ||
Round wire brush Wet/dry vacuum cleaner |
AR64.20-P-1245-03LCA | ||
| 7 | Clean welds and sheet metal flanges | Round wire brush |
|
| 8 | Remove spark protection blankets | ||
| 9 | Clean repair area | Wet/dry vacuum cleaner |
|
| 10 | Prime repair area using primer filler | ||
| Notice | Notes on paintwork repairs | AH98.00-P-9408-02A | |
| 11 | Seal seam following repairs | AR97.10-P-4000LF | |
| 12 | Paint repair areas and adjacent surfaces | ||
| Notice | Notes on paintwork repairs | AH98.00-P-9408-02A | |
| 13 | Add cavity preserving agent | AR97.20-P-1500LF | |
| 14 | Install all detachable body components in area to be repaired |
