Remove Spare Tire Well - Ar64.20-P-1245-01LCA

Model 217.4

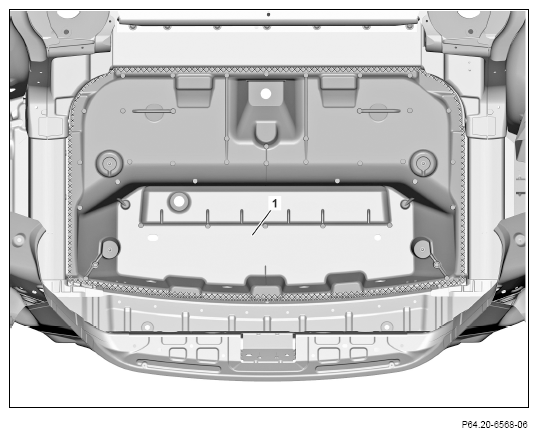

1. Remove sealant in crosshatched area on mating surface on both sides.
2. Secure spare wheel well (1) against falling down.

   Courtesy of MERCEDES-BENZ USA

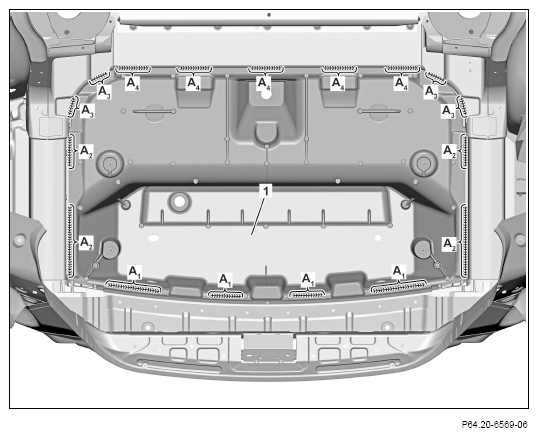

3. Separate weld seams (A₁ , A₂ , A₃ , A ₄ ).

   Position separating points along welds.

4. Remove spare wheel well (1).

   Courtesy of MERCEDES-BENZ USA
