Prepare Spare Tire Well - Ar64.20-P-1245-02LCA

Model 217.4

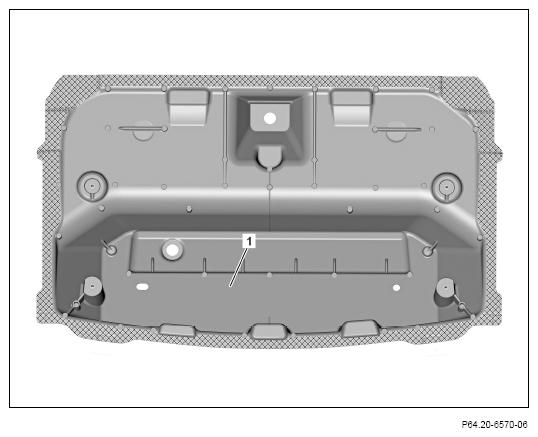

  1. Grind mating surface on spare wheel well (1) down to bare metal in crosshatched area.
  2. Remove grinding dust.
    G15300574Courtesy of MERCEDES-BENZ USA
