Prepare Rear Floor Assembly - Ar64.20-P-1300-02LCA

Model 217.4

Courtesy of MERCEDES-BENZ USA

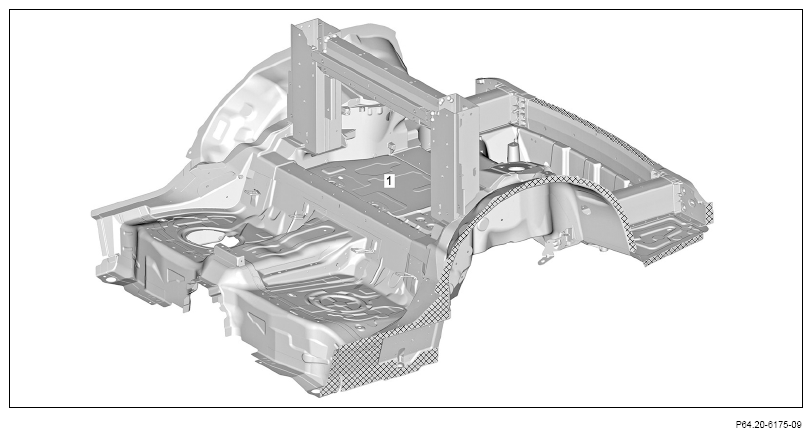

1. Grind mating surfaces on rear-end floor (1) down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces.

2. Remove grinding dust.

   Courtesy of MERCEDES-BENZ USA

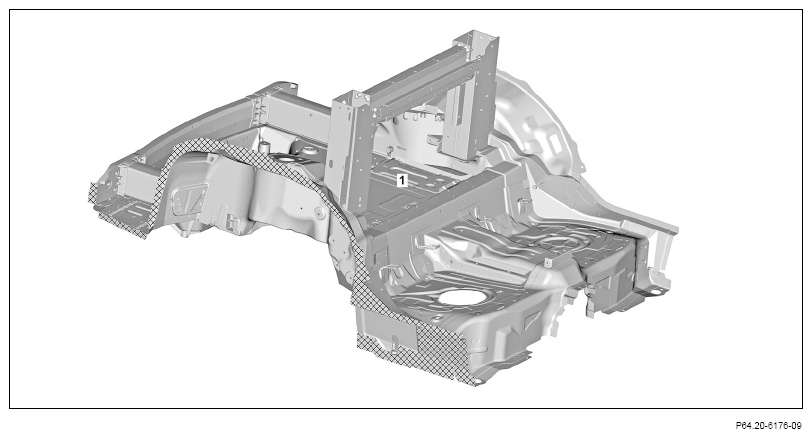

3. Grind mating surfaces on rear-end floor (1) down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces.

4. Remove grinding dust.

   Courtesy of MERCEDES-BENZ USA

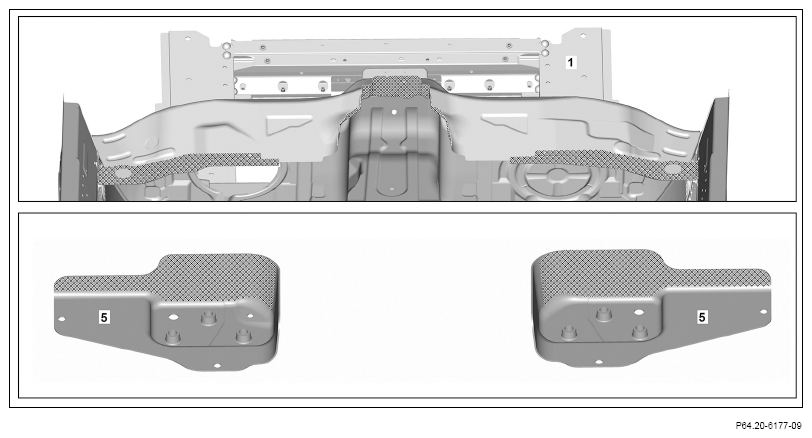

5. Grind mating surfaces on rear-end floor (1) down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces.

6. Grind mating surfaces on new mounting console (5) down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces.

7. Remove grinding dust.

   Courtesy of MERCEDES-BENZ USA

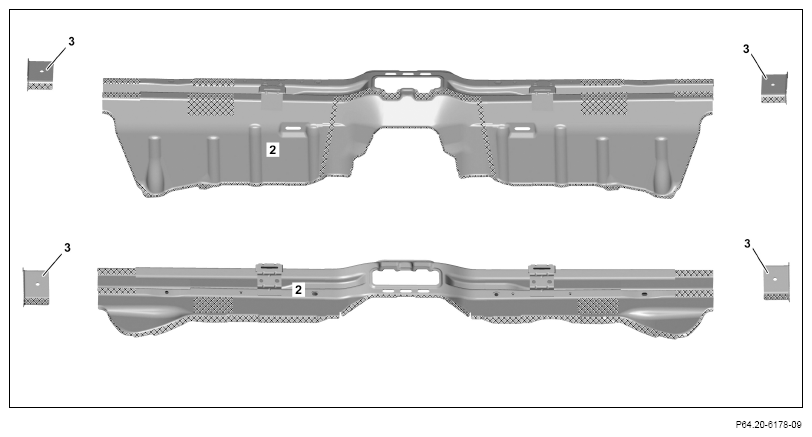

8. Grind mating surfaces on center crossmember reinforcement (2) down to bare metal in crosshatched areas.
9. Grind mating surfaces on outer crossmember reinforcements (3) down to bare metal in crosshatched areas.
10. Remove grinding dust.

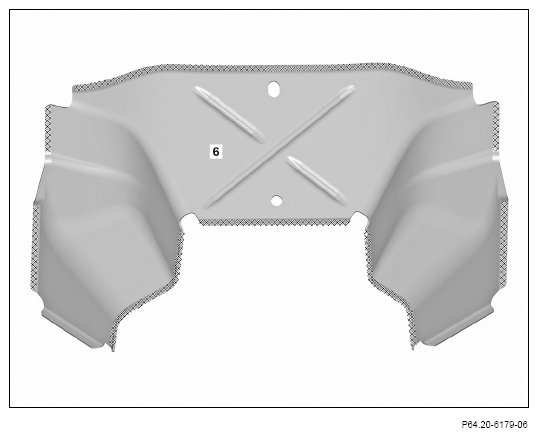

11. Grind mating surfaces on center reinforcement (6) down to bare metal in crosshatched areas.
12. Remove grinding dust.

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

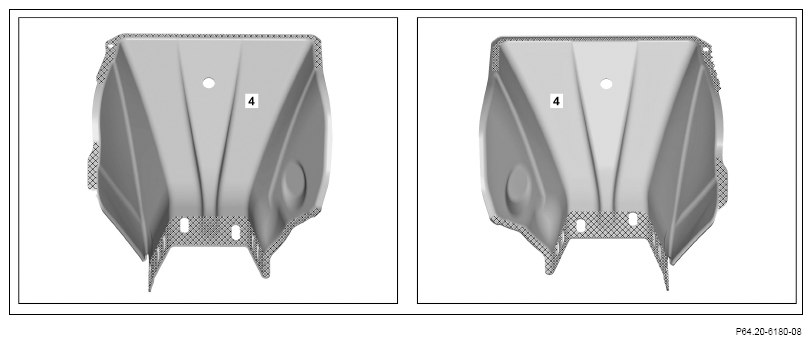

13. Grind mating surfaces on B-pillar reinforcements (4) down to bare metal in crosshatched areas.
14. Grind mating surfaces on cover panels on side longitudinal member (7) down to bare metal in crosshatched areas on both sides.
15. Remove grinding dust.
16. Apply zinc dust paint to inside of connecting flange.
