Prepare Mating Surfaces On Vehicle For Spare Tire Well - Ar64.20-P-1245-04LCA

Model 217.4

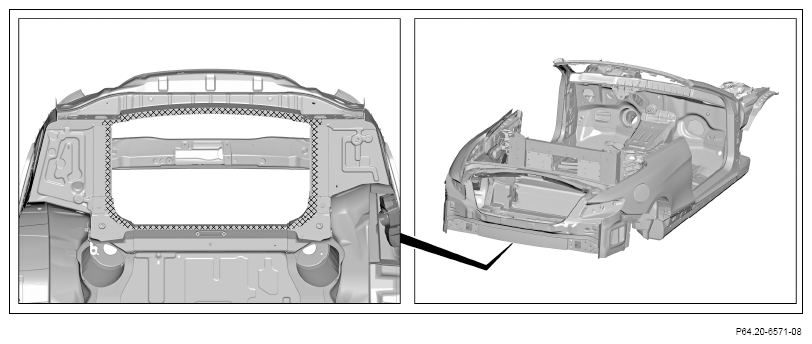

G15300576Courtesy of MERCEDES-BENZ USA
  1. Remove adhesive residues in crosshatched area.
  2. Grind off remaining weld seams in crosshatched area.
  3. Grind mating surfaces down to bare metal in crosshatched area.
  4. Remove grinding dust.
