Install Top Rear CROSSMEMBER For Soft-Top Compartment - Ar64.20-P-1150-03LCA

Model 217.4

Courtesy of MERCEDES-BENZ USA

1. Install upper rear crossmember for soft top compartment bottom section (1.2) and fit.
2. Fix upper rear crossmember for soft top compartment bottom section (1.2) in place.

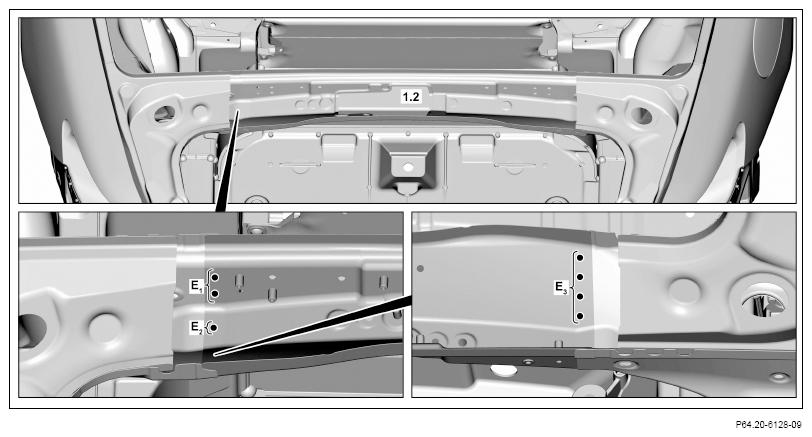

3. Upper rear crossmember for soft top compartment bottom section (1.2) (areas E₁ , E₂ and E₃ )

   Courtesy of MERCEDES-BENZ USA

4. Install upper rear crossmember for soft top compartment top section (1.1) and fit.
5. Fix upper rear crossmember for soft top compartment top section (1.1) in place.

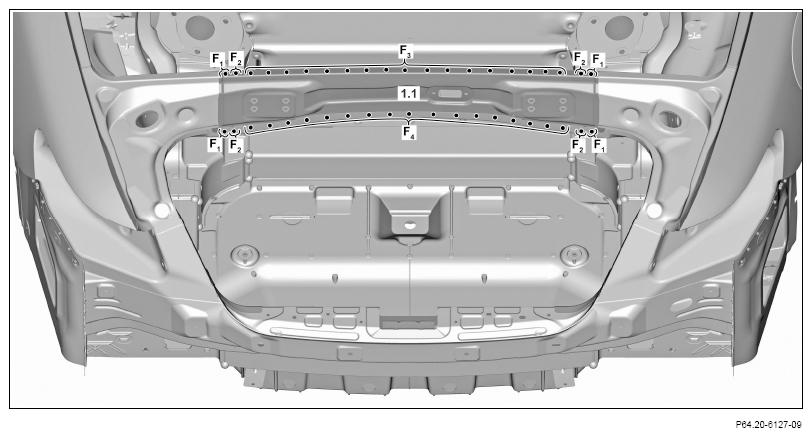

6. Upper rear crossmember for soft top compartment top section (1.1) (areas F₁ , F ₂ , F₃ and F₄ )

   Courtesy of MERCEDES-BENZ USA

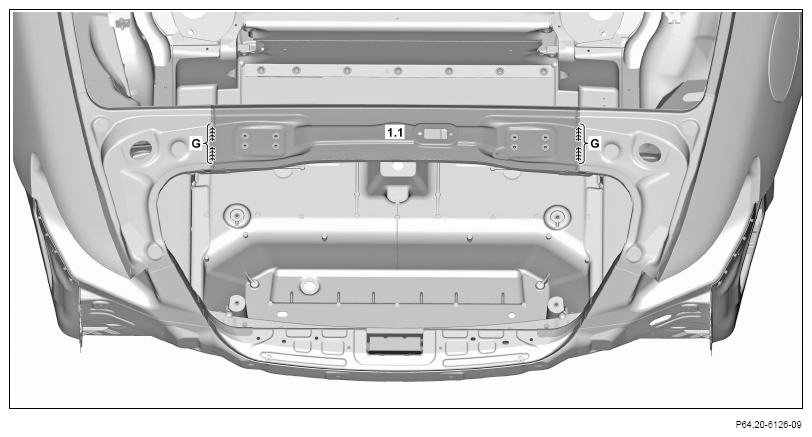

7. Upper rear crossmember for soft top compartment top section (1.1) (areas G)

   Perform inert gas welds as stitch weld.

8. Grind inert gas welds (areas G).
