Install Rear Floor - Ar64.20-P-1300-04LCA

Model 217.4

Courtesy of MERCEDES-BENZ USA

The following operation steps 4 to 18 are shown on the left side of the vehicle and must be performed analogously on the right side.

1. Install rear floor (1) and fix in place.

   Helper required.

2. Place vehicle on straightening bench and fasten.
3. Fit rear-end floor (1) with straightening tool and fix in place.

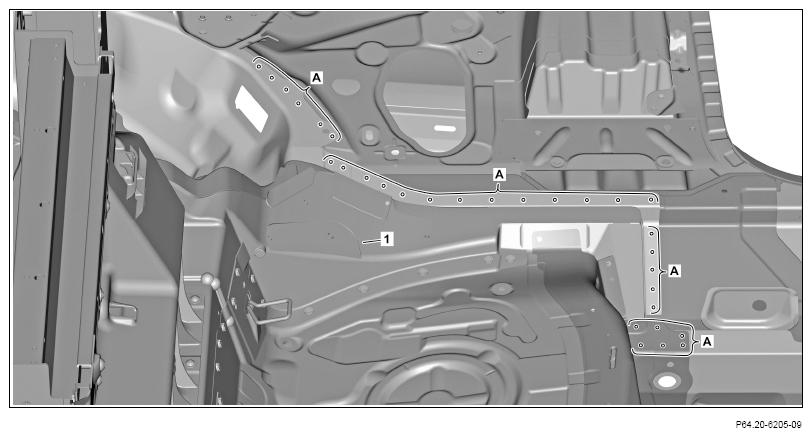

4. Drill Ø 6.7 mm rivet holes in rear-end floor (1) (areas A).

   Courtesy of MERCEDES-BENZ USA

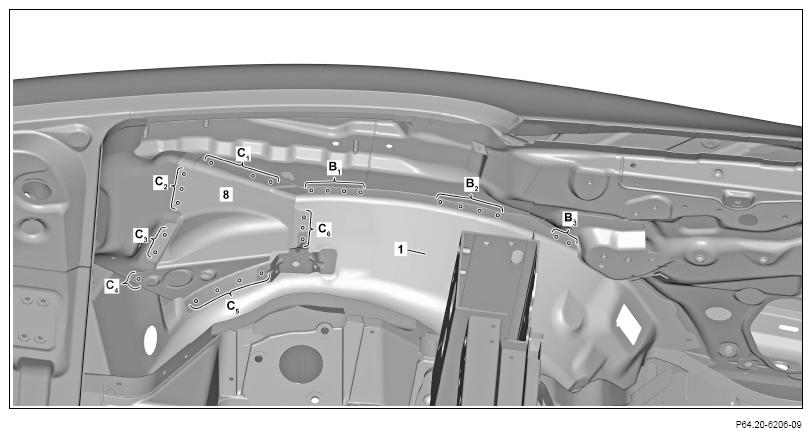

5. Install brace (8).
6. Drill Ø 6.7 mm rivet holes in rear-end floor (1) (areas B₁ , B₂ and B₃ ).
7. Drill Ø 6.7 mm rivet holes in strut (8) (areas C₁ , C₂ , C₃ , C₄ , C₅ and C₆ ).

   Courtesy of MERCEDES-BENZ USA

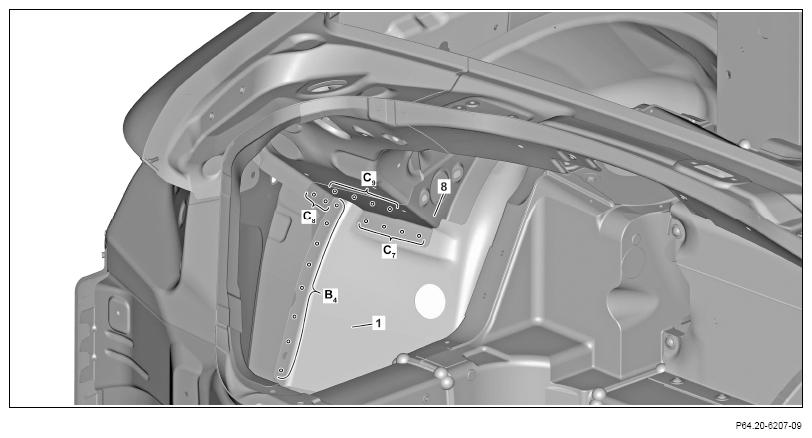

8. Drill Ø 6.7 mm rivet holes in rear-end floor (1) (areas B₄ ).
9. Drill Ø 6.7 mm rivet holes in strut (8) (areas C₇ , C₈ and C₉ ).
10. Remove strut (8)

    Courtesy of MERCEDES-BENZ USA

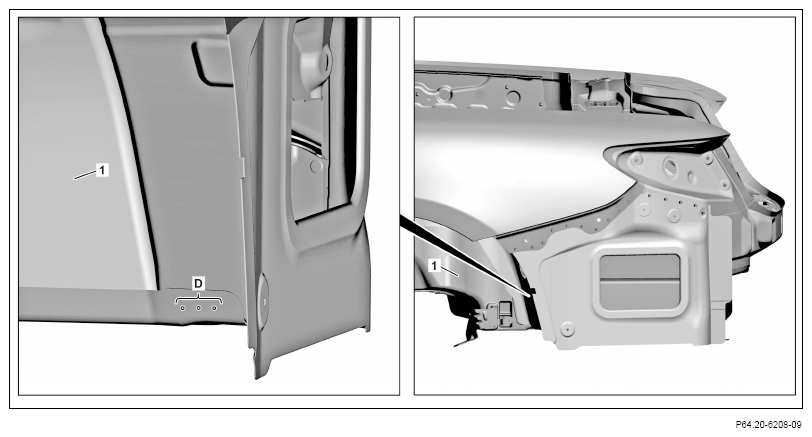

11. Drill Ø 6.7 mm rivet holes in rear-end floor (1) (area D).

    Courtesy of MERCEDES-BENZ USA

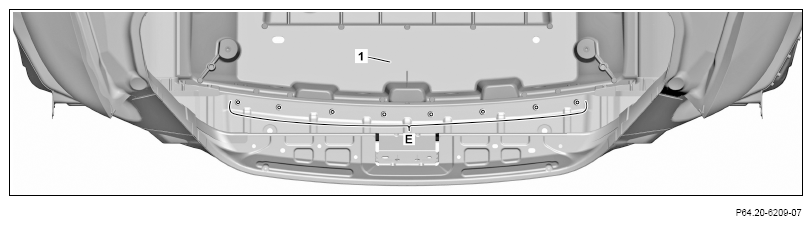

12. Drill Ø 6.7 mm rivet holes in rear-end floor (1) (area E).

    Courtesy of MERCEDES-BENZ USA

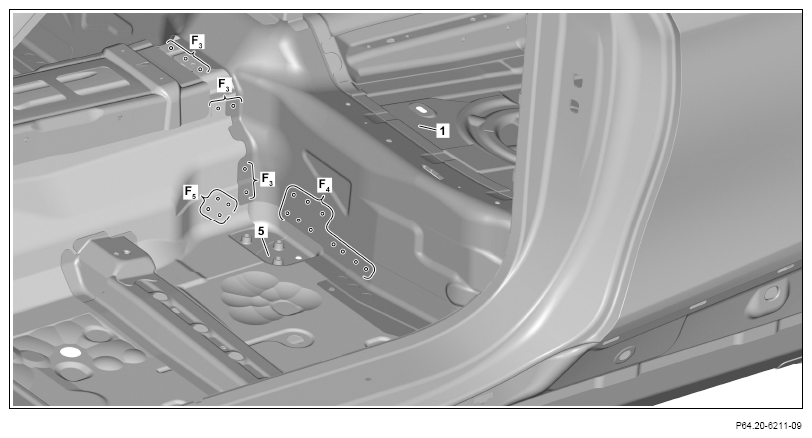

13. Install mounting console (5), fit and fix in place.

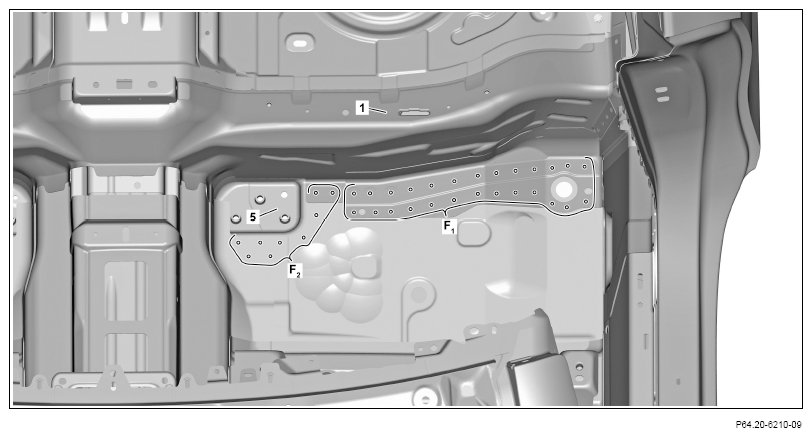

14. Drill Ø 6.7 mm rivet holes in rear-end floor (1) (area F₁ ).
15. Drill Ø 6.7 mm rivet holes in mounting console (5) (area F₂ ).

    Courtesy of MERCEDES-BENZ USA

16. Drill Ø 6.7 mm rivet holes in rear-end floor (1) (area F₃ ).
17. Drill Ø 6.7 mm rivet holes in mounting console (5) (areas F₄ and F₅ ).
18. Remove mounting console (5).
19. Release vehicle from straightening bench, lift and remove straightening bench.
20. Remove rear-end floor (1) downward toward rear.

    Helper required.

21. Debrurr rivet holes on rear-end floor (1) and on body on both sides.
22. Remove drilling chips.

    Courtesy of MERCEDES-BENZ USA

    To maintain the curing and processing time specified in the instructions for the 2-component adhesive, it is necessary for at least 3 experienced workers to cooperate in performing the following work steps, while dividing up the work steps appropriately and performing them as concurrently as possible. In some cases it is necessary to have and use several sets of the required tools. Mark rivet holes and rivets in color to match one another.

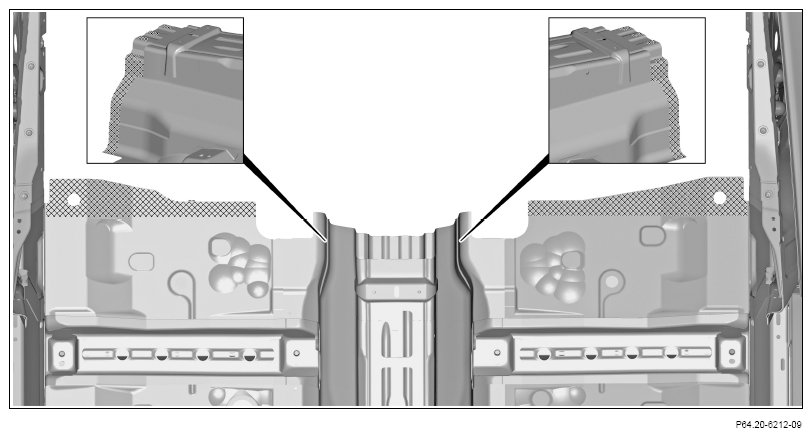

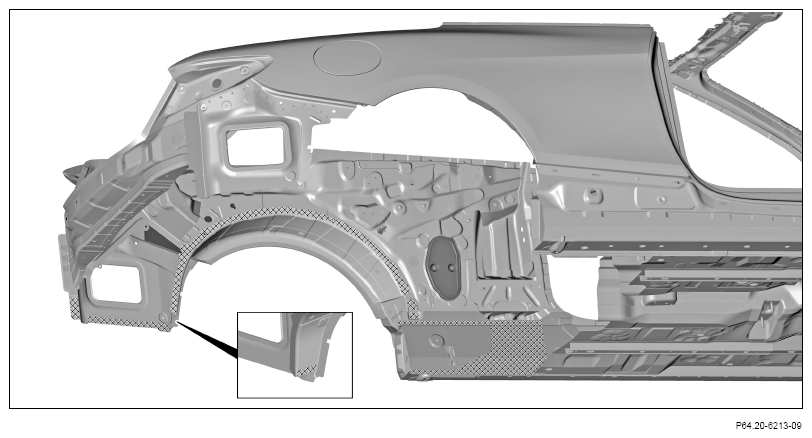

23. Apply 2-component adhesive to body in cross-hatched areas.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for curing and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

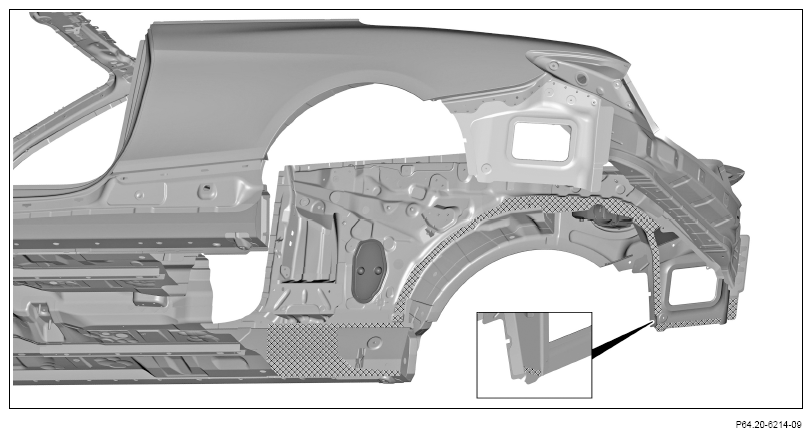

24. Apply 2-component adhesive to body in cross-hatched areas.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for curing and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

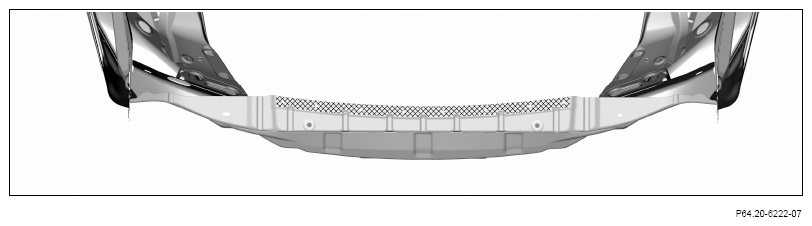

25. Apply 2-component adhesive to body in cross-hatched areas.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for curing and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

26. Apply 2-component adhesive to body in cross-hatched areas.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for curing and processing time of 2-component adhesive.

    The following operation steps 30 to 47 are shown on the left side of vehicle and must be performed analogously on the right side.

27. Install rear floor (1) and fix in place.

    Slightly press body apart using spreader when moving in rear-end-floor (1).

    Ensure that the adhesive is not scraped off during application.

28. Place vehicle on straightening bench and fasten.
29. Align rear-end floor (1) with straightening tool and fix in place.
30. Screw rear-end floor (1) with bolts (10).

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

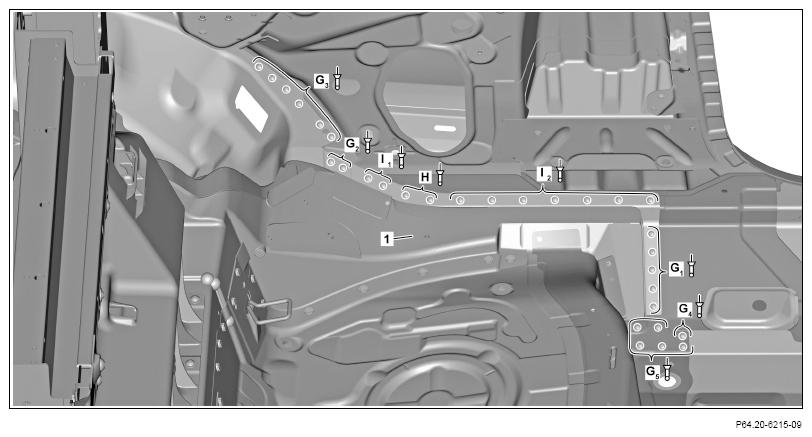

31. Rivet rear-end floor (1) with Ø 6.5x12.5 rivets (areas G₁ , G₂ ; G₃ and G₅ ).

    Use Ø 6.4x12 rivets on right side of vehicle (area G₃ )

32. Rivet rear-end floor (1) with Ø 6.5x12.5 rivet (area G₄ ).
33. Rivet rear-end floor (1) with Ø 6.4 rivets M6 (areas I₁ and I₂ ).
34. Rivet rear-end floor (1) with Ø 6.4 rivets (area H).

    Courtesy of MERCEDES-BENZ USA

35. Install strut (8) and fix in place.
36. Rivet rear-end floor (1) with Ø 6.5x12.5 rivets (areas J₁ , J₂ and J₃ ).

    Use Ø 6.4x12 rivets on right side of vehicle (areas J₁ , J₂ and J₃ )

37. Rivet strut (8) with Ø 6.4x12 rivets (area K).
38. Rivet strut (8) with Ø 6.5x12.5 rivets (areas L₁ , L₂ , L₃ , L₄ and L₅ ).

    Courtesy of MERCEDES-BENZ USA

39. Rivet rear-end floor (1) with Ø 6, 4x12 rivets (area M).
40. Rivet strut (8) with Ø 6.5x12, 5 rivets (area N₁ , N₂ and N ₃ ).

    Courtesy of MERCEDES-BENZ USA

41. Rivet rear-end floor (1) with Ø 6, 4x12 rivets (area O).

    Courtesy of MERCEDES-BENZ USA

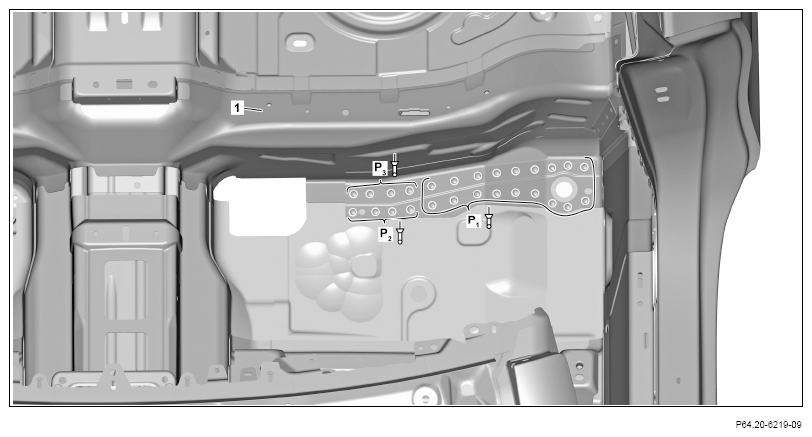

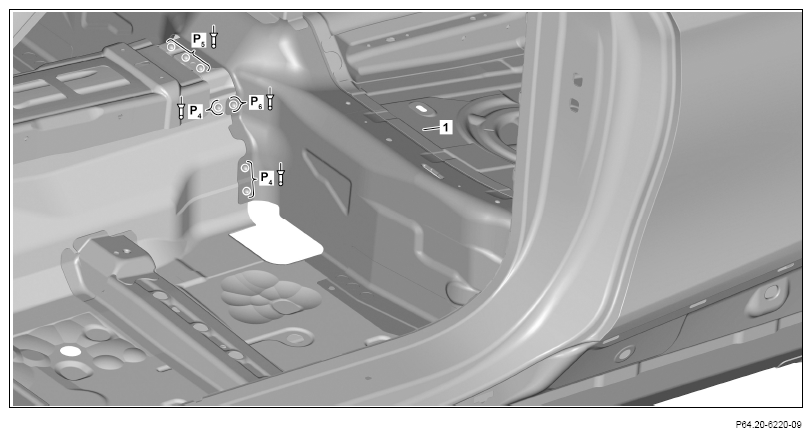

42. Rivet rear-end floor (1) with Ø 6.4x12 rivets (area P₁ ).
43. Rivet rear-end floor (1) with Ø 6.5x12.5 rivets (area P₂ ).
44. Rivet rear-end floor (1) with Ø 6.4x15.5 rivets (area P₃ ).

    Courtesy of MERCEDES-BENZ USA

45. Rivet rear-end floor (1) with Ø 6.4x14.0 rivets (areas P₄ ).
46. Rivet rear-end floor (1) with Ø 6, 4x15.5 rivet (area P₆ ).
47. Rivet rear-end floor (1) with Ø 6.5x12.5 rivets (area P₅ ).

    Courtesy of MERCEDES-BENZ USA

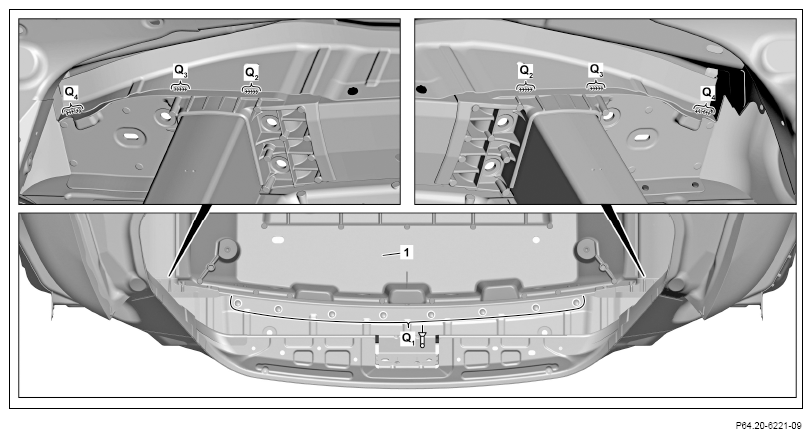

48. Rivet rear-end floor (1) with Ø 6.5x12.5 rivets (area Q₁ ).
49. Rear-end floor (1) (areas Q₁ , Q₂ and Q₃ ).

    Courtesy of MERCEDES-BENZ USA

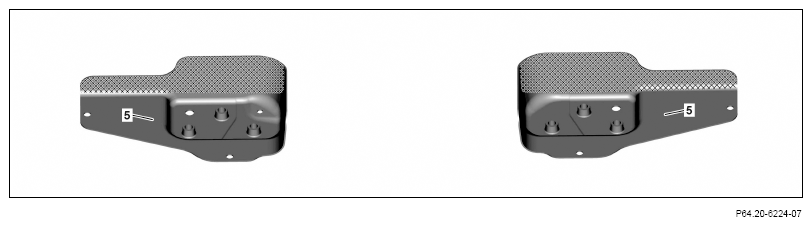

50. Apply 2-component adhesive to mounting consoles (5) in crosshatched areas.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for curing and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

    The following operation steps 51 to 54 are shown on the left side of the vehicle and must be performed analogously on the right side.

51. Install mounting console (5).
52. Rivet mounting console (5) with Ø 6.4x14 rivets (area R₁ ).
53. Rivet mounting console (5) with Ø 6.5x12.5 rivets (area R₂ , R₃ and R₄ ).
54. Rear-end floor (1) (area R₅ ).

    Courtesy of MERCEDES-BENZ USA

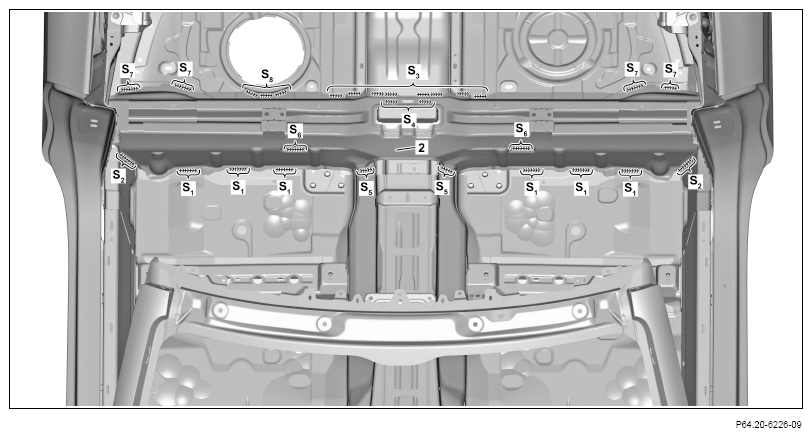

55. Install center crossmember reinforcement (2).
56. Center crossmember reinforcement (2) (areas S₁ , S₂ , S₃ , S₄ , S₅ , S₆ , S₇ and S₈ ).

    Courtesy of MERCEDES-BENZ USA

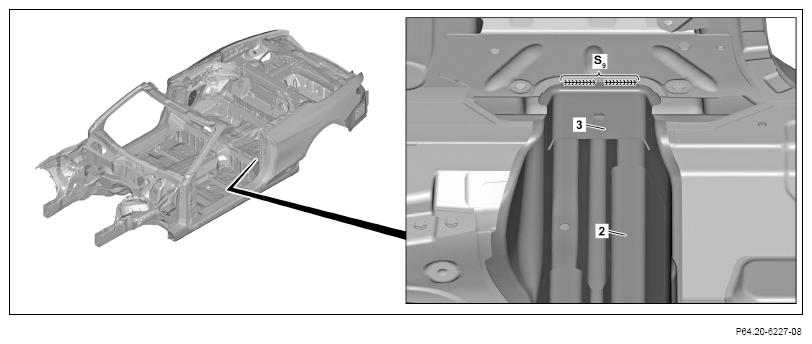

57. Outer crossmember reinforcement (3) (area S₉ ).

    Courtesy of MERCEDES-BENZ USA

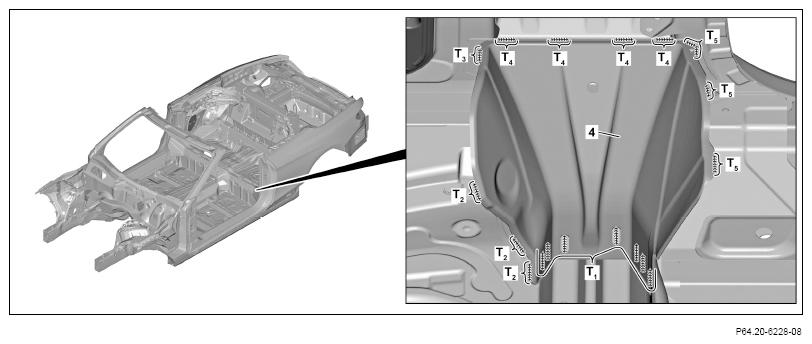

58. Install B-pillar reinforcements (4).
59. B-pillar reinforcements (4) (areas T₁ , T₂ , T₃ , T₄ and T₅ ).

    Courtesy of MERCEDES-BENZ USA

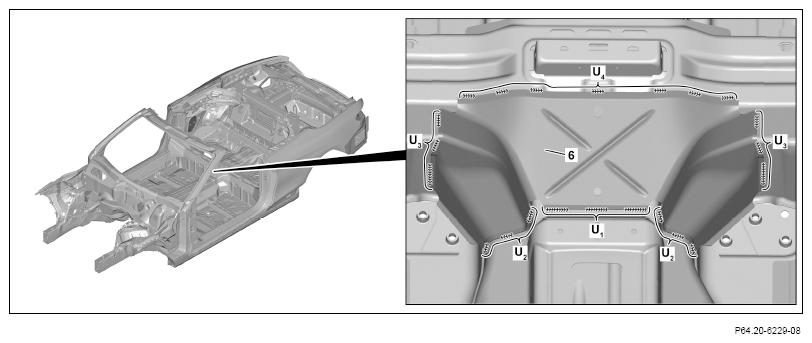

60. Install center reinforcement (6).
61. Center reinforcement (6) (areas U₁ , U₂ , U₃ and U₄ ).

    Courtesy of MERCEDES-BENZ USA

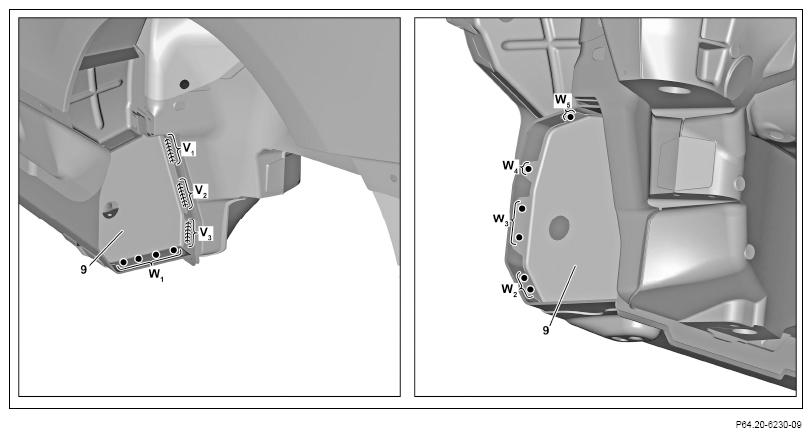

62. Install cover for longitudinal member (9) and fit.
63. Cover for longitudinal member (9) (areas V₁ , V₂ and V₃ ).
64. Cover for longitudinal member (9) (areas W₁ , W₂ , W₃ , W₄ and W₅ ).
