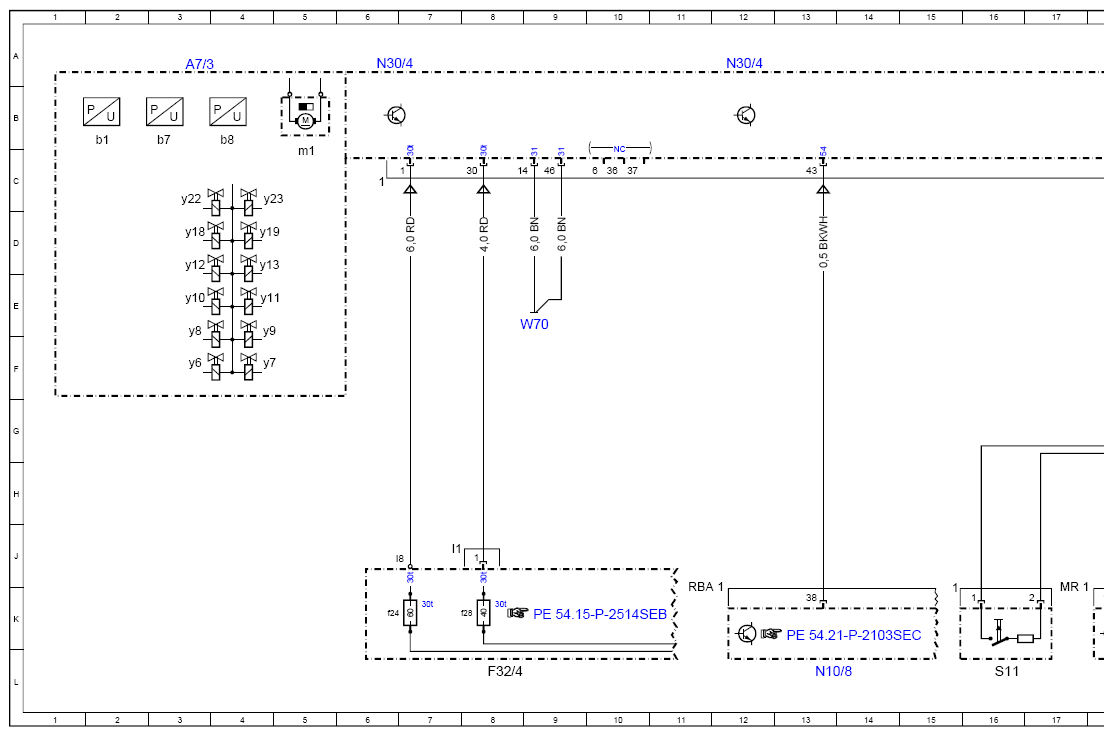

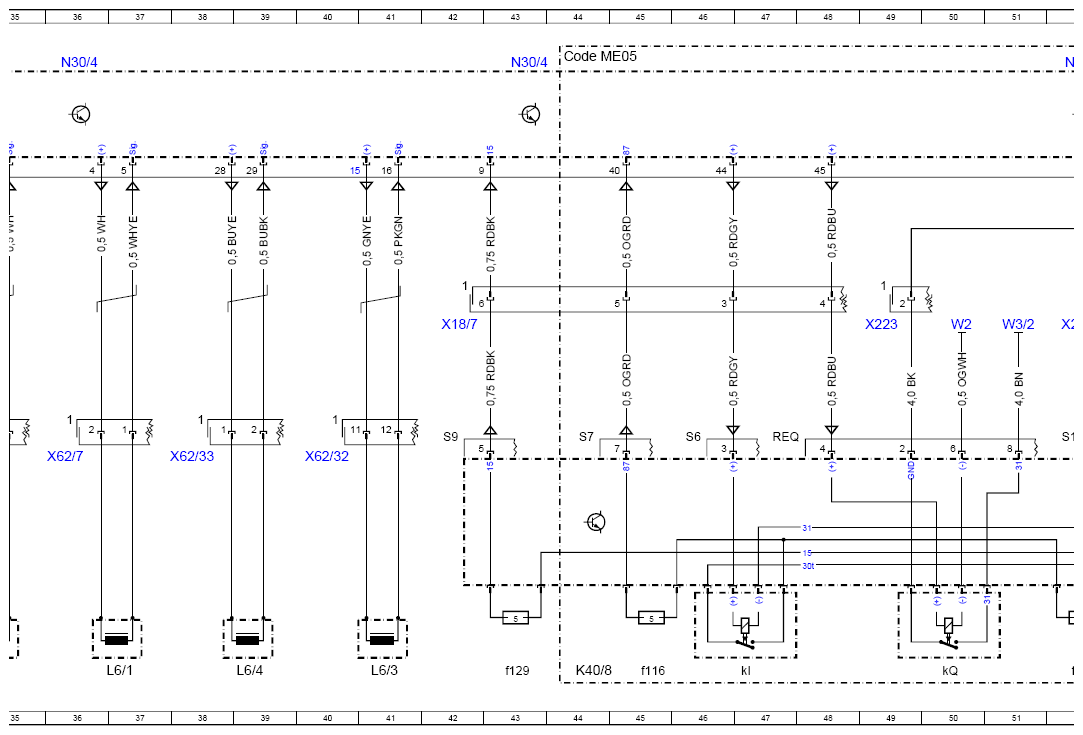

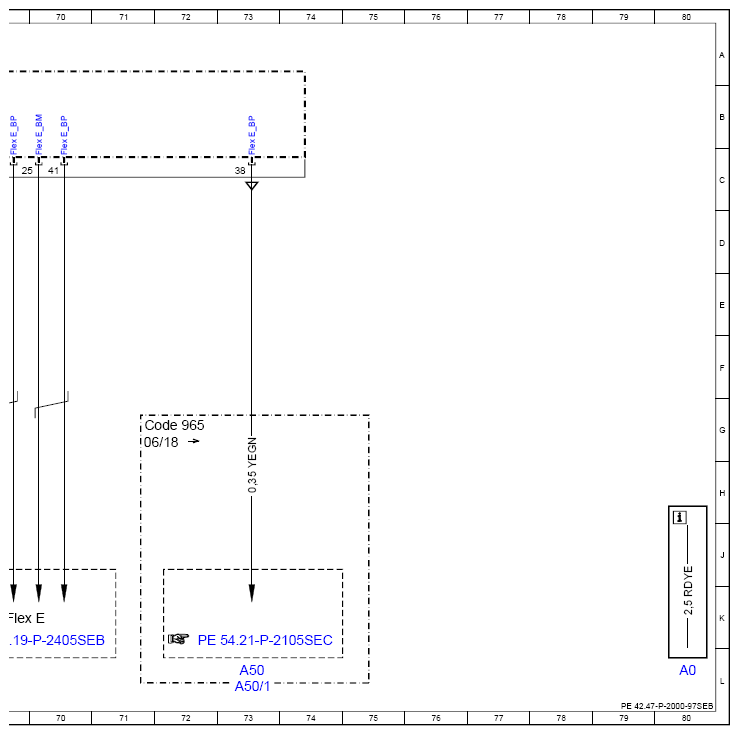

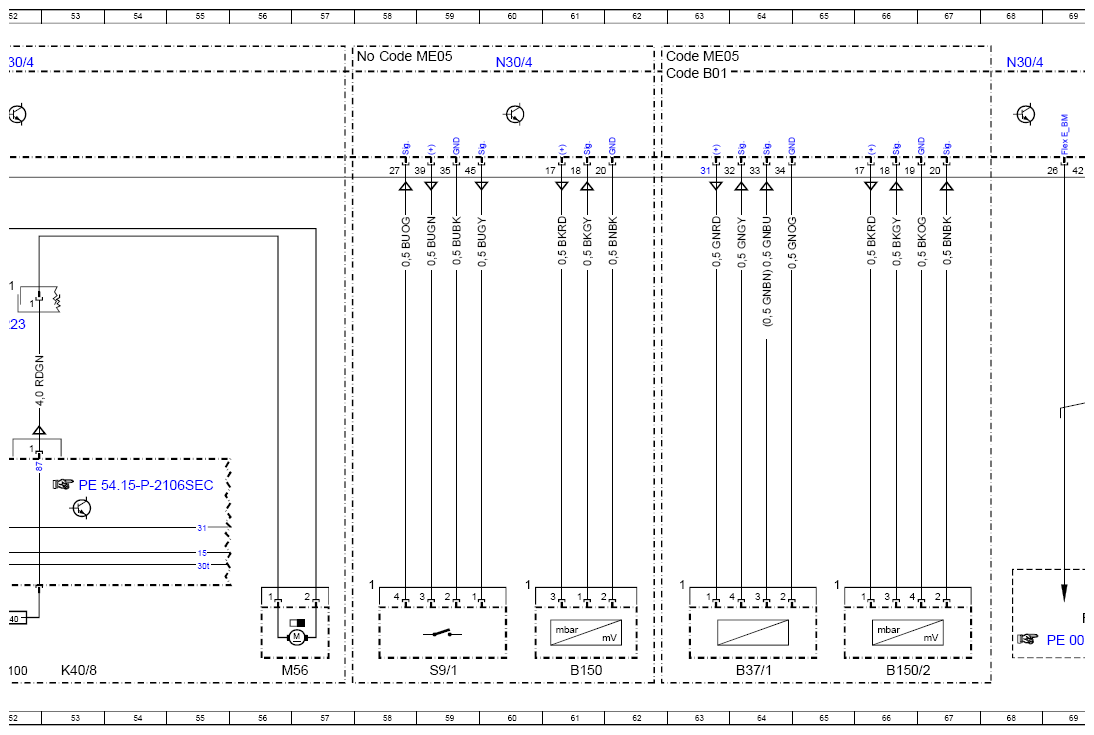

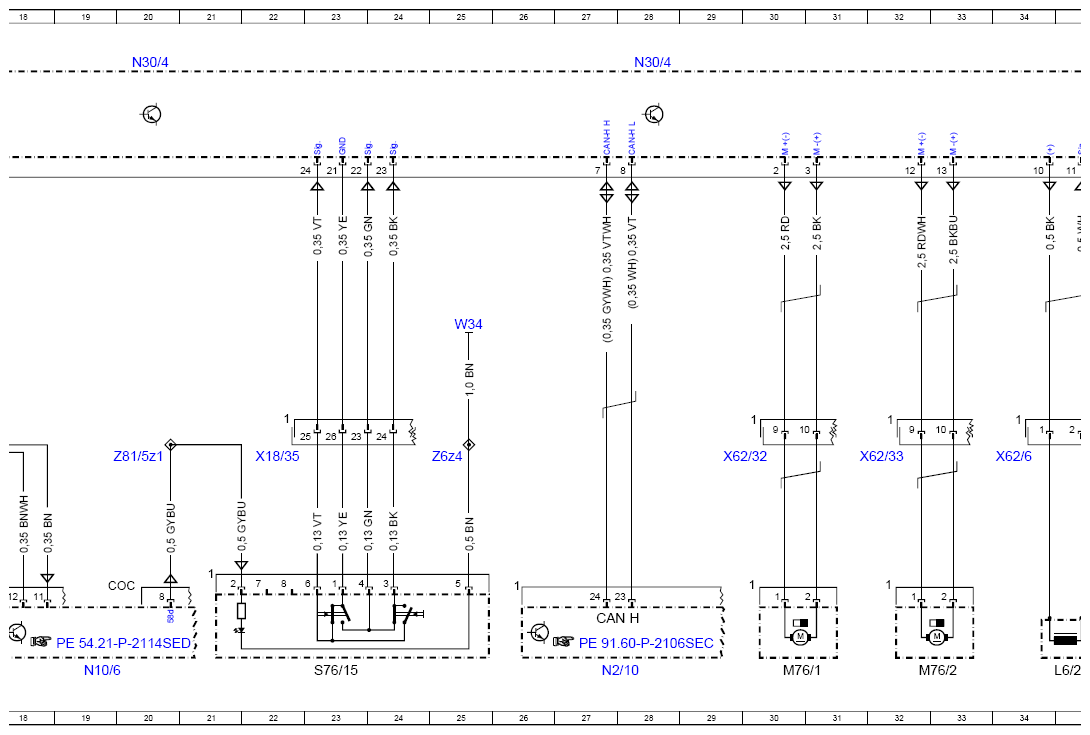

Wiring Diagram For Adaptive Brake (ABR) - PE42.47-P-2000-97SEB
Model 217, 222 as of model year 2018 Control unit N30/4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| A50 | Taximeter | 73L |
| A50/1 | Mirror taximeter | 73L |
| A7/3 | Traction system hydraulic unit | 3A |
| A7/3b1 | Front axle brake pressure sensor | 2B |
| A7/3b7 | Front pressure sensor | 3B |
| A7/3b8 | Rear pressure sensor | 4B |
| A7/3m1 | High pressure and return pump | 5C |
| A7/3y10 | Left rear pressure regulator valve (pressure hold) | 3E |
| A7/3y11 | Left rear pressure regulator valve (pressure release) | 4E |
| A7/3y12 | Right rear pressure regulator valve (pressure hold) | 3D |
| A7/3y13 | Right rear pressure regulator valve (pressure release) | 4D |
| A7/3y18 | Front axle switchover valve | 3D |
| A7/3y19 | Rear axle switchover valve | 4D |
| A7/3y22 | Front axle intake ball valve | 3C |
| A7/3y23 | Rear axle intake ball valve | 4C |
| A7/3y6 | Left front pressure regulator valve (pressure hold) | 3F |
| A7/3y7 | Left front pressure regulator valve (pressure release) | 4F |
| A7/3y8 | Right front pressure regulator valve (pressure hold) | 3E |
| A7/3y9 | Right front pressure regulator valve (pressure release) | 4E |
| B150 | Brake vacuum sensor | 61L |
| B150/2 | Dual brake vacuum sensor | 66L |
| B37/1 | Pedal angle sensor | 64L |
| CAN H | Vehicle dynamics CAN | 27K |
| Code 965 | Taxi/rental car - Pre-installation | 71G |
| Code B01 | 48V technology | 62A |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 44A |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 62A |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 58A |
| F32/4 | Vehicle interior prefuse box | 8L |
| F32/4f24 | Fuse 24 | 6K |
| F32/4f28 | Fuse 28 | 8K |
| Flex E | Chassis FlexRay | 69K |
| K40/8 | Engine fuse and relay module | 53L |
| K40/8 | Engine fuse and relay module | 44L |
| K40/8f100 | Fuse 100 | 52L |
| K40/8f116 | Fuse 116 | 45L |
| K40/8f129 | Fuse 129 | 43L |
| K40/8kI | Brake vacuum pump relay | 47L |
| K40/8kQ | Vacuum pump relay | 50L |
| L6/1 | Left front axle rpm sensor | 37L |
| L6/2 | Right front axle rpm sensor | 35L |
| L6/3 | Left rear axle rpm sensor | 41L |
| L6/4 | Right rear axle rpm sensor | 39L |
| M56 | Vacuum pump | 56L |
| M76/1 | Left electric parking brake actuator motor | 30L |
| M76/2 | Right electric parking brake actuator motor | 32L |
| N10/6 | Front SAM control unit | 19L |
| N10/8 | Rear SAM control unit | 13L |
| N2/10 | Supplemental restraint system control unit | 27L |
| N30/4 | Electronic Stability Program control unit | 6A |
| N30/4 | Electronic Stability Program control unit | 12A |
| N30/4 | Electronic Stability Program control unit | 28A |
| N30/4 | Electronic Stability Program control unit | 20A |
| N30/4 | Electronic Stability Program control unit | 36A |
| N30/4 | Electronic Stability Program control unit | 43A |
| N30/4 | Electronic Stability Program control unit | 52A |
| N30/4 | Electronic Stability Program control unit | 60A |
| N30/4 | Electronic Stability Program control unit | 68A |
| S11 | Brake fluid level switch | 16L |
| S76/15 | Electric parking brake switch | 23L |
| S9/1 | Stop lamp switch | 59L |
| W2 | Right front ground point (at lamp unit) | 50E |
| W3/2 | Left front wheel arch ground point | 51E |
| W34 | Left footwell ground point | 25E |
| W70 | Electronic Stability Program ground point | 9E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 22H |
| X18/7 | Vehicle interior and engine compartment electrical connector | 42E |
| X223 | Vacuum pump electrical connector | 49E |
| X223 | Vacuum pump electrical connector | 52E |
| X62/32 | Rear axle electrical connector, left distributor | 30H |
| X62/32 | Rear axle electrical connector, left distributor | 40H |
| X62/33 | Rear axle electrical connector, right distributor | 32H |
| X62/33 | Rear axle electrical connector, right distributor | 38H |
| X62/6 | Front axle electrical connector, right distributor | 34H |
| X62/7 | Front axle electrical connector, left distributor | 36H |
| Z6z4 | Circuit 31 connector sleeve | 25G |
| Z81/5z1 | Cockpit terminal 58d connector sleeve | 20G |
