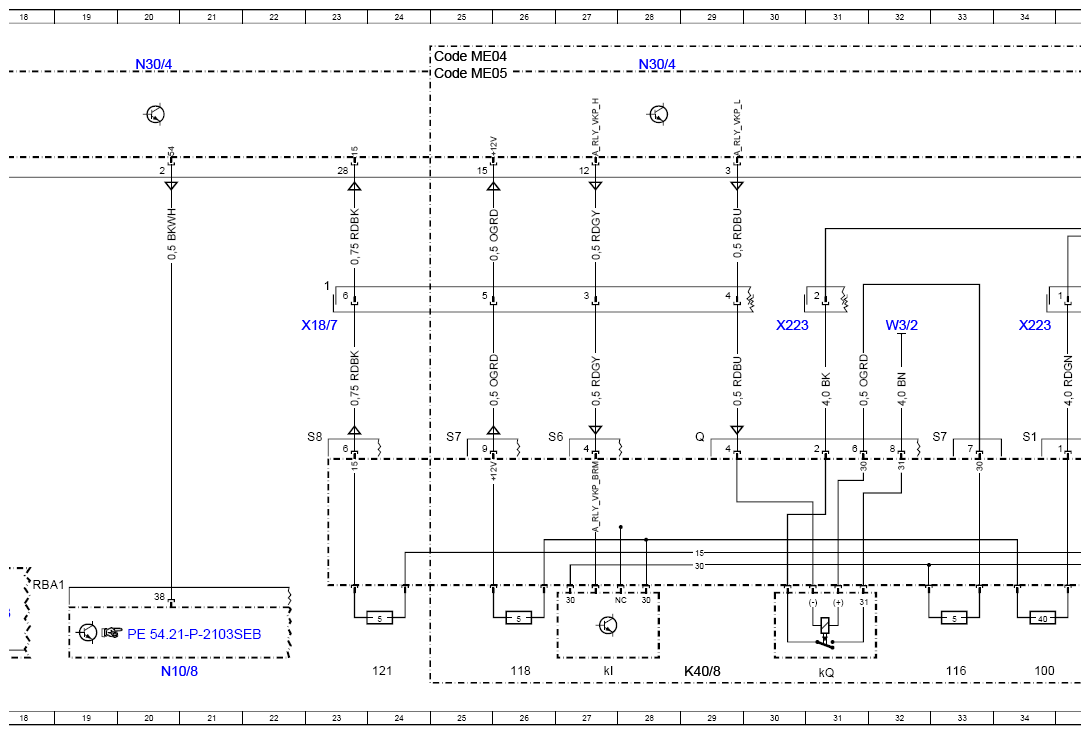

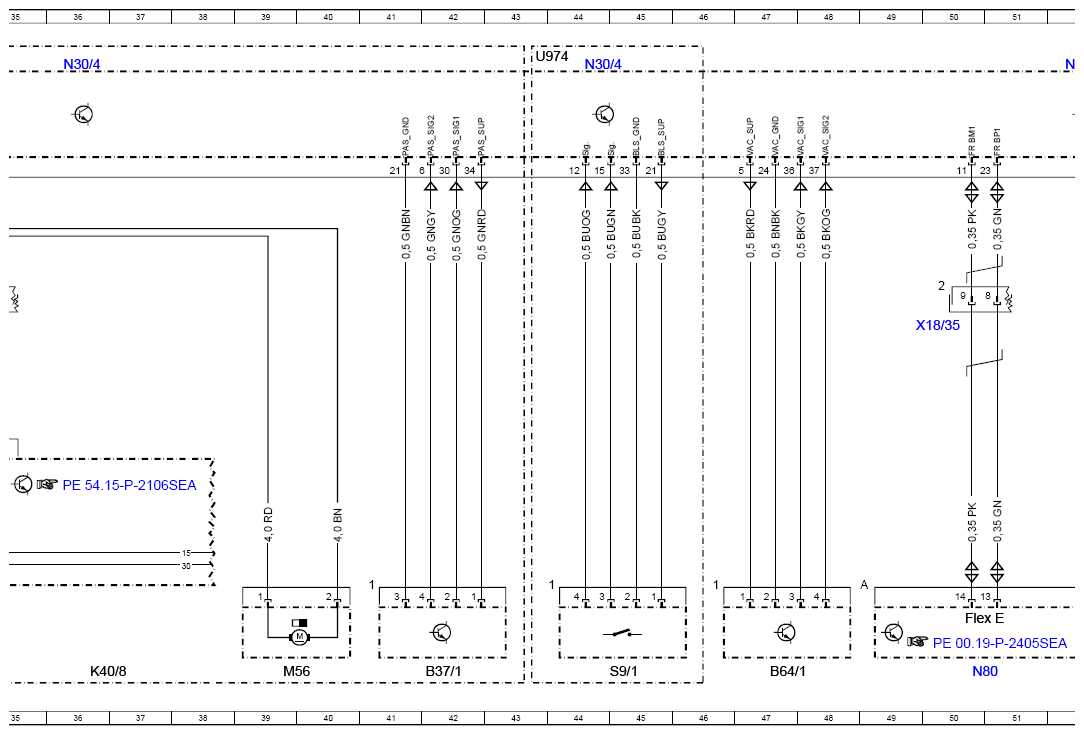

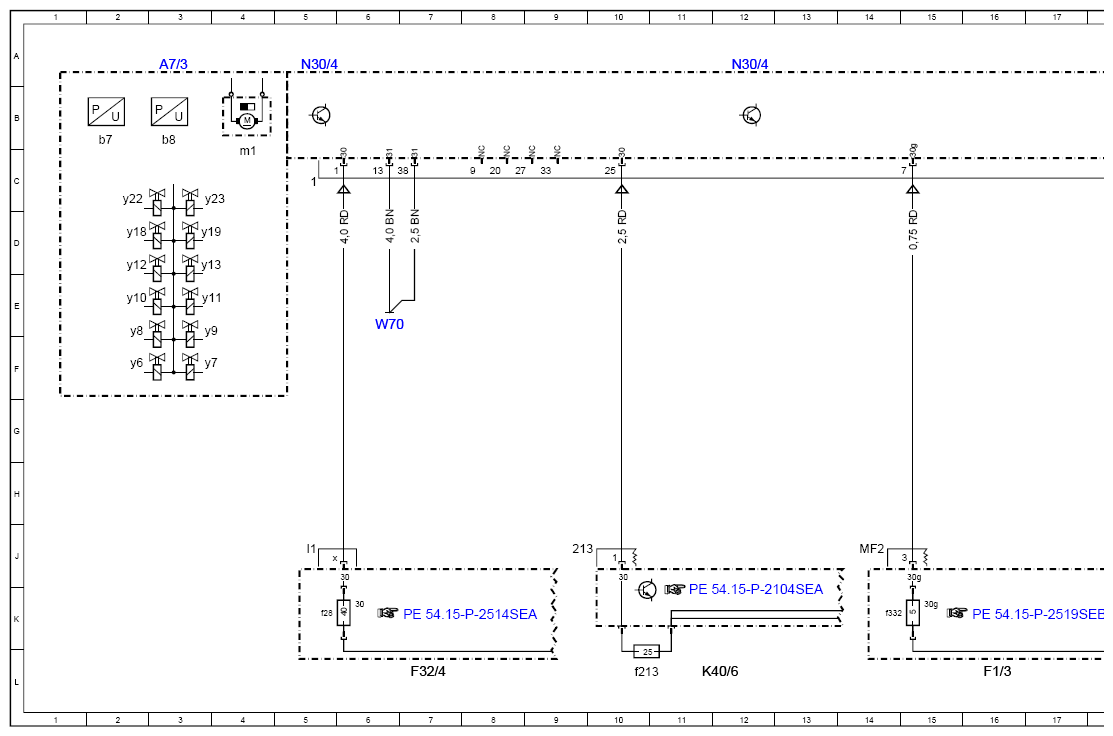

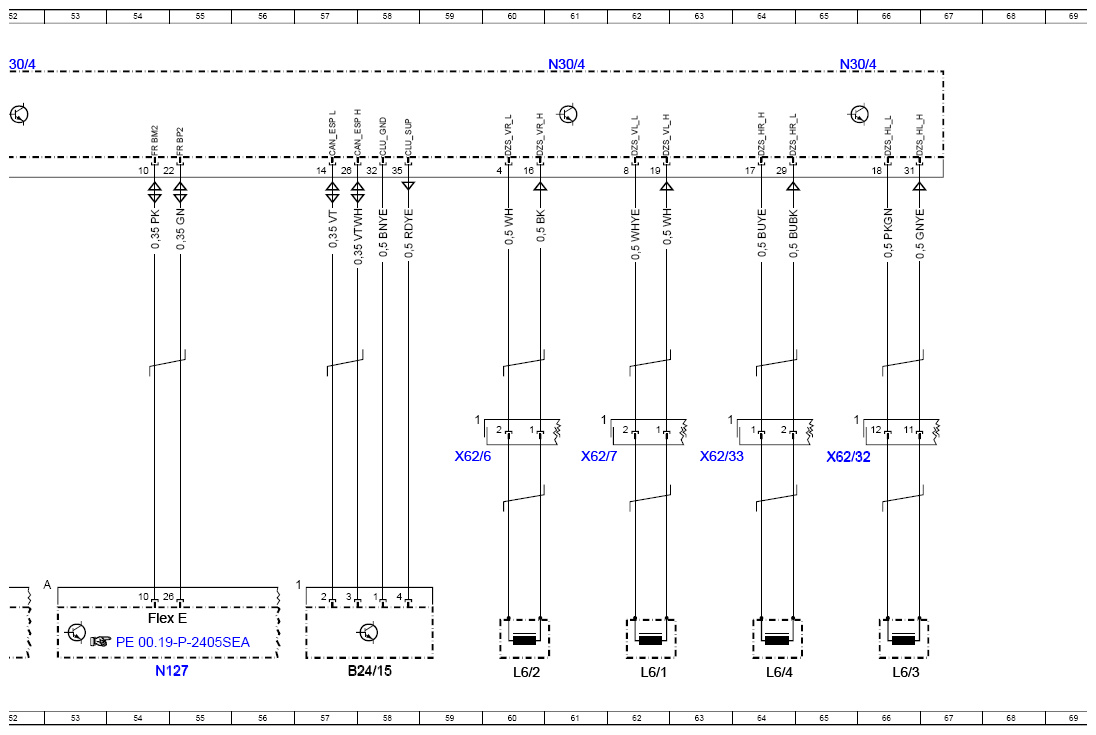

Wiring Diagram For Adaptive Brake (ABR) - PE42.47-P-2000-97SEA
Model 217 up to model year 2018 Control unit N30/4
Model 222 up to model year 2018 Control unit N30/4
| Code: | Designation: | Position: |
|---|---|---|

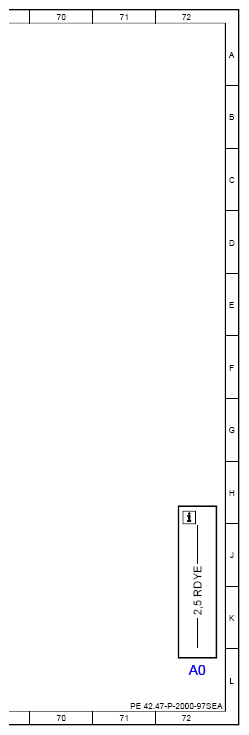

| A0 | Use of wiring diagrams | 72L |
| A7/3 | Traction system hydraulic unit | 3A |
| A7/3b7 | Front pressure sensor | 2B |
| A7/3b8 | Rear pressure sensor | 3B |
| A7/3m1 | High pressure and return pump | 4C |
| A7/3y10 | Left rear pressure regulator valve (pressure hold) | 2E |
| A7/3y11 | Left rear pressure regulator valve (pressure release) | 3E |
| A7/3y12 | Right rear pressure regulator valve (pressure hold) | 2D |
| A7/3y13 | Right rear pressure regulator valve (pressure release) | 3D |
| A7/3y18 | Front axle switchover valve | 2D |
| A7/3y19 | Rear axle switchover valve | 3D |
| A7/3y22 | Front axle intake ball valve | 2C |
| A7/3y23 | Rear axle intake ball valve | 3C |
| A7/3y6 | Left front pressure regulator valve (pressure hold) | 2F |
| A7/3y7 | Left front pressure regulator valve (pressure release) | 3F |
| A7/3y8 | Right front pressure regulator valve (pressure hold) | 2E |
| A7/3y9 | Right front pressure regulator valve (pressure release) | 3E |
| B24/15 | Yaw rate sensor for lateral and longitudinal acceleration | 58L |
| B37/1 | Pedal angle sensor | 42L |
| B64/1 | Brake vacuum sensor | 47L |
| Code ME04 | Mild hybrid drive | 25A |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 25A |
| F1/3 | Right A-pillar fuse box | 16L |
| F1/3f332 | Fuse 332 | 14K |
| F32/4 | Vehicle interior prefuse box | 7L |
| F32/4f28 | Fuse 28 | 5K |
| Flex E | Chassis FlexRay | 50K |
| Flex E | Chassis FlexRay | 54K |
| K40/6 | Left fuse and relay module | 11L |
| K40/6f213 | Fuse 213 | 10L |
| K40/8 | Engine fuse and relay module | 36L |
| K40/8 | Engine fuse and relay module | 29L |
| K40/8f100 | Fuse 100 | 34L |
| K40/8f116 | Fuse 116 | 33L |
| K40/8f118 | Fuse 118 | 26L |
| K40/8f121 | Fuse 121 | 24L |
| K40/8kI | Brake vacuum pump relay | 27L |
| K40/8kQ | Vacuum pump relay | 31L |
| L6/1 | Left front axle rpm sensor | 62L |
| L6/2 | Right front axle rpm sensor | 60L |
| L6/3 | Left rear axle rpm sensor | 66L |
| L6/4 | Right rear axle rpm sensor | 64L |
| M56 | Vacuum pump | 39L |
| N10/8 | Rear SAM control unit | 20L |
| N127 | Drivetrain control unit | 54L |
| N30/4 | Electronic Stability Program control unit | 5A |
| N30/4 | Electronic Stability Program control unit | 12A |
| N30/4 | Electronic Stability Program control unit | 20A |
| N30/4 | Electronic Stability Program control unit | 28A |
| N30/4 | Electronic Stability Program control unit | 36A |
| N30/4 | Electronic Stability Program control unit | 44A |
| N30/4 | Electronic Stability Program control unit | 52A |
| N30/4 | Electronic Stability Program control unit | 65A |
| N30/4 | Electronic Stability Program control unit | 61A |
| N80 | Steering column module control unit | 50L |
| S9/1 | Stop lamp switch | 45L |
| U974 | Not valid for hybrid drive | 43A |
| W3/2 | Left front wheel arch ground point | 32E |
| W70 | Electronic Stability Program ground point | 6E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 50E |
| X18/7 | Vehicle interior and engine compartment electrical connector | 23E |
| X223 | Vacuum pump electrical connector | 30E |
| X223 | Vacuum pump electrical connector | 34E |
| X62/32 | Rear axle electrical connector, left distributor | 65H |
| X62/33 | Rear axle electrical connector, right distributor | 63H |
| X62/6 | Front axle electrical connector, right distributor | 59H |
| X62/7 | Front axle electrical connector, left distributor | 61H |
