Inspect Condition Of Brake Disks - AP42.10-P-4258CC
Model 217
with code B07 (AMG - ceramic brake system)
Shown on model 223.063

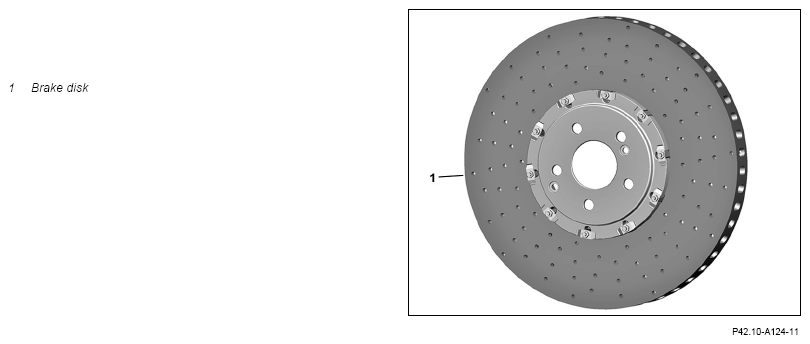

3-piece, internally ventilated, drilled compound brake disk with ceramic friction ring and aluminum pan
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury from engine start by remote start function | Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes | AS00.00-Z-0024-01A | |
| Notice | Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | |
| Notice | Notes on handling, transport and storage of ceramic brake disks | AH42.10-P-9406-13A | |
| Remove | |||
| 1 | Remove wheel and tire assemblies. | ||
| AR40.10-P-1102A | |||
| Check | |||
| 2 | Check ceramic friction rings for contamination. | If ceramic friction ring is contaminated by oil or grease, ↓ replace brake disks (1) per axle. |
|
| 3 | Check ceramic friction rings for damage. | ||
If the brake disk (1) exhibits damage that makes replacement necessary, ↓ replace brake disks (1) per axle. |
AR42.10-P-0290-01RG | ||
| Risk of injury to skin and eyes from laser beams | Never look directly into the laser beam. Do not attempt to suppress natural reflex of closing the eyelids. Avoid direct skin contact with the laser beam. If damage to the eye is suspected, consult an eye specialist immediately. |
AS30.30-Z-0001-01A | |
| 4 | Check ceramic friction rings for wear. | ||
| If ceramic friction ring is worn, ↓ replace brake disks (1) per axle. |
AR42.10-P-0264-01LF | ||
| Install | |||
| 5 | Install wheel and tire assemblies. | ||
| AR40.10-P-1102A |
