Replace Brake Hoses - AR42.10-P-0013LF

Model 217, 222

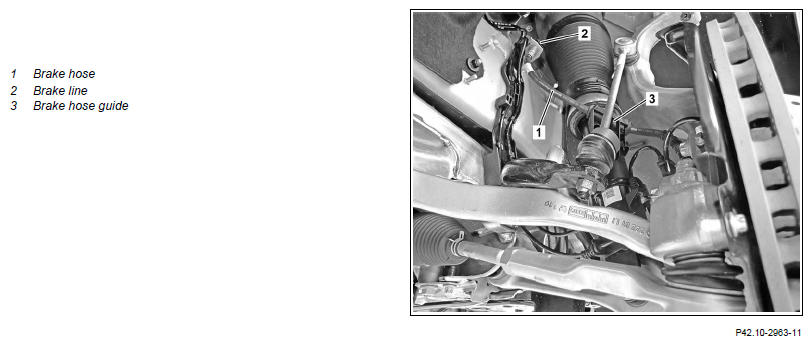

Shown on MODEL 222 - front axle brake hose

Courtesy of MERCEDES-BENZ USA

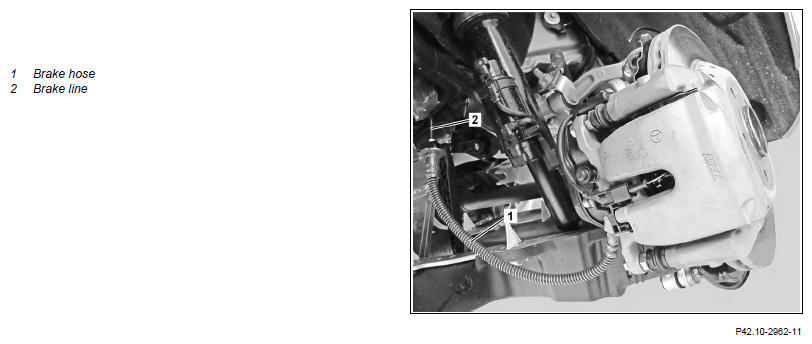

Shown on MODEL 222 - rear axle brake hose

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
Topical note	Notes on repairs to brake system		AH42.00-P-0003-01A
Topical note	Brake fluid notes		AH42.50-P-0001-01A
Topical note	Notes on installing brake hoses		AH42.10-P-9406-01A
	Remove/install
1	Detach corresponding complete wheel		AR40.10-P-1102A
2	Detach brake line (2) from brake hose (1)	Seal the opening on the brake line (2) immediately using a stop plug. Otherwise the expansion reservoir for brake fluid may run dry, which could lead to problems with the bleeding procedure.
		MODEL 217, 222 Retaining screw, brake line to brake hose	*BA42.10-P-1001-04N
		Record plug	Fig 3
		Box wrench bit	Fig 2
3	Unclip brake hose (1) from brake hose guide (3)	When replacing brake hoses (1) on front axle
4	Detach brake hose (1) from brake caliper and remove	MODEL 217, 222 Brake hose to fixed or floating caliper	*BA42.10-P-1002-04N
		Box wrench	Fig 1
		Box wrench bit	Fig 2
5	Install in the reverse order
6	Bleed brake system		AR42.10-P-0010LF
7	Check brake system for leaks		AR42.10-P-0100-01V

Fig 1: Identifying Box Wrench (000 589 76 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Box Wrench Bit (000 589 75 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
