Removing And Installing Brake Fluid Reservoir - AR42.10-P-0301LF
Model 217, 222
Shown on MODEL 222.057
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Topical note | Notes on externally invisible brake fluid loss | AH42.10-P-9406-02A | |
| Topical note | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Topical note | Brake fluid notes | AH42.50-P-0001-01A | |
| Remove/install | |||
| 1 | Remove cover above hydraulic fluid reservoir for brake fluid (7) | ||
| Clean | |||
| 2 | Clean area surrounding cap of hydraulic fluid reservoir for brake fluid (7) | ||
| 3 | Unscrew cap of hydraulic fluid reservoir for brake fluid (7) and extract brake fluid | ||
| 4 | Detach electrical connection (8) from brake fluid level switch | ||
| 5 | Detach feed hose (6) from hydraulic fluid reservoir for brake fluid (7) | MODEL 222.004/057/104/157 Otherwise damage can occur to the vehicle paint. |
|

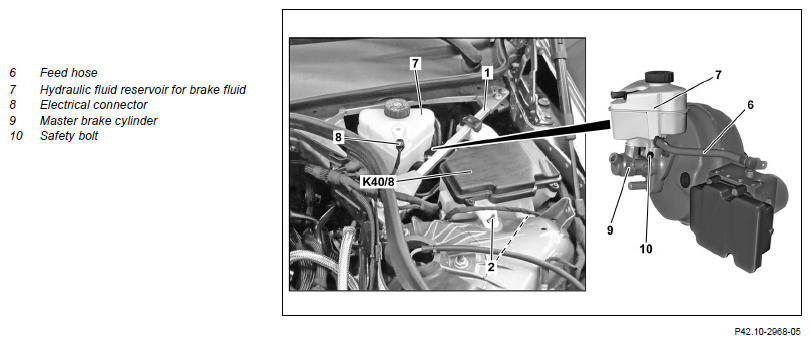

| Fig 2 | |||
| 6 | Remove safety bolt (10) | ||
| 7 | Pull hydraulic fluid reservoir for brake fluid (8) out of master brake cylinder (9) | Otherwise the vehicle paint may be damaged. |
|
| 8 | Seal connections on master brake cylinder (9) | Fig 2 | |
| 9 | Install in the reverse order | ||
| 10 | Bleed brake system | MODEL 222.004/057/104/157 | AR42.10-P-0010LF |
| Check | |||
| 11 | Check brake system in area of hydraulic fluid reservoir for brake fluid (7) for leak tightness | ||
| 12 | Check fluid level in hydraulic fluid reservoir for brake fluid (7) | ||
| AP42.10-P-4210HA |
