Carrying Out Bleeding Operation - AR42.10-P-0010-02RK

Model 190, 217, 222, 231

MODIFICATION NOTES

31.08.2012 Bleed screw on the brake caliper   BA42.10-P-1005-10U
FRONT AXLE BRAKE CALIPER

Number Designation MODEL 217.377/378/379/477/479 with CODE B07 MODEL 217.377/378/379/477/479 except CODE B07
BA42.10-P-1002-10V Bleed screw on brake caliper Nm 18 18
FRONT AXLE BRAKE CALIPER

Number Designation Model 217.364/382/384/385/482 MODEL 222.067/082/085/163/165/167/967, MODEL 222.004/032/033/057/104/123/132/133/157 with CODE 950/951, MODEL 222.176/182/184/185/976/982/984/985 except CODE Z07
BA42.10-P-1002-10V Bleed screw on brake caliper Nm 18 18
FRONT AXLE BRAKE CALIPER

Number Designation MODEL 222.004/032/033/057/104/123/132/133/157 except CODE 950/951, MODEL 222.162/188 MODEL 222.077, MODEL 222.177/178/179 except CODE B07
BA42.10-P-1002-10V Bleed screw on brake caliper Nm 18 18
FRONT AXLE BRAKE CALIPER

Number Designation MODEL 222.176/182/184/185/976/982/984/985 with CODE Z07, MODEL 222.177/178/179 with CODE B07
BA42.10-P-1002-10V Bleed screw on brake caliper Nm 18
REAR AXLE BRAKE CALIPER

Number Designation Model 217 Model 222
BA42.10-P-1002-12J Bleed screw to brake caliper Nm 18 18
REAR AXLE BRAKE CALIPER

Number Designation Model 231
BA42.10-P-1002-12J Bleed screw to brake caliper Nm 18
FRONT AXLE BRAKE CALIPER

Number Designation MODEL 190 with CODE B06 MODEL 190 with CODE B07
BA42.10-P-1003-10T Bleed screw to brake caliper Nm 18 18
FRONT AXLE BRAKE CALIPER

Number Designation MODEL 190 with CODE U70
BA42.10-P-1003-10T Bleed screw to brake caliper Nm 18
REAR AXLE BRAKE CALIPER

Number Designation Model 190
BA42.10-P-1003-12T Bleed screw to brake caliper Nm 18
FRONT AXLE BRAKE CALIPER

Number Designation Model 231.457/473 Model 231.465
BA42.10-P-1005-10U Bleed screw on brake caliper Nm 18 18
FRONT AXLE BRAKE CALIPER

Number Designation MODEL 231.474 except CODEB07 MODEL 231.474 with CODE B07
BA42.10-P-1005-10U Bleed screw on brake caliper Nm 18 18
FRONT AXLE BRAKE CALIPER

Number Designation MODEL 231.479 except CODEB07 MODEL 231.479 with CODE B07
BA42.10-P-1005-10U Bleed screw on brake caliper Nm 18 18

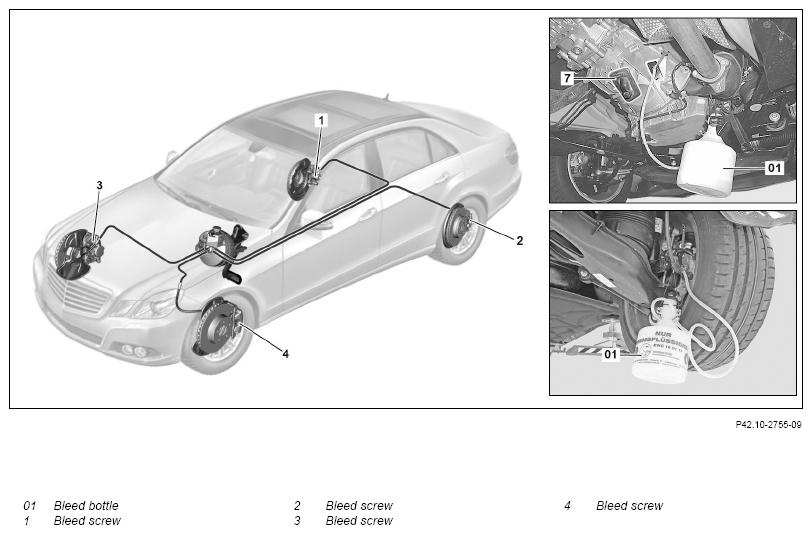

Shown here is the opening sequence for the bleed screws on vehicles without CODE B07 (AMG ceramic high-performance composite brake system)

G15352019Courtesy of MERCEDES-BENZ USA

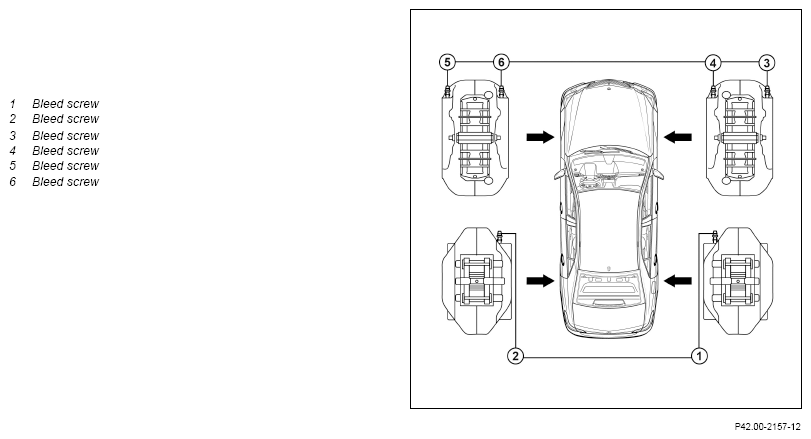

Illustration shows the opening sequence for the bleed screws on model 190 and on vehicles with CODE B07 (AMG ceramic high-performance composite brake system)

G15352020Courtesy of MERCEDES-BENZ USA
  1. Set bleeding pressure on filling and bleeding unit to 2.0 bar.
  2. Remove caps for bleed screws on brake calipers (1, 2, 4, 6).
  3. Model 190

    Model 217, 222, 231

    with code B07 (Ceramic brake system)

    Remove caps for bleed screws on brake calipers (3, 5).

  4. Connect bleed hose of bleed bottle (01) to bleed screw of brake caliper (1).
  5. Open bleed screw (1).
    1. To bleed the hydraulic system of the brake system after the hydraulic system has been opened for repair purposes.

      Fully depress brake pedal repeatedly, until new bubble-free brake fluid flows out at the bleed screw (1).

      NOTES To bleeding the brake system correctly it is absolutely essential to pump the brake pedal throughout the entire bleeding process.

      Otherwise brake system malfunctions and a failure of the brake system can occur due to remaining residual air.

      IMPORTANT To prevent air from being drawn in, do not pump the brake pedal in a jerking manner but instead release it slowly.

      IMPORTANT The bleed screw (1) can remain open during the entire pumping process. Required total quantity of brake fluid: approx. 1.5 l.

    2. When replacing the brake fluid. The hydraulic system of the brake system was not previously opened for repair purposes.

      Keep bleed screw (1) open until new brake fluid flows out.

      IMPORTANT Pumping of the brake pedal is not necessary.

      Required total quantity of brake fluid: approx. 0.75 l.

  7. Detach bleed hose of bleed bottle (01) from bleed screw of brake caliper (1).
  8. Close bleed screw (1).
  9. Repeat operation steps 4 to 8 on remaining bleed screws (2, 4, 6).
  10. Model 190

    Model 217, 222, 231

    with code B07 (Ceramic brake system)

    Repeat operation steps 4 to 8 on remaining bleed screws (3, 5).

  11. Fit caps for bleed screws on brake calipers (1, 2, 4, 6).
  12. Model 190

    Model 217, 222, 231

    with code B07 (Ceramic brake system)

    Attach caps for bleed screws on brake calipers (3, 5).
