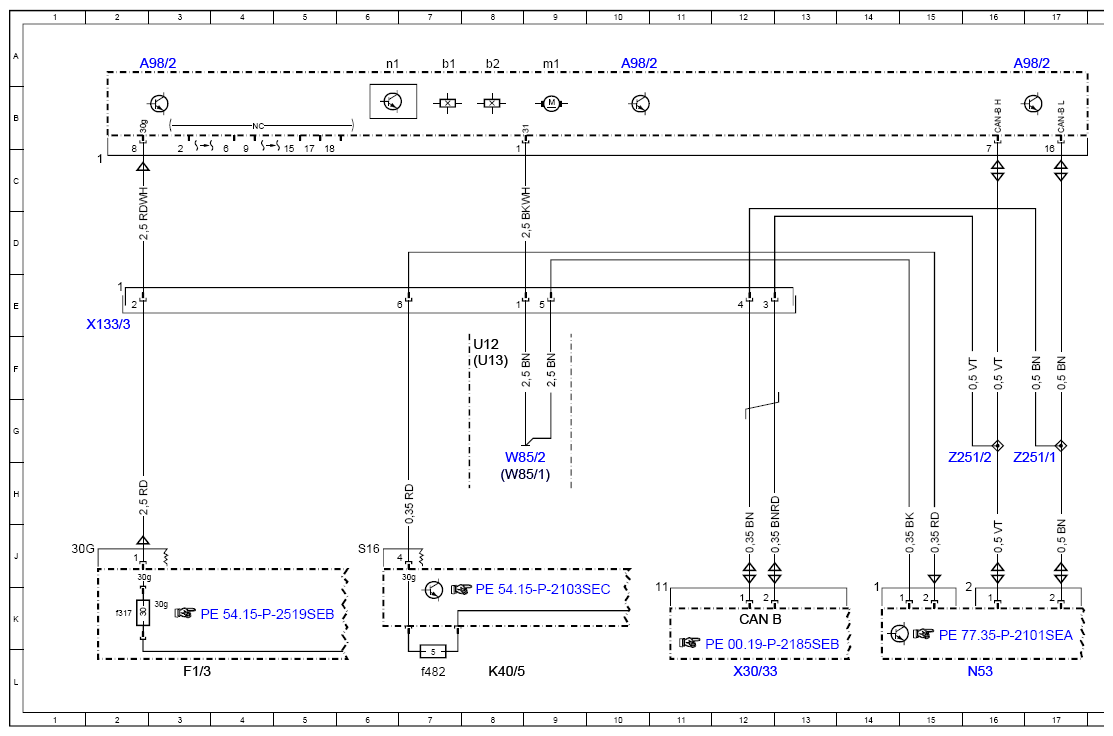

Panoramic Roof Roller Sun Blind Control Unit Wiring Diagram - PE77.21-P-2101-97SEB
Model 217 up to model year 2018 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Control unit A98/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| A98/2 | Panoramic roof roller sun blind control module | 10A |
| A98/2 | Panoramic roof roller sun blind control module | 16A |
| A98/2 | Panoramic roof roller sun blind control module | 3A |
| A98/2b1 | Hall sensor 1, panoramic roof roller sun blind | 7A |
| A98/2b2 | Hall sensor 2, panoramic roof roller sun blind | 8A |
| A98/2m1 | Panoramic roof roller sun blind motor | 9A |
| A98/2n1 | Panoramic roof roller sun blind control unit | 6A |
| CAN B | Interior CAN | 12K |
| F1/3 | Right A-pillar fuse box | 3L |
| F1/3f317 | Fuse 317 | 2K |
| K40/5 | Rear fuse and relay module | 8L |
| K40/5f482 | Fuse 482 | 7L |
| N53 | MAGIC SKY CONTROL control unit | 16L |
| U12 | Valid for left-hand drive vehicles | 8F |
| U13 | Valid for right-hand drive vehicles | 8F |
| W85/1 | Driver footwell frame floor assembly ground point | 8H |
| W85/2 | Front passenger footwell frame floor assembly ground point | 8H |
| X133/3 | MAGIC SKY CONTROL electrical connector | 2E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 12L |
| Z251/1 | MAGIC SKY CONTROL connector sleeve (CAN B low) | 17G |
| Z251/2 | MAGIC SKY CONTROL connector sleeve (CAN B high) | 16G |
