Prepare Wheel Well For Installation - Ar62.20-P-1200-19LF

Model 217

Model 222

except code Z07 (B7 armoring on special protection version)

The next steps are shown on the left side of the vehicle for model 222 and must be performed in the same way on the right side of the vehicle in the event of damage.

The higher-level service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

1. Grind mating surfaces on wheel well (1) down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces (areas A).

   Courtesy of MERCEDES-BENZ USA

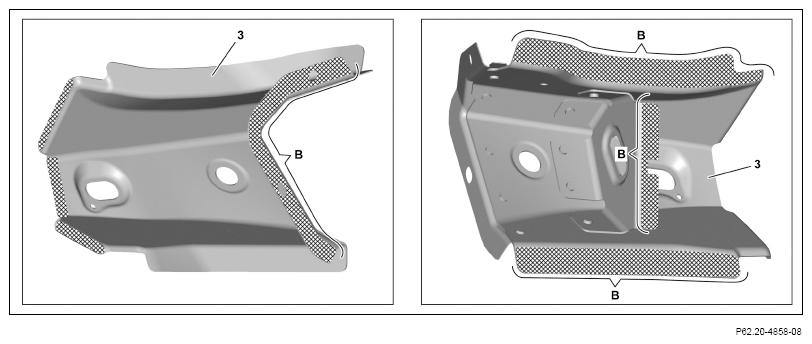

2. Grind mating surfaces on pedal floor panel (3) down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces (areas B).

3. Grind mating surfaces on connecting carrier (2) down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

4. Model 222

   except code Z07 (B7 armoring on special protection version)

   Grind mating surface down to bare metal and weld ground bolt (7) onto the wheel well (1).

   Dimensions:

   m₁ = approx. 85 mm

   m₂ = approx. 25 mm
