Partially Install Upper Front Longitudinal Member - Ar62.20-P-1287-03LF

MODEL 217, 222

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

1. Install upper front longitudinal member (1), fit and fix in place.

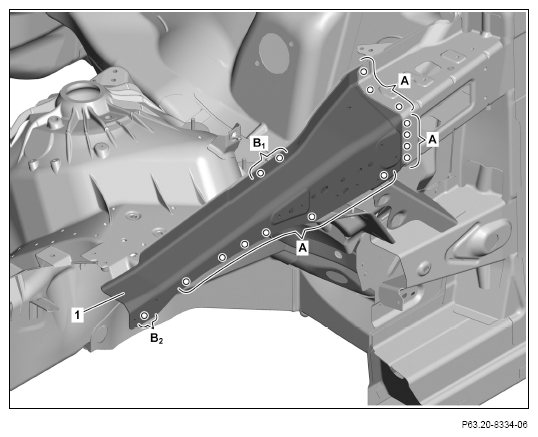

2. Drill Ø 6.7 mm rivet holes in upper front longitudinal member (1) (areas A and B₁ ).

   Transfer position of present holes in body to new part (area B₁ ).

3. Drill Ø 6.7 mm rivet holes in upper front longitudinal member (1) (area B₂ ).

   Counter sink rivet hole to obtain a flat surface to allow fender to be adjusted later, if required.

   Transfer position of present rivet hole in body to new part.

   Shown on MODEL 222

   Courtesy of MERCEDES-BENZ USA

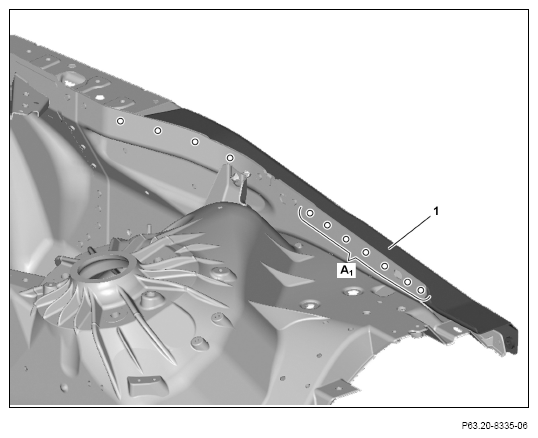

4. Drill Ø 6.7 mm rivet holes in upper front longitudinal member (1) (area A₁ ).

   Only if a riveter for punch and flow form rivets is used for installation.

5. Drill Ø 6.7 mm rivet holes in upper front longitudinal member (1).
6. Remove upper front longitudinal member (1).
7. Deburr drill holes on upper front longitudinal member (1) and body on both sides.
8. Remove drilling chips.

   Shown on MODEL 222

   Courtesy of MERCEDES-BENZ USA

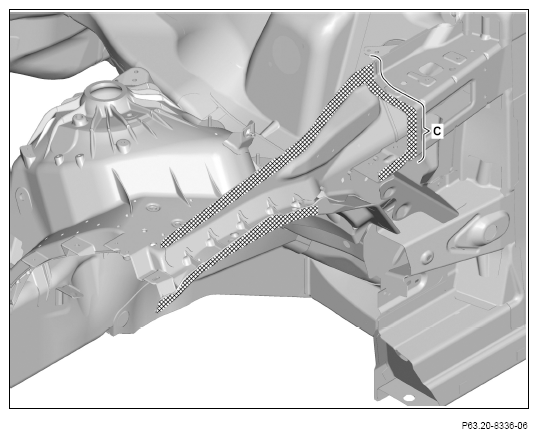

9. Apply 2-component adhesive to body in crosshatched areas.

   Apply 2-component adhesive to inside (area C).

   Shown on MODEL 222

   Courtesy of MERCEDES-BENZ USA

10. Install upper front longitudinal member (1) and fix in place.

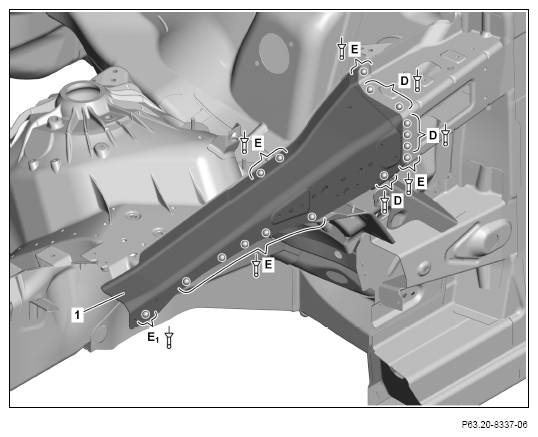

11. Rivet upper front longitudinal member (1) with Ø 6.4x14 countersunk head rivet (areas E₁ ).
12. Rivet upper front longitudinal member (1) with Ø 6.5x14.5 rivets (areas E).
13. Rivet upper front longitudinal member (1) with Ø 6.5x12.5 rivets (areas D).

    Shown on MODEL 222

    Courtesy of MERCEDES-BENZ USA

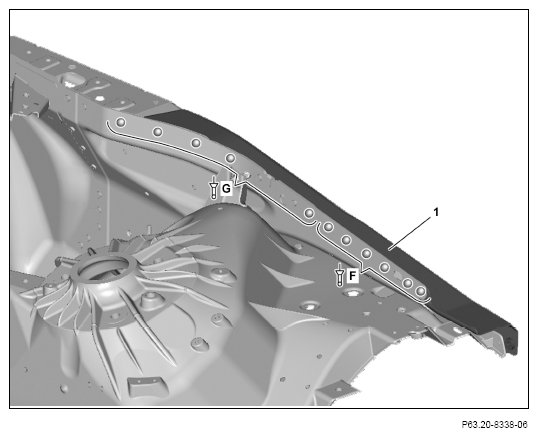

14. Rivet upper front longitudinal member (1) with Ø 6.5x14.5 rivets (area G).
15. Rivet upper front longitudinal member (1) with Ø 6.5x12.5 rivet (area F).

    Flow form rivets with a clamping range of 3.35 mm to 4.1 "S2" can be used, if a riveter for punching and flow form rivets is used for installation.

    Shown on MODEL 222

    Courtesy of MERCEDES-BENZ USA

16. Install strut (2), fit and fix in place.

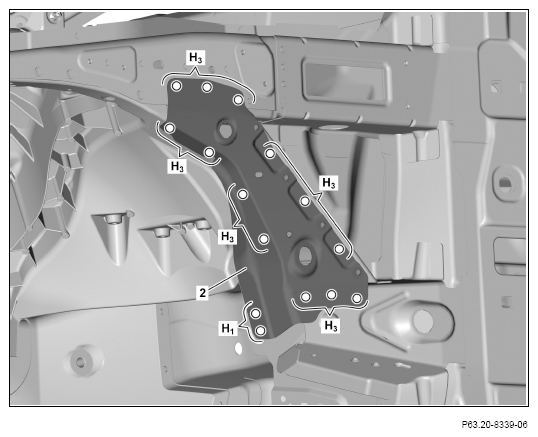

17. Drill Ø 6.7 mm rivet holes in strut (2) (area H₁ ).

    Only if riveter for punch and flow form rivets is used for installation.

    Drill rivet holes from rear through present rivet holes in body.

18. Drill Ø 6.7 mm rivet holes in strut (2) (areas H₃ ).
19. Remove strut (2).
20. Drill rivet holes in strut (2) and deburr on body on both sides.
21. Remove drilling chips.

    Courtesy of MERCEDES-BENZ USA

    Shown on MODEL 222

22. Apply 2-component adhesive to body in crosshatched areas.

    Observe pretreatment of bonding surfaces. Observe manufacturer's specifications for drying and processing time of adhesive.

    Shown on MODEL 222

    Courtesy of MERCEDES-BENZ USA

23. Install strut (2) and fix in place.
24. Rivet strut (2) with Ø 6.5x14.5 rivets (areas I).
25. Rivet strut (2) with Ø 6.5x12.5 rivets (areas H and H₂ ).

    Flow form rivets with a clamping range of 3.35 mm to 4.1 "S2" can be used, if a riveter for punching and flow form rivets is used for installation (area H₂ ).

    Shown on MODEL 222

    Courtesy of MERCEDES-BENZ USA
