Install And Weld In Wheel Well - Ar62.20-P-1200-17LF

Model 217

Model 222

except code Z07 (B7 armoring on special protection version)

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

When MIG welding ( ) prepare welds by grinding down to bare metal with stainless steel brush. Tack weld seams at start and end. Weld seam gap should not be greater than 1 mm, if required, preweld.

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 222 with CODE Z07 (Top protection)

1. Install wheel well (1) with straightening tool, fit and fix in place.
2. Install pedal floor panel (3) and connecting carrier (2), fit and fix in place.
3. Drill Ø 6.7 mm rivet holes in connecting carrier (2) (areas A).

   Courtesy of MERCEDES-BENZ USA

   Shown on MODEL 222 with CODE Z07 (Top protection)

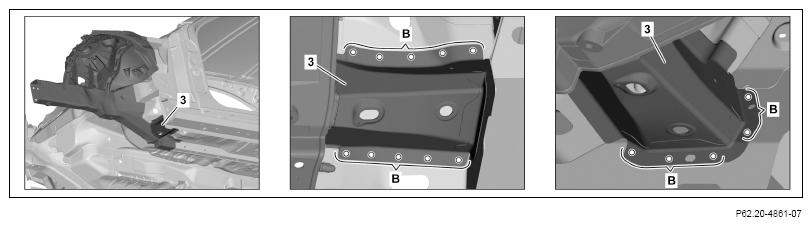

4. Drill Ø 6.7 mm rivet holes in pedal floor panel (3) (areas B).
5. Remove pedal floor panel (3).
6. Deburr rivet holes on pedal floor panel (3) and body on both sides.
7. Remove drilling chips.

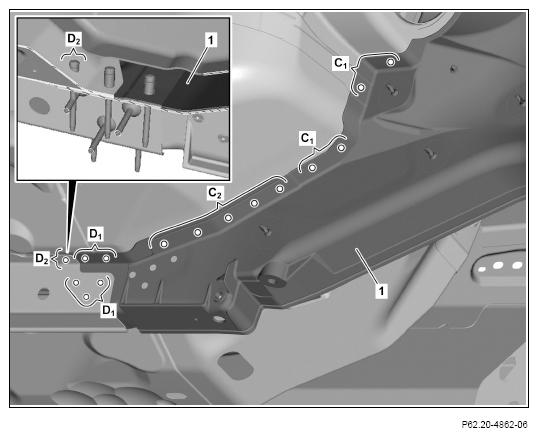

8. Drill Ø 6.7 mm rivet holes in wheel well (1) (areas C₁ , C₂ , D₁ and D₂ ).

   Drill rivet hole through main floor reinforcement so that the rivet can be inserted completely (area D₂ ).

   Shown on MODEL 222 with CODE Z07 (Top protection)

   Courtesy of MERCEDES-BENZ USA

9. Drill Ø 6.7 mm rivet holes in wheel well (1) (areas E₁ , E₂ , F₁ , and F₂ ).

   Shown on MODEL 222 with CODE Z07 (Top protection)

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

   Shown on MODEL 222 with CODE Z07 (Top protection)

10. Mark rivet holes on wheel well (1) and drill with Ø 6.7 mm bit (area G).

    Dimensions:

    g₁ = approx. 45 mm

    g₂ = approx. 77 mm

    g₃ = approx. 106 mm

    g₄ = approx. 140 mm

11. Drill Ø 6.7 mm rivet holes in wheel well (1) (area H₁ ).

    Only if a riveter for punching and flow form rivets is not used for installation.

12. Drill Ø 6.7 mm rivet holes in wheel well (1) (area H₂ ).
13. Remove straightening tool and wheel well (1).
14. Deburr rivet holes on wheel well (1) and body on both sides.
15. Remove drilling chips.

    Shown on MODEL 222 with CODE Z07 (Top protection)

    Courtesy of MERCEDES-BENZ USA

16. Apply 2-component adhesive to body in crosshatched areas.

    Observe pretreatment of bonding surfaces. Observe manufacturer's specifications for drying and processing time of adhesive.

    Shown on MODEL 222 with CODE Z07 (Top protection)

    Courtesy of MERCEDES-BENZ USA

17. Apply 2-component adhesive to body in crosshatched areas.

    Observe pretreatment of bonding surfaces. Observe manufacturer's specifications for drying and processing time of adhesive.

    Shown on MODEL 222 with CODE Z07 (Top protection)

    Courtesy of MERCEDES-BENZ USA

18. Install wheel well (1) with straightening tool, fit and fix in place.
19. Rivet wheel well (1) with Ø with 6, 5x12.5 rivet (area I₁ ).

    Flow form rivets with a clamping range of 3.35 mm to 4.1 "S2" can be used, if a riveter for punching and flow form rivets is used for installation (area H2).

20. Rivet wheel well (1) with Ø with 6, 5x12.5 rivet (area I₂ ).

    Shown on MODEL 222 with CODE Z07 (Top protection)

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

    Shown on MODEL 222 with CODE Z07 (Top protection)

21. Rivet wheel well (1) with Ø 6.5x14.5 rivet (area K).

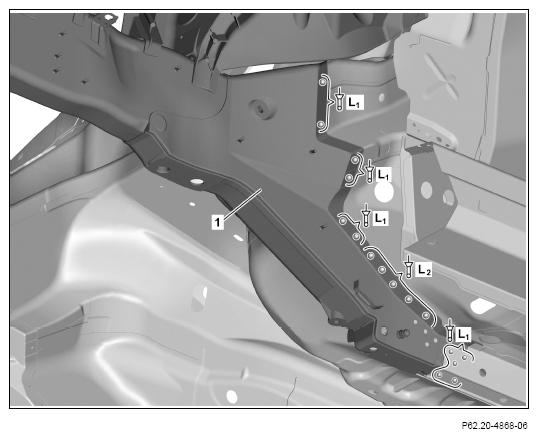

22. Rivet wheel well (1) with 6, 5x12.5 rivet (areas L₁ ).
23. Rivet wheel well (1) with Ø 6, 5x14.5 rivet (area L₂ ).

    Shown on MODEL 222 with CODE Z07 (Top protection)

    Courtesy of MERCEDES-BENZ USA

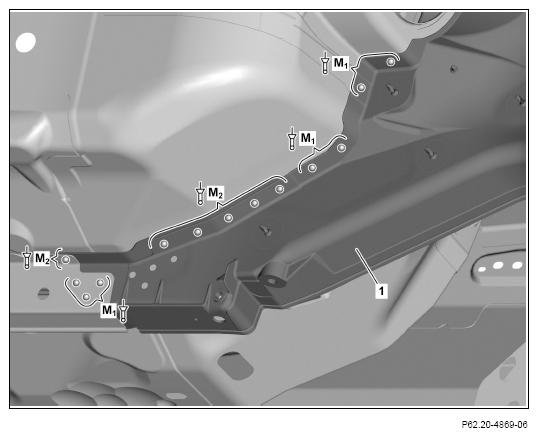

24. Rivet wheel well (1) with 6, 5x12.5 rivet (areas M₁ ).
25. Rivet wheel well (1) with 6, 5x14.5 rivet (areas M₂ ).

    Shown on MODEL 222 with CODE Z07 (Top protection)

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

    Shown on MODEL 222 with CODE Z07 (Top protection)

26. Apply 2-component adhesive to body in crosshatched areas.

    Observe pretreatment of bonding surfaces. Observe manufacturer's specifications for drying and processing time of adhesive.

27. Install pedal floor panel (3) and fix in place.

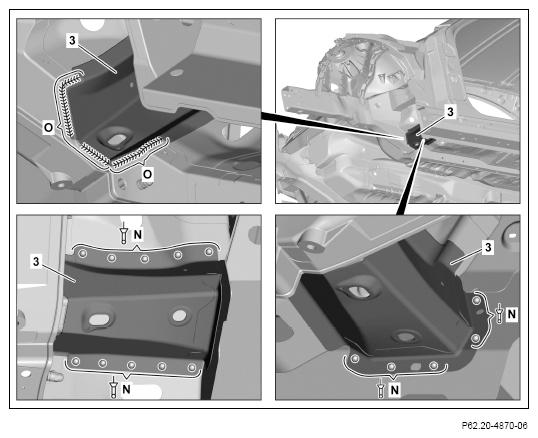

28. Rivet pedal floor panel (3) with 6.5x12.5 rivet (areas N).
29. Pedal floor panel (3) (areas O).

    Inert gas weld in intervals and allow to cool down in between. Reduces heat distortion.

    Shown on MODEL 222 with CODE Z07 (Top protection)

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

    Shown on MODEL 222 with CODE Z07 (Top protection)

30. Drill Ø 6.7 mm rivet holes in connecting carrier (2) (areas P).
31. Mark cutouts on connecting carrier (2) (areas Q).

    Rivets for installation of the wheel well are present in the area of the cutouts.

32. Remove connecting carrier (2).
33. Deburr rivet holes on connecting carrier (2) and body on both sides.
34. Make cutouts on connecting carrier (2) (areas Q).
35. Remove drilling chips.
36. Apply 2-component adhesive to body in crosshatched areas.

    Observe pretreatment of bonding surfaces. Observe manufacturer's specifications for drying and processing time of adhesive.

    Shown on MODEL 222 with CODE Z07 (Top protection)

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

    Shown on MODEL 222 with CODE Z07 (Top protection)

37. Install connecting carrier (2) and fix in place.
38. Rivet connecting carrier (2) with 6, 5x12.5 rivet (areas R₁ ).
39. Rivet connecting carrier (2) with Ø 6, 5x14.5 rivet (area R₂ ).

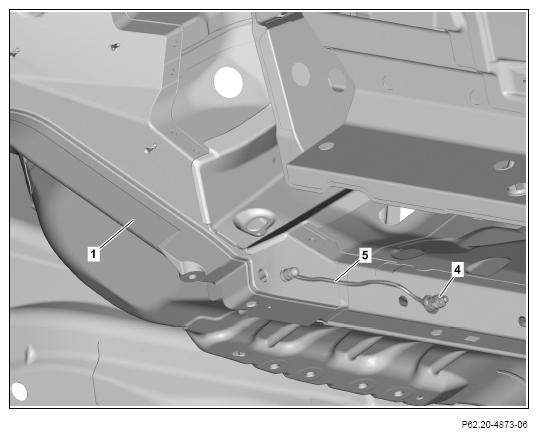

40. Weld ground bolt (4) to body and install ground line (5) between wheel well (1) and body.
