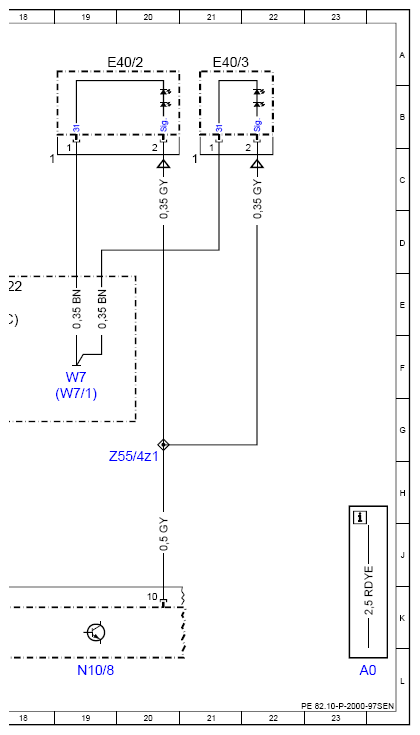

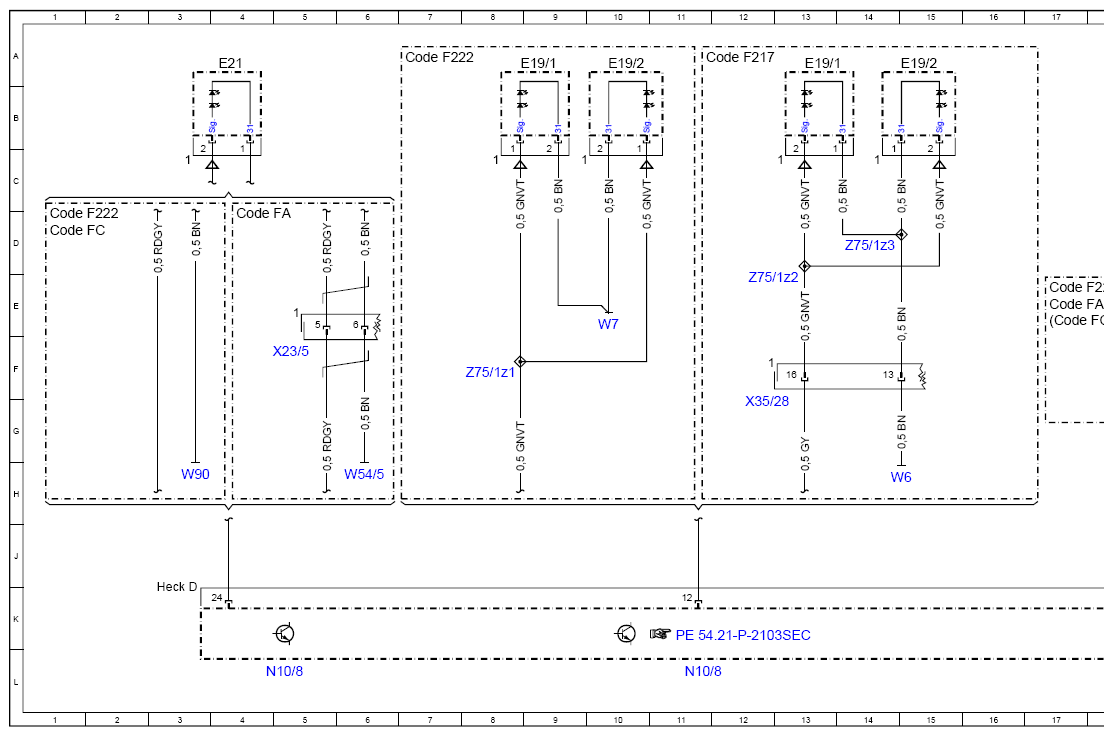

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97SEN
Model 217, 222 as of model year 2018
License plate lamps E19/1 and E19/2, center brake lamp E21
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| Code F217 | MODEL SERIES 217 | 11A |
| Code F222 | MODEL SERIES 222 | 7A |
| Code F222 | MODEL SERIES 222 | 17E |
| Code F222 | MODEL SERIES 222 | 1D |
| Code FA | CABRIOLET | 17E |
| Code FA | CABRIOLET | 4D |
| Code FC | COUPE | 17E |
| Code FC | COUPE | 1D |
| E19/1 | Left license plate lamp | 9A |
| E19/1 | Left license plate lamp | 13A |
| E19/2 | Right license plate lamp | 10A |
| E19/2 | Right license plate lamp | 15A |
| E21 | Center stop lamp | 4A |
| E40/2 | Left trunk lid/liftgate ambient lamp and warning lamp | 19A |
| E40/3 | Right trunk lid/liftgate ambient lamp and warning lamp | 21A |
| N10/8 | Rear SAM control unit | 5L |
| N10/8 | Rear SAM control unit | 11L |
| N10/8 | Rear SAM control unit | 19L |
| W54/5 | Right rear wheel well ground point | 6H |
| W6 | Left wheel arch trunk ground point | 14H |
| W7 | Right wheel house trunk ground point | 10E |
| W7 | Right wheel house trunk ground point | 19F |
| W7/1 | Right tail lamp trunk ground point | 19F |
| W90 | Additional brake lamp ground point | 3H |
| X23/5 | Electrical connector/soft top compartment lid | 5F |
| X35/28 | Rear bumper parking system electrical connector | 12G |
| Z55/4z1 | Connector sleeve, power supply for ambient and warning lamp in trunk lid | 20G |
| Z75/1z1 | License plate lamp connector sleeve | 8F |
| Z75/1z2 | License plate lamp connector sleeve | 13E |
| Z75/1z3 | License plate lamp connector sleeve | 14D |
