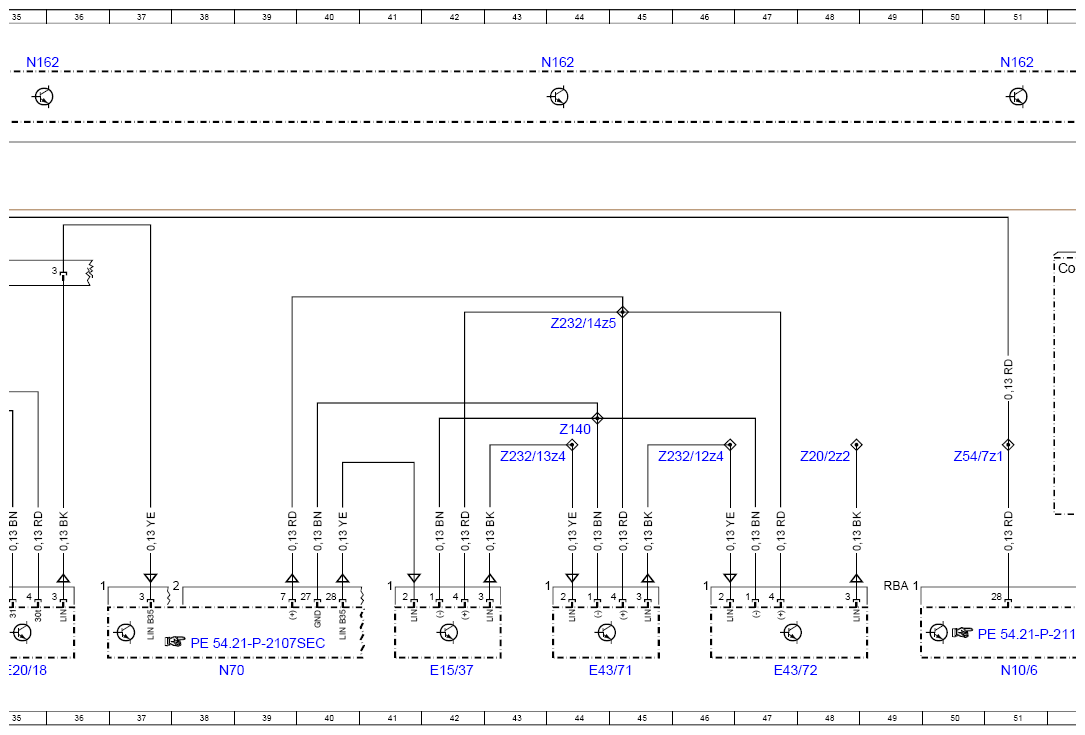

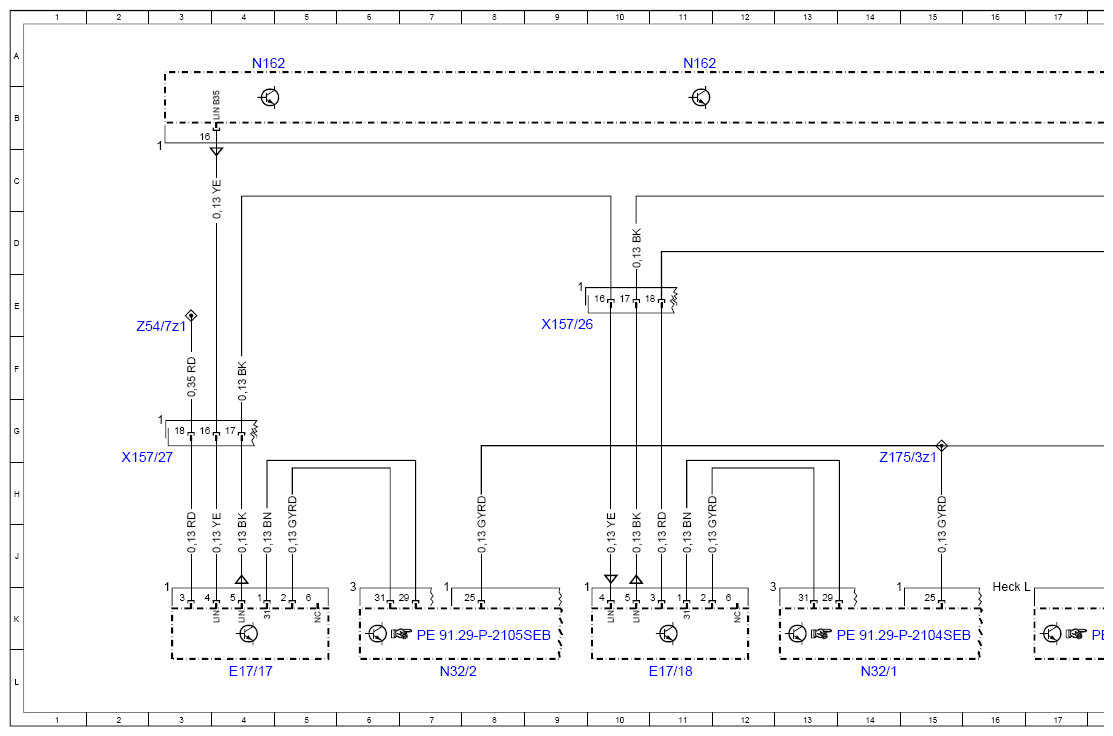

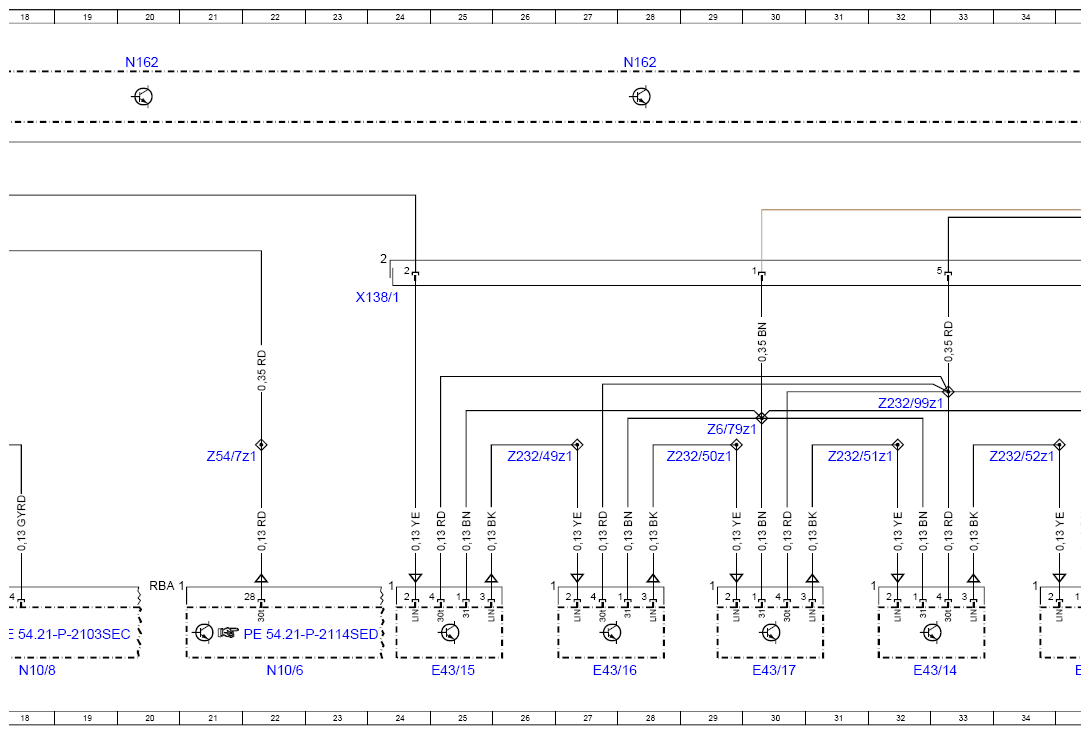

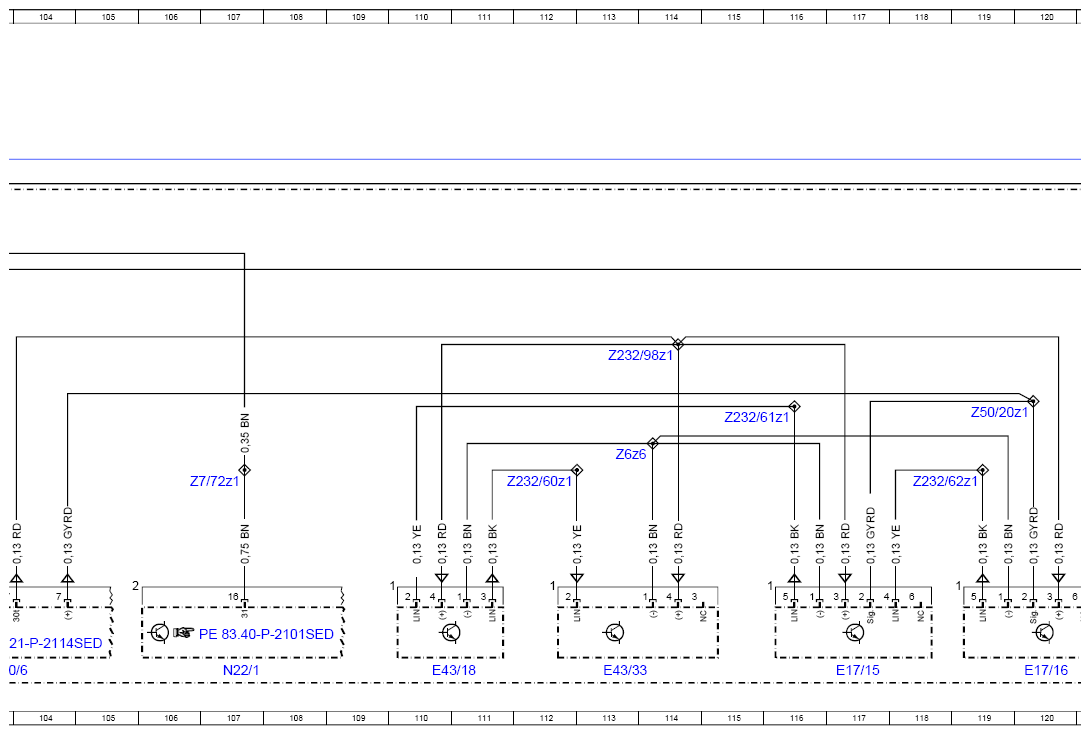

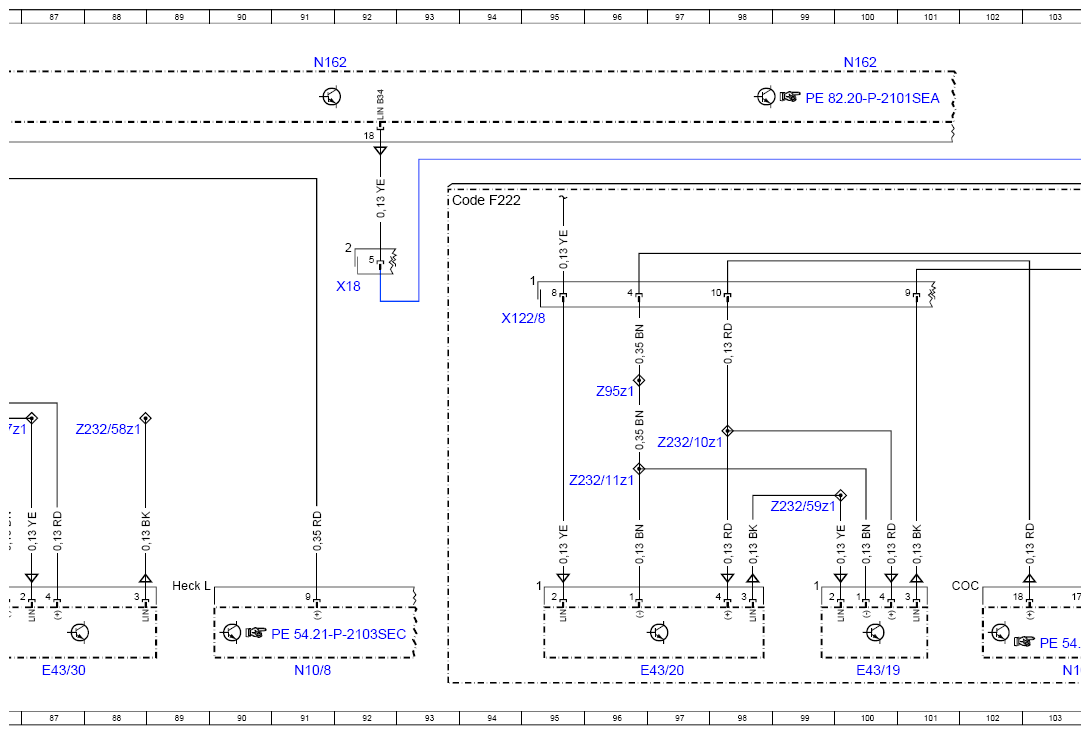

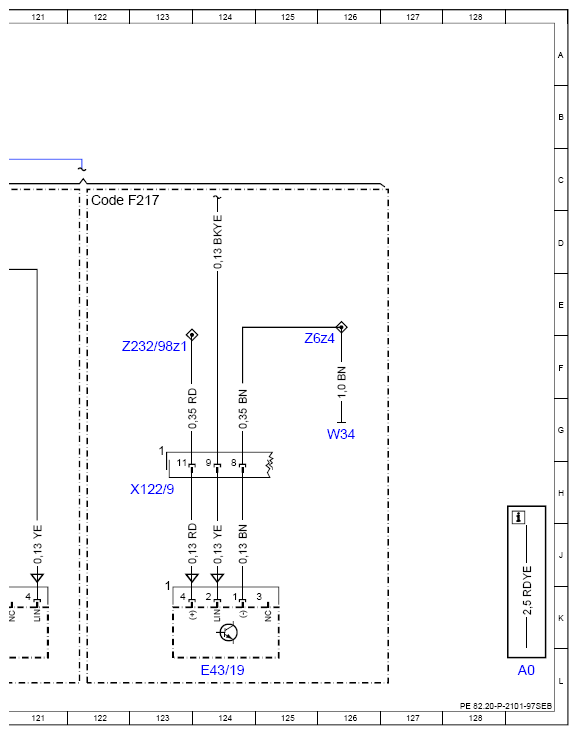

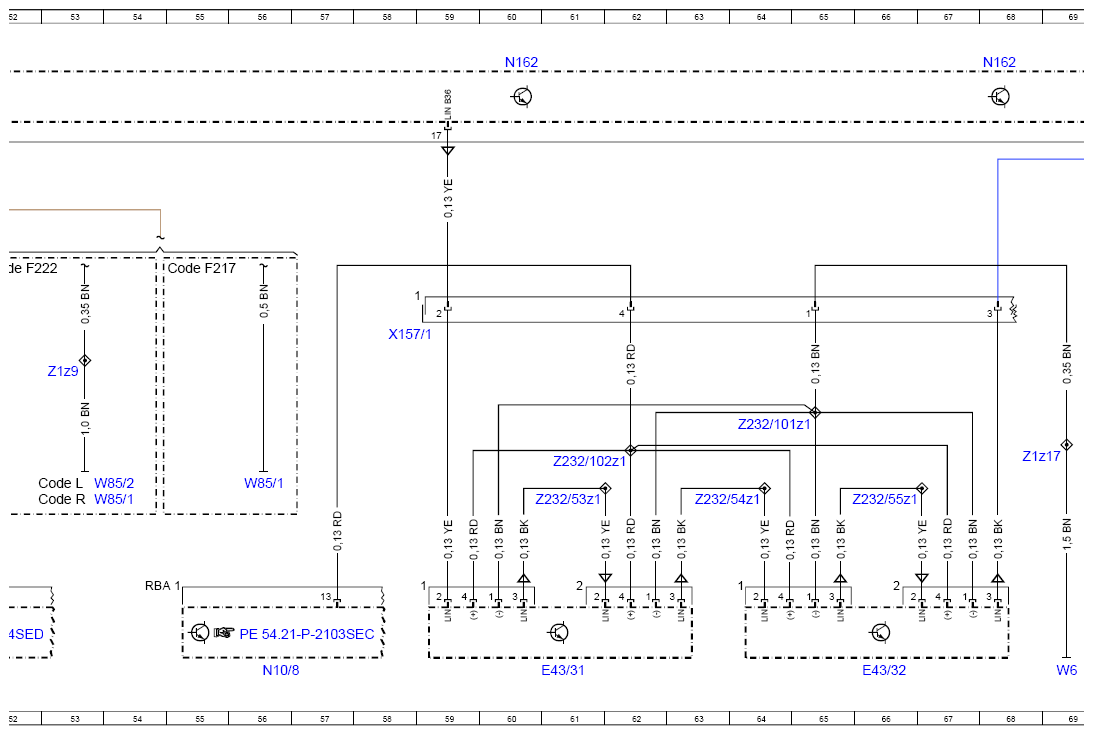

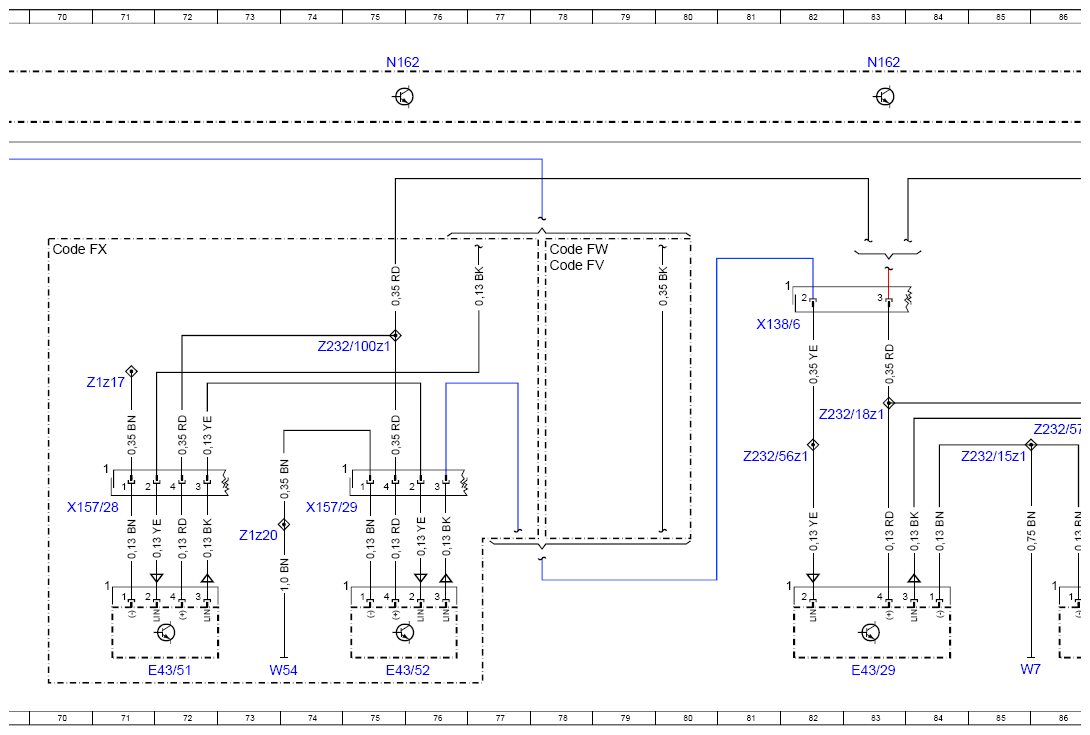

Wiring Diagram Of Ambiance Illumination Control Unit - PE82.20-P-2101-97SEB
Model 217, 222 as of model year 2018 with code 877 (Ambient lighting) Control unit N162, Sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 129L |
| Code F217 | MODEL SERIES 217 | 55D |
| Code F217 | MODEL SERIES 217 | 122C |
| Code F222 | MODEL SERIES 222 | 52D |
| Code F222 | MODEL SERIES 222 | 93C |
| Code FV | LONG SEDAN | 78D |
| Code FW | SEDAN | 78D |
| Code FX | Special version | 70D |
| Code L | LEFT-HAND DRIVE | 52H |
| Code R | RIGHT-HAND DRIVE | 52H |
| E15/37 | Rear light ring ambiance illumination | 42L |
| E17/15 | Right front footwell lamp | 117L |
| E17/16 | Left front footwell lamp | 120L |
| E17/17 | Right rear footwell lamp | 4L |
| E17/18 | Left rear footwell lamp | 11L |
| E20/18 | Front center console cup holder ambiance illumination | 35L |
| E43/14 | Left front center console ambiance illumination | 32L |
| E43/15 | Left rear center console ambiance illumination | 25L |
| E43/16 | Right front center console ambiance illumination | 27L |
| E43/17 | Right rear center console ambiance illumination | 30L |
| E43/18 | Driver-side ambiance illumination | 110L |
| E43/19 | Passenger-side interior ambiance illumination | 100L |
| E43/19 | Passenger-side interior ambiance illumination | 124L |
| E43/20 | Passenger-side exterior ambiance illumination | 97L |
| E43/29 | Left rear center console ambiance illumination | 83L |
| E43/30 | Right rear center console ambiance illumination | 87L |
| E43/31 | Left rear panel ambiance illumination | 61L |
| E43/32 | Right rear panel ambiance illumination | 66L |
| E43/33 | Audio/COMAND display ambiance illumination | 113L |
| E43/51 | Left front door speaker mirror triangle ambiance illumination | 72L |
| E43/52 | Right front door speaker mirror triangle ambiance illumination | 75L |
| E43/71 | Left center headliner midrange speaker ambiance illumination | 44L |
| E43/72 | Right center headliner midrange speaker ambiance illumination | 47L |
| N10/6 | Front SAM control unit | 22L |
| N10/6 | Front SAM control unit | 51L |
| N10/6 | Front SAM control unit | 103L |
| N10/8 | Rear SAM control unit | 18L |
| N10/8 | Rear SAM control unit | 91L |
| N10/8 | Rear SAM control unit | 56L |
| N162 | Ambiance illumination control unit | 35A |
| N162 | Ambiance illumination control unit | 11A |
| N162 | Ambiance illumination control unit | 20A |
| N162 | Ambiance illumination control unit | 28A |
| N162 | Ambiance illumination control unit | 44A |
| N162 | Ambiance illumination control unit | 51A |
| N162 | Ambiance illumination control unit | 60A |
| N162 | Ambiance illumination control unit | 68A |
| N162 | Ambiance illumination control unit | 75A |
| N162 | Ambiance illumination control unit | 91A |
| N162 | Ambiance illumination control unit | 83A |
| N162 | Ambiance illumination control unit | 100A |
| N162 | Ambiance illumination control unit | 4A |
| N22/1 | Climate control control unit | 107L |
| N32/1 | Driver seat control unit | 14L |
| N32/2 | Front passenger seat control unit | 7L |
| N70 | Overhead control panel control unit | 38L |
| W34 | Left footwell ground point | 126G |
| W54 | Right rear wheel well ground point | 73L |
| W6 | Left wheel arch trunk ground point | 69L |
| W7 | Right wheel house trunk ground point | 85L |
| W85/1 | Driver footwell frame floor assembly ground point | 56H |
| W85/1 | Driver footwell frame floor assembly ground point | 53H |
| W85/2 | Front passenger footwell frame floor assembly ground point | 53H |
| X122/8 | Center vent/ambiance illumination electronics electrical connector | 95E |
| X122/9 | Passenger-side instrument panel electrical connector | 123H |
| X138/1 | Front center console electrical connector | 24E |
| X138/6 | Rear center console electrical connector | 81E |
| X157/1 | Rear panel ambiance illumination electrical connector | 58F |
| X157/26 | Driver seat heater control unit ambiance illumination electrical connector | 9E |
| X157/27 | Front passenger seat heater control unit ambiance illumination electrical connector | 3H |
| X157/28 | Left sidewall cover ambiance illumination electrical connector | 71H |
| X157/29 | Right sidewall cover ambiance illumination electrical connector | 74H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 92E |
| Z140 | Circuit 31 connector sleeve | 44G |
| Z175/3z1 | Rear footwell lamps ambiance illumination connector sleeve, power supply | 15G |
| Z1z17 | Circuit 31 connector sleeve | 69G |
| Z1z17 | Circuit 31 connector sleeve | 71F |
| Z1z20 | Circuit 31 connector sleeve | 73J |
| Z1z9 | Circuit 31 connector sleeve | 53F |
| Z20/2z2 | Vehicle interior ambiance illumination LIN connector sleeve (LIN B35) | 48G |
| Z232/100z1 | Rear passenger compartment side wall ambient lighting end sleeve, power supply | 75F |
| Z232/101z1 | Circuit 31 connector sleeve | 64G |
| Z232/102z1 | Rear panel ambient lighting end sleeve, power supply | 61H |
| Z232/10z1 | Passenger-side ambiance illumination connector sleeve (red) | 97G |
| Z232/11z1 | Circuit 31 connector sleeve | 96H |
| Z232/12z4 | LED K1 ambiance illumination connector sleeve (yellow) | 46G |
| Z232/13z4 | LED K2 ambiance illumination connector sleeve (blue) | 43G |
| Z232/14z5 | LED K3 ambiance illumination connector sleeve (red) | 44E |
| Z232/15z1 | Circuit 31 connector sleeve | 85G |
| Z232/18z1 | Rear passenger compartment center console ambiance illumination connector sleeve (red) | 83G |
| Z232/49z1 | Vehicle interior ambiance illumination LIN connector sleeve 1 (LIN B35) | 26G |
| Z232/50z1 | Vehicle interior ambiance illumination LIN connector sleeve 2 (LIN B35) | 29G |
| Z232/51z1 | Vehicle interior ambiance illumination LIN connector sleeve 3 (LIN B35) | 31G |
| Z232/52z1 | Vehicle interior ambiance illumination LIN connector sleeve 4 (LIN B35) | 34G |
| Z232/53z1 | Roof ambiance illumination LIN connector sleeve 1 (LIN B36) | 61H |
| Z232/54z1 | Roof ambiance illumination LIN connector sleeve 2 (LIN B36) | 63H |
| Z232/55z1 | Roof ambiance illumination LIN connector sleeve 3 (LIN B36) | 66H |
| Z232/56z1 | Roof ambiance illumination LIN connector sleeve 4 (LIN B36) | 81G |
| Z232/57z1 | Roof ambiance illumination LIN connector sleeve 5 (LIN B36) | 86G |
| Z232/58z1 | Roof ambiance illumination LIN connector sleeve 6 (LIN B36) | 88G |
| Z232/59z1 | Cockpit ambiance illumination LIN connector sleeve 1 (LIN B34) | 99H |
| Z232/60z1 | Cockpit ambiance illumination LIN connector sleeve 2 (LIN B34) | 112H |
| Z232/61z1 | Cockpit ambiance illumination LIN connector sleeve 3 (LIN B34) | 115G |
| Z232/62z1 | Cockpit ambiance illumination LIN (LIN B34) connector sleeve 4 | 118H |
| Z232/98z1 | Cockpit ambiance illumination connector sleeve, power supply | 114F |
| Z232/98z1 | Cockpit ambiance illumination connector sleeve, power supply | 123F |
| Z232/99z1 | Center console ambiance illumination connector sleeve, power supply | 32G |
| Z50/20z1 | Footwell illumination cockpit connector sleeve | 119G |
| Z54/7z1 | Footwell illumination connector sleeve | 21G |
| Z54/7z1 | Footwell illumination connector sleeve | 50G |
| Z54/7z1 | Footwell illumination connector sleeve | 3E |
| Z6/79z1 | Circuit 31 connector sleeve | 29G |
| Z6z4 | Circuit 31 connector sleeve | 126F |
| Z6z6 | Circuit 31 connector sleeve | 113G |
| Z7/72z1 | Sensor ground connector sleeve | 107H |
| Z95z1 | Center air vents circuit 31 connector sleeve | 96F |
