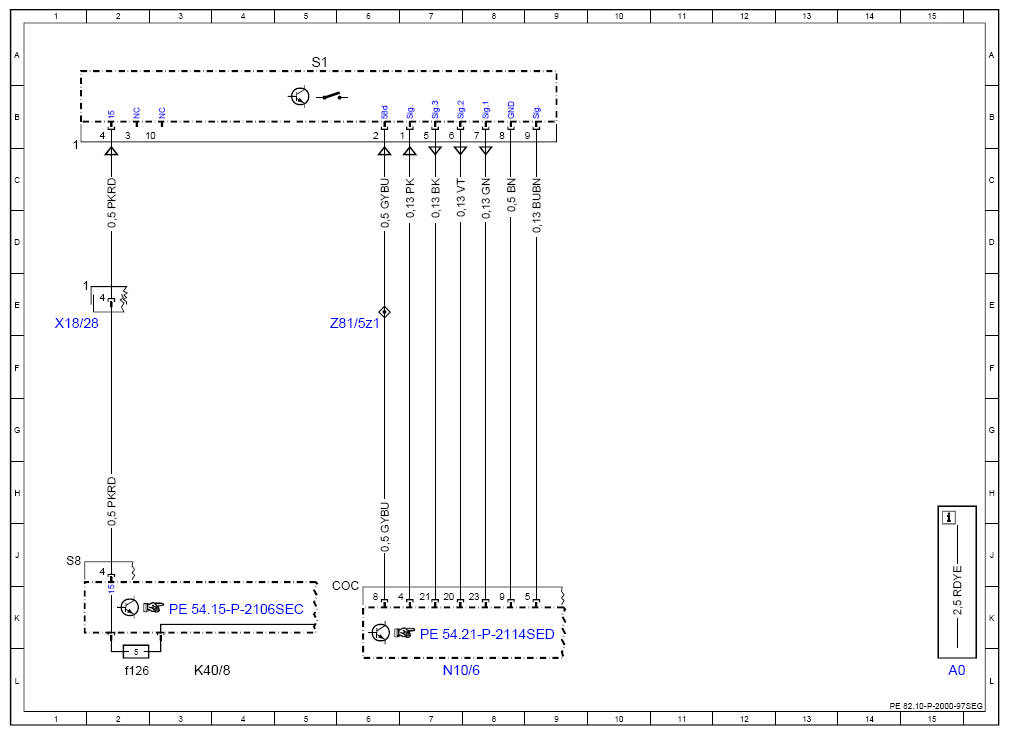

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97SEG
Model 217, 222 as of model year 2018
Switch S1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| K40/8 | Engine fuse and relay module | 3L |
| K40/8f126 | Fuse 126 | 2L |
| N10/6 | Front SAM control unit | 7L |
| S1 | Exterior lights switch | 5A |
| X18/28 | Left cockpit/engine compartment electrical connector | 1E |
| Z81/5z1 | Cockpit terminal 58d connector sleeve | 6E |
