Remove/Install Front Suspension Strut - AR32.25-P-1017S

Model 223

except code 490 (Electrohydraulic suspension)

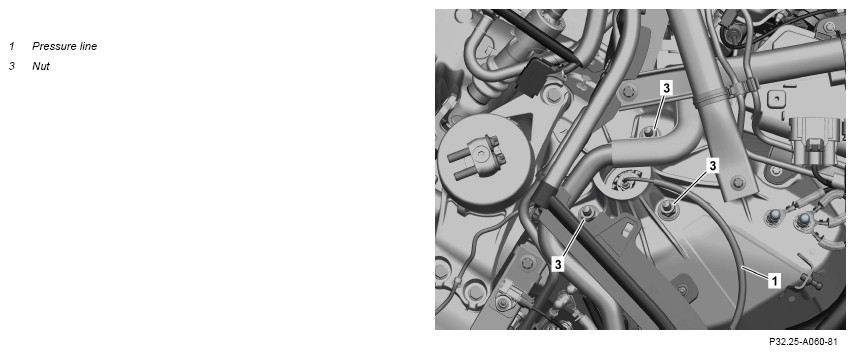

Shown on suspension strut except code Z07 (B7 armoring for special protection version)

Courtesy of MERCEDES-BENZ USA

Shown on suspension strut except code Z07 (B7 armoring for special protection version)

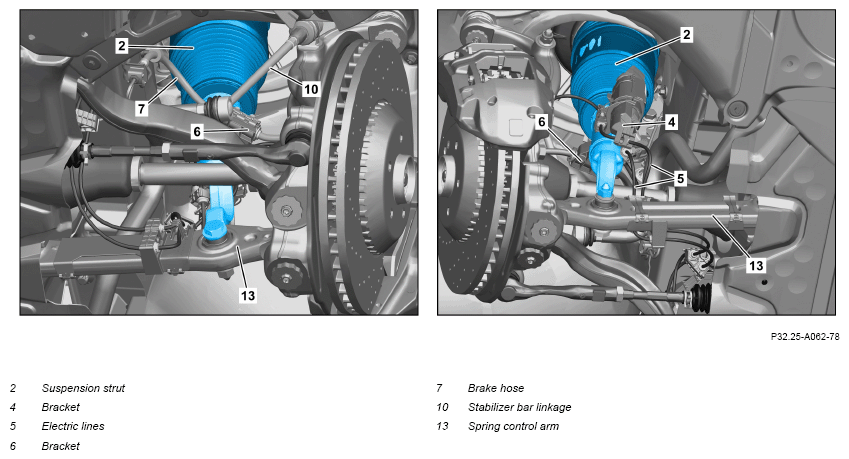

Fig 1: Front Suspension Strut Components Location - Model 223 Except Code 490 (Shown Except Code Z07)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

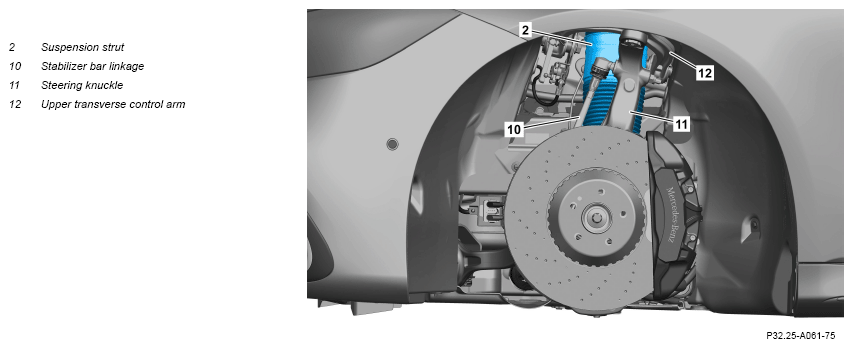

Shown on suspension strut except code Z07 (B7 armoring for special protection version)

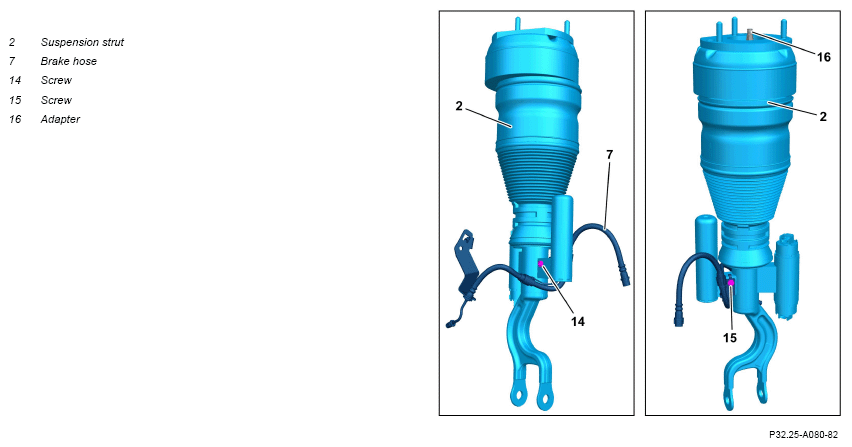

Shown on suspension strut with code Z07 (B7 armoring for special protection version)

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on air suspension		AH32.22-P-1000-01T
	Evaluation of elastomer bearings		AH00.10-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Remove corresponding front wheel.		AR40.10-P-1102A
2	Reduce pneumatic pressure of suspension struts (2) using diagnostic system.
			AD00.00-P-2000-06FR
		The complete wheels must not touch the ground. Otherwise the suspension struts (2) can be damaged and subsequently malfunction.
3	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
4	Remove covers over suspension strut (2) at top.
5	Clean area of pressure line connections.	Do not use any cleaning agents or solvents.
6	Detach pressure line (1) from suspension strut (2) and seal openings with suitable stop plugs.	Do not crush or kink the pressure line (1) and do not subject it to tension. This will cause damage to the pressure line (1) and can impair its function. Pressure line to front suspension strut/valve block	*BA32.22-P-1010-03F
		Socket wrench bit	Fig 2
		Record plug	Fig 5
7	Remove nuts (3).	Nut, suspension strut at front to body	*BA32.25-P-1001-04O
8	Disconnect electrical connector at suspension strut (2).
9	Open holder (4) and expose electric lines (5).
10.1	Unscrew screw (15) and remove brake hose (7) with holder.	Model 223 with code Z07 (B7 armoring on special protection version) except code 490 (Electrohydraulic suspension) Screw, bracket for brake hose to strut	*BA42.10-P-1006-04R
10.2	Open holder (6) and unhook brake hose (7).	Model 223 except code 490 (Electrohydraulic suspension) except code Z07 (B7 armoring on special protection version)
11	Remove torsion bar linkage (10) from steering knuckle (11).	Model 223 except code 490 (Electrohydraulic suspension) except code Z07 (B7 armoring on special protection version) Model 223 with code Z07 (B7 armoring on special protection version) except code 490 (Electrohydraulic suspension) Nut, torsion bar linkage to steering knuckle	*BA32.20-P-1002-02O
12	Secure steering knuckle (11) to prevent it from folding down.
13	Remove upper transverse control arm (12) from steering knuckle (11).	Model 223 except code 490 (Electrohydraulic suspension) except code Z07 (B7 armoring on special protection version) Model 223 with code Z07 (B7 armoring on special protection version) except code 490 (Electrohydraulic suspension) Nut, steering knuckle to transverse control arm	*BA33.20-P-1006-01T
14	Remove suspension strut (2) from spring link (13).	Nut, suspension strut at front to spring control arm	*BA32.25-P-1002-04O
15	Remove suspension strut (2).
16	Remove adapter (16) for connecting pressure line (1) at suspension strut (2).	Model 223 with code Z07 (B7 armoring on special protection version) except code 490 (Electrohydraulic suspension) Only when installing new suspension strut (2).
17	Unscrew screw (14).	Model 223 with code Z07 (B7 armoring on special protection version) except code 490 (Electrohydraulic suspension) Only when installing new suspension strut (2). Screw, suspension strut bore seal	*BA32.25-P-1008-04O
	Check
18	Check suspension strut (2) for damage.
		Model 223 except code 490 (Electrohydraulic suspension) except code Z07 (B7 armoring on special protection version)	AP32.25-P-3255J
		Model 223 with code Z07 (B7 armoring on special protection version) except code 490 (Electrohydraulic suspension) If there is a problem, ↓ Replace suspension strut (2).	AP32.25-P-3255SG
19	Check adapter (16) for connecting pressure line (1) at suspension strut (2) for damage.	Model 223 with code Z07 (B7 armoring on special protection version) except code 490 (Electrohydraulic suspension) If there is a problem, ↓ use new adapter (16) for connecting pressure line (1).
20	Check pressure line (1) for damage.	If there is a problem, ↓ repair pressure line connection.	AR32.22-P-2001-01S
		Knife	Fig 3
		Box wrench bit	Fig 4
		Socket wrench bit	Fig 2
21	Install in the reverse order.

Fig 2: Identifying Socket Wrench Bit (211 589 00 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Knife (000 589 12 28 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Box Wrench Bit (001 589 00 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
