Remove/Install Rear Axle Track Rod - AR35.20-P-0109SG

Model 223

with code Z07 (B7 armoring on special protection version)

MODIFICATION NOTES

30.03.2021	Screw, tie rod to wheel carrier	Model 223 with code Z07	BA35.20-P-1001-04P
30.03.2021	Nut/screw, tie rod to rear axle carrier	Model 223 with code Z07	BA35.20-P-1009-04P
22.04.2021	Screw, tie rod to wheel carrier	Model 223 with code Z07	BA35.20-P-1001-04P

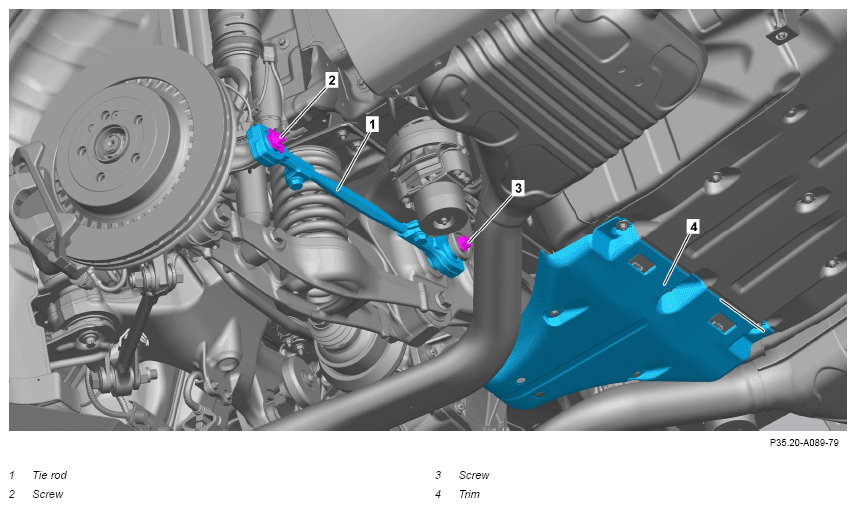

Fig 1: Rear Axle Track Rod Components Location - Model 223 With Code Z07

G16191157

Courtesy of MERCEDES-BENZ USA

Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove corresponding rear wheel.		AR40.10-P-1102A
2	Unscrew screw (3) at rear axle carrier.	Nut/Screw, tie rod on rear axle beam	*BA35.20-P-1009-04P
3	Unscrew screw (2) of tie rod (1) at wheel carrier and remove tie rod (1)	Screw, tie rod to wheel carrier	*BA35.20-P-1001-04P
4	Check tie rod (1) for condition and damage.	If there is a problem, ↓ Replace tie rod (1)
5	Install in the reverse order.
6	Perform chassis alignment.		AR40.20-P-0200S

TIE ROD

Number	Designation			Model 223 with code Z07
BA35.20-P-1001-04P	Screw, tie rod to wheel carrier	Stage 1	Nm	50
BA35.20-P-1001-04P	Screw, tie rod to wheel carrier	Stage 2	∠°	90

TIE ROD

Number	Designation			Model 223 with code Z07
BA35.20-P-1009-04P	Nut/Screw, tie rod on rear axle beam	Stage 1	Nm	90
BA35.20-P-1009-04P	Nut/Screw, tie rod on rear axle beam	Stage 2	∠°	45
