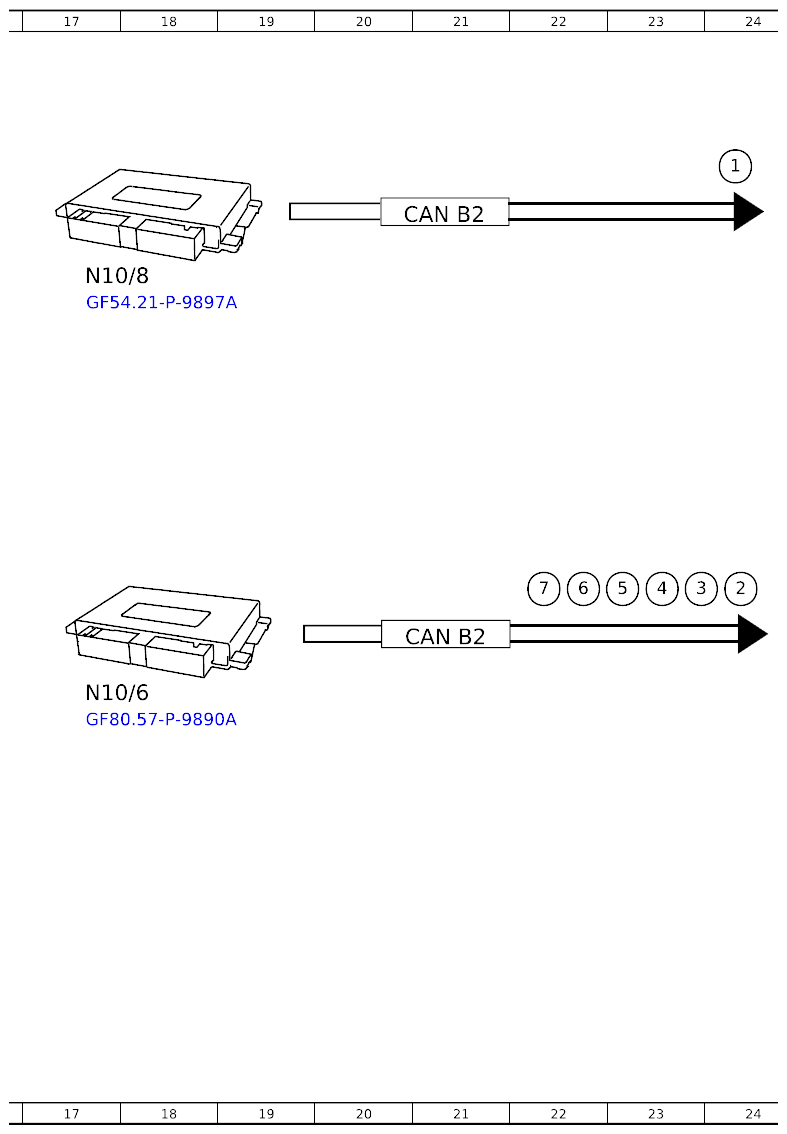

Function Schematic For Seat Belt Extender Actuation - PE91.45-P-2500-97A
Model 223
with code U07 (Seat belt extender in rear passenger compartment)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat belt buckle switch, status | 16B |
| 1 | Seat belt buckle switch, status | 24B |
| 10 | Instrument cluster warning message, request | 32E |
| 11 | Instrument cluster warning message, actuation | 38F |
| 12 | Image data, signal | 38E |
| 2 | Circuit 15, status | 24F |
| 2 | Circuit 15, status | 16D |
| 3 | Vehicle speed, signal | 15D |
| 3 | Vehicle speed, signal | 24F |
| 3 | Vehicle speed, signal | 9D |
| 4 | Engine running, signal | 16F |
| 4 | Engine running, signal | 23F |
| 4 | Engine running, signal | 9F |
| 5 | Drivetrain operational, signal | 15F |
| 5 | Drivetrain operational, signal | 23F |
| 6 | Door rotary tumbler switch, status | 22F |
| 6 | Door rotary tumbler switch, status | 16H |
| 7 | Seat belt extender automatic mode on, request | 16J |
| 7 | Seat belt extender automatic mode on, request | 22F |
| 8 | Belt extender, actuation | 31D |
| 9 | Belt extender, status | 29C |
| A10/1 | Seat belt extender | 32D |
| A11/1 | Seat belt extender | 32D |
| A26/17 | Head unit | 2K |
| A40/18 | Instrument cluster display | 39F |
| CAN A1 | CAN 1 for telematics | 36F |
| CAN B1 | CAN 1 for vehicle interior | 8J |
| CAN B1 | CAN 1 for vehicle interior | 14J |
| CAN B2 | CAN 2 for vehicle interior | 21G |
| CAN B2 | CAN 2 for vehicle interior | 21B |
| CAN C | CAN for engine | 7G |
| Code 200 | Conditionally automated driving | 1E |
| Code 200 | Conditionally automated driving | 1D |
| Code 503 | Remote-controlled parking | 1D |
| Code 503 | Remote-controlled parking | 1E |
| Ethernet | Ethernet | 8K |
| Ethernet | Ethernet | 14K |
| Ethernet | Ethernet | 14G |
| Ethernet | Ethernet | 14E |
| Ethernet | Ethernet | 30E |
| Flex E | Chassis FlexRay | 7E |
| HSVL | High-speed video link | 36E |
| N10/6 | Front signal acquisition and actuation module control unit | 17G |
| N10/8 | Rear signal acquisition and actuation module control unit | 17C |
| N127 | Drivetrain control unit | 11G |
| N133/1 | Instrument cluster control unit | 33F |
| N3/10 | Engine management control unit | 2G |
| N3/9 | Engine management control unit | 2G |
| N30/10 | Electronic Stability Program control unit | 2E |
| N30/3 | Electronic Stability Program control unit | 2E |
| N32/5 | Left rear seat control unit | 26E |
| N32/6 | Right rear seat control unit | 26E |
| N69/3 | Left rear door control unit | 2J |
| N69/4 | Right rear door control unit | 2J |
| N73/3 | Electronic ignition switch control unit | 11E |
| S68/11 | Left rear seat belt buckle switch | 11B |
| S68/12 | Right rear seat belt buckle switch | 11C |
| S68/14 | Center rear seat belt buckle switch | 11C |
