Remove/Install Rear Seat Cushion Cover - AR91.18-P-1851S

Model 223

except code 223 (Electric backrest adjustment and head restraints)

except code 224 (Individual rear seats)

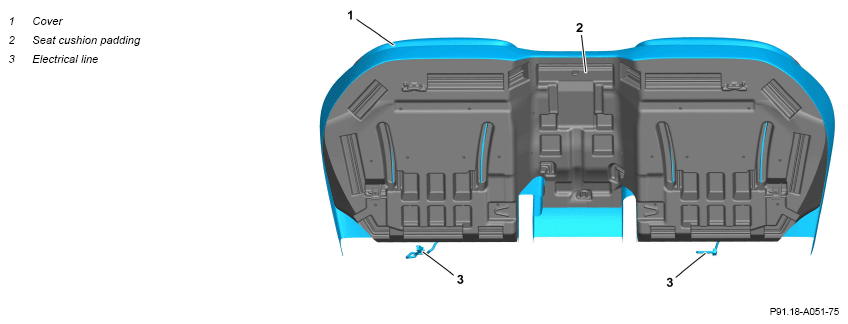

Shown with code 872 (Rear seat heating, left and right)

Courtesy of MERCEDES-BENZ USA

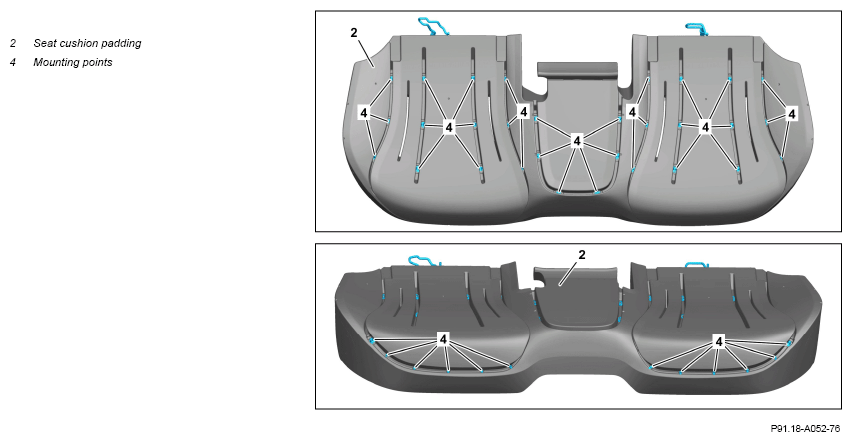

Shown with code 872 (Rear seat heating, left and right)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove seat cushion padding (2).		AR91.12-P-1022S
2	Unhook cover (1) on the underside of seat cushion padding (2) all the way round.	Extraction hook	Fig 2
3	Slip cover (1) over the seat cushion padding (2).
4	Guide electric lines (3) through cover (1).	Model 223 with code 872 (Left and right rear seat heating) except code 223 (Electric backrest adjustment and head restraints) except code 224 (Individual rear seats)
5	Unfasten staple wires of cover (1) at attachment points (4).		AR91.18-P-1851-01FRX
		Padding clip pliers	Fig 3
		Dismantling tool	Fig 1
6	Remove cover (1) from seat cushion padding (2).
	Install
7	Align cover (1) over seat cushion padding (2) so that the seams locate in the notches of the seat cushion padding (2).
8	Fasten staple wires of cover (1) at attachment points (4).		AR91.18-P-1851-01FRX
		Padding clip pliers	Fig 3
		Dismantling tool	Fig 1
9	Guide electric lines (3) through cover (1).	Model 223 with code 872 (Left and right rear seat heating) except code 223 (Electric backrest adjustment and head restraints) except code 224 (Individual rear seats)
10	Slip cover (1) over the seat cushion padding (2).
11	Hook cover (1) into the underside of seat cushion padding (2) all the way round.	Extraction hook	Fig 2
12	Install seat cushion padding (2).		AR91.12-P-1022S

Fig 1: Identifying Dismantling Tool (205 589 03 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Padding Clip Pliers (454 589 03 37 00)

Courtesy of MERCEDES-BENZ USA
