Repair Wiring Harness By Crimping - AR00.19-P-0100-03A

Model All

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Crimp Pliers (220 589 01 99 10)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Wire Stripper (220 589 01 99 40)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Fl. Crimping Set 6.3/2.8 (220 589 01 99 01)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying MQS Crimping Set (220 589 01 99 85)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying MLK 1.2 Crimping Set (220 589 01 99 83)

Courtesy of MERCEDES-BENZ USA

Fig 8: Identifying MCP 2.8 Crimping Set (220 589 01 99 03)

Courtesy of MERCEDES-BENZ USA

Fig 9: Identifying MCP 2.8 Crimping Set (220 589 01 99 04)

Courtesy of MERCEDES-BENZ USA

Fig 10: Identifying JPT Crimping Set (220 589 01 99 05)

Courtesy of MERCEDES-BENZ USA

Fig 11: Identifying RK 2.5 Crimping Set (220 589 01 99 06)

Courtesy of MERCEDES-BENZ USA

Fig 12: Identifying SLK 2.8 Crimping Set (220 589 01 99 07)

Courtesy of MERCEDES-BENZ USA

Fig 13: Identifying MCP 1.2 Crimping Set (220 589 04 99 11)

Courtesy of MERCEDES-BENZ USA

TABLE OF STRIPPING LENGTHS

Contact family	Cable cross-section	Length stripped of insulation
All	up to 1.5 mm²	4 mm±0.3
All	1.5 to 4 mm²	5 mm±0.3

The following work procedure is shown on a circular conductor.

Select crimp contact based on table in wiring harness repair kit, basic wiring harness repair kit or new passenger car wiring harness repair kit.
Strip line in accordance with table using wire stripper.
Damaged wire leads can cause changes of the line cross-section and result in an unreliable strength of the crimp connection.

Courtesy of MERCEDES-BENZ USA
Select crimping kit (1, 2) for manual crimp pliers (3).
Select crimping kit (1, 2) based on the crimp contact model used in the wiring harness repair kit, basic wiring harness repair kit or new passenger car wiring harness repair kit. See table.
Insert crimping kit (1, 2) into manual crimp pliers (3).

Courtesy of MERCEDES-BENZ USA

Screw positioner onto manual crimp pliers (arrow).
With manual crimp pliers with screw cap.

Attach positioner with quick-release coupling to

manual crimp pliers.

With manual crimp pliers with quick-release coupling.

Positioners with screw cap can be replaced with positioners with quick-release coupling.

Courtesy of MERCEDES-BENZ USA

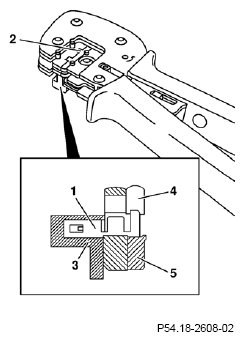

Insert crimp contact (1) all the way into crimp nest (2) and into positioner (3) of die sets (4, 5).
Select crimp nest (2) according to cable cross section. Crimp contact (1) must be vertical between the die sets (4, 5).

Courtesy of MERCEDES-BENZ USA

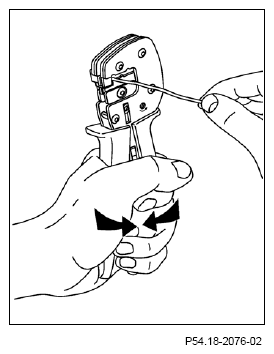

Close crimp pliers until crimp contact (2) is fixed in crimp nest (3).
Do not deform the crimp contact (2) otherwise the cable (1) cannot be inserted correctly into the crimp contact (2).

Ensure that crimp contact (2) is seated correctly in positioner (4).
Guide cable (1) into inserted crimp contact (2) (arrow).

Courtesy of MERCEDES-BENZ USA

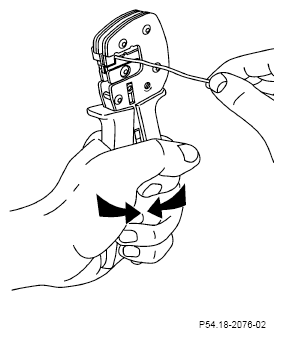

Squeeze crimp pliers until stop is reached remove crimped connection.
The manual crimp pliers must be squeezed until stop is reached before they will open again.

Courtesy of MERCEDES-BENZ USA
