Remove/Install Flexible Coupling Of Drive Shaft At Transmission End - AR41.10-P-0040-01S
Model 223
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA |
PROPELLER SHAFT
| Number | Designation | Model 223 | ||
|---|---|---|---|---|
| BA41.10-P-1001-01O | Flexible coupling to transmission/front propeller shaft | Stage 1 | Nm | 60 |
| Stage 2 | ∠° | 90 | ||
PROPELLER SHAFT
| Number | Designation | Model 223 | ||
|---|---|---|---|---|
| BA41.10-P-1002-01O | Flexible coupling to rear axle differential or rear propeller shaft | Stage 1 | Nm | 60 |
| Stage 2 | ∠° | 90 | ||
Remove

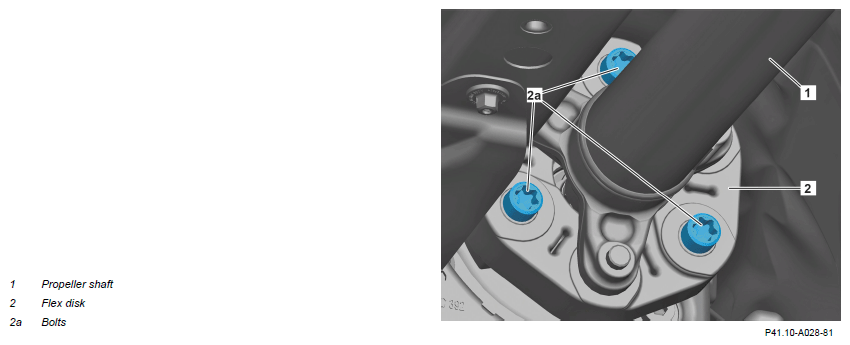

- Mark position of drive shaft (1) relative to flange of transmission or transfer case or rear axle differential in color.
- Attach
counterholder to screws of flex disk (2).
Aid of helper required.
- Remove bolts (2a).
- Remove
Shown on flexible coupling on automatic transmission
Install
- Restore original installation position of drive shaft (1) using colored marking.
- Slide drive shaft (1) onto flange of transmission or transfer case or rear axle differential.
Carefully slide on drive shaft (1).
Otherwise the pilot bushing in the drive shaft (1) may be damaged.
- Attach
- Screw in screw/bolts (2a)
.
- Remove
