Rear Fender Complete Removal - Ar63.50-P-1401-01S

Model 223.0/1

except code Z07 (B7 armoring on special protection version)

The following steps are shown on model 223.1 on the left side of the vehicle and must be similarly performed on the right side of the vehicle in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

1. Mark separating points on rear fender (1) (areas A, B).

   Mark separating point along the Y-markings (area A).

   To replace the C-pillar, mark separating point at approx. 60 mm above the Y-markings (area A).

   Transfer separation point from replacement part (area B).

2. Cut separating points on rear fender (1) (areas A, B).

   Do not make the cuts too deep.

   Otherwise the components below can be damaged and weakened.

3. Cut adhesive bead between outer rear wheel well and rear fender (1) (area F).

   The rear fender is bonded to the outer rear wheel well (1).

4. Press out self-pierce rivets at rear fender (1) using rivet press tool (areas C₁ ).
5. Remove screws at rear fender (1) (area D).
6. Expose spot welds on rear fender (1) (areas E).
7. Cut off spot welds on rear fender (1) (areas E).

   Courtesy of MERCEDES-BENZ USA

8. Expose spot welds on rear fender (1) (areas G).
9. Cut off spot welds on rear fender (1) (areas G).

   Joint spot welds on panels that are one behind the other must be cut out through two panel thicknesses.

10. Drill through clinch connections at rear fender (1) with ø 6 mm (areas H).
11. Press out self-pierce rivets at rear fender (1) using rivet press tool (areas J).

    Courtesy of MERCEDES-BENZ USA

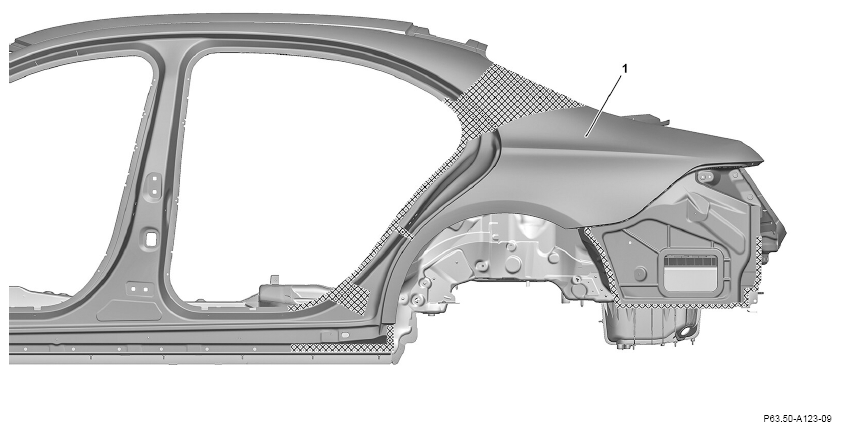

12. Heat rear fender (1) in cross-hatched areas.

    Cross-hatched areas are bonded with adhesive.

    Courtesy of MERCEDES-BENZ USA

13. Heat rear fender (1) in cross-hatched areas.

    Cross-hatched areas are bonded with adhesive.

14. Remove rear fender (1).

    Courtesy of MERCEDES-BENZ USA

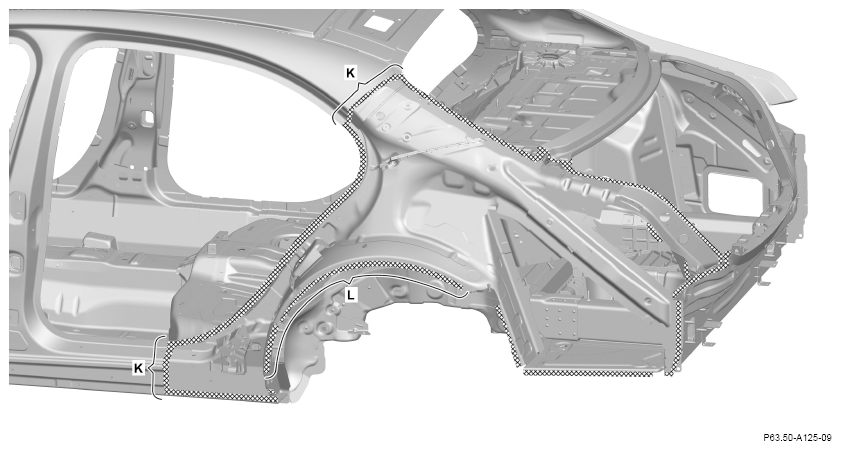

15. Remove residual adhesive material (area L).

    The height of the residual adhesive should be max. 2 mm. Always remove loose adhesive material.

16. Repair bare spots with primer stick (area L).
17. Grind mating surfaces down to bare metal in cross-hatched areas.

    Grind mating surfaces down to bare metal on both sides (areas K).

    Observe pretreatment of bonding surfaces.

18. Remove grinding dust and drill chips.
