Outer Side Longitudinal Member Preparation - Ar63.30-P-1050-02S

Model 223.0/1/9

The following operation steps are shown on model 223.1 on the left side of the vehicle and must be similarly performed on the right side of the vehicle in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

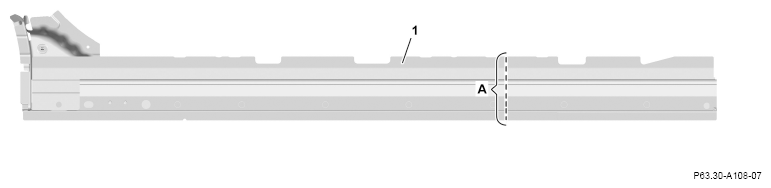

1. Mark separating point at outer side longitudinal member (1) and cut (area A).

   Transfer separation point from vehicle.

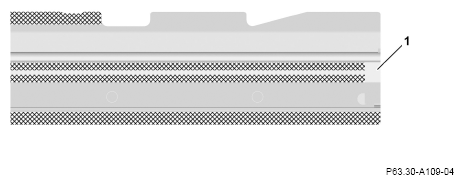

2. Grind mating surfaces on outer side longitudinal member (1) down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces.

3. Remove grinding dust.
