Inner Side Wall With Rear Outer Wheelhouse Partial Removal - Ar63.10-P-6050-01S

Model 223.0/1

The next steps are shown on the left side of the vehicle for model 223.1 and must be performed in the same way on the right side of the vehicle in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

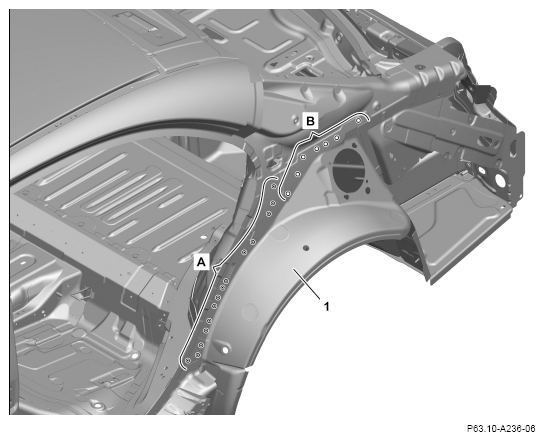

1. Expose spot welds on inner side wall (1) and cut off (area A).
2. Drill off self-piercing rivets on inner side wall (1) with Ø 6 mm bit (area B).

   Courtesy of MERCEDES-BENZ USA

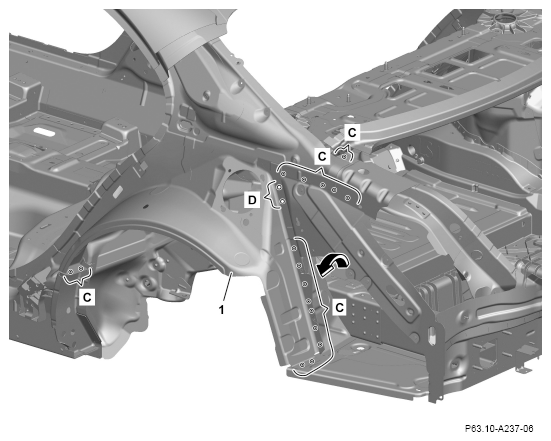

3. Expose spot welds on inner side wall (1) and cut off (areas C).
4. Drill off self-piercing rivets on inner side wall (1) with Ø 6 mm bit (area D).
5. Bend open sheet metal lug in direction of arrow.

   Courtesy of MERCEDES-BENZ USA

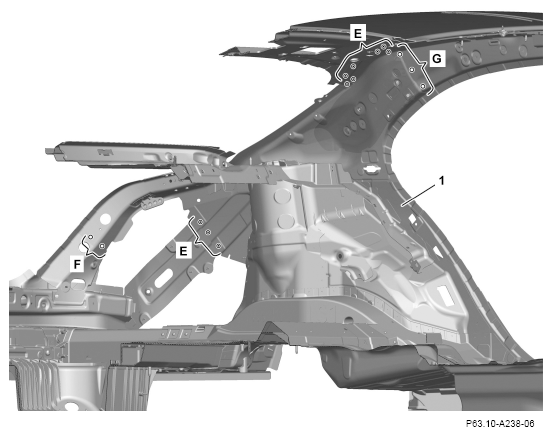

6. Expose spot welds on inner side wall (1) and cut off (areas E).
7. Drill out clinch connections on inner side wall (1) with Ø 6 mm bit (area F).
8. Expose spot welds on inner side wall (1) and drill off with Ø 6.5 mm bit (area G).

   Courtesy of MERCEDES-BENZ USA

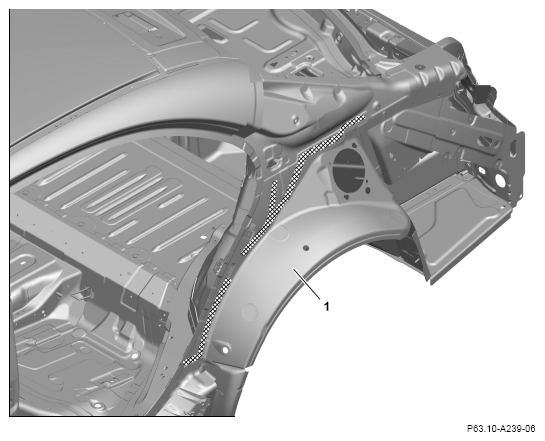

9. Heat inner side wall (1) in crosshatched areas.

   Cross-hatched areas are bonded with adhesive.

   Courtesy of MERCEDES-BENZ USA

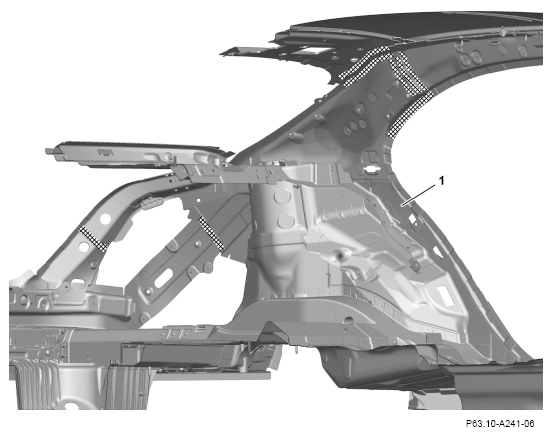

10. Heat inner side wall (1) in crosshatched areas.

    Cross-hatched areas are bonded with adhesive.

    Courtesy of MERCEDES-BENZ USA

11. Heat inner side wall (1) in crosshatched areas.

    Cross-hatched areas are bonded with adhesive.

12. Remove inner sidewall (1).

    Courtesy of MERCEDES-BENZ USA

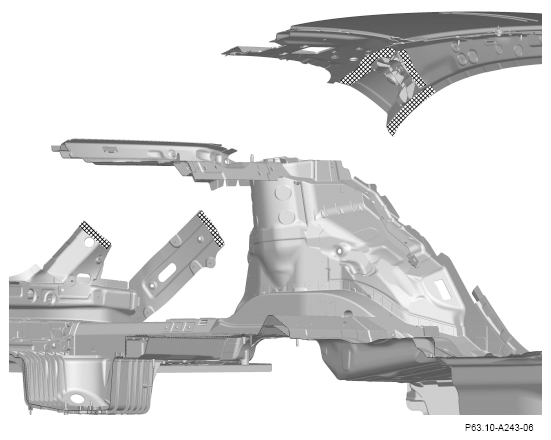

13. Grind mating surfaces down to bare metal in cross-hatched areas.

    Observe pretreatment of bonding surfaces.

    Courtesy of MERCEDES-BENZ USA

14. Grind mating surfaces down to bare metal in cross-hatched areas.

    Observe pretreatment of bonding surfaces.

15. Remove grinding dust and drill chips.
