Spare Tire Well Removal - Ar64.20-P-1245-01S

Model 223.0/1/9

The next steps are shown on model 223.1.

The superordinate service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

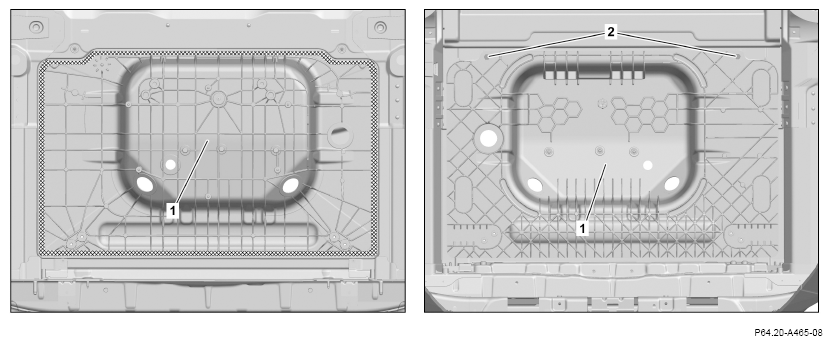

1. Remove screws (2) from spare wheel well (1).
2. Separate adhesive bead between spare wheel well (1) and body in the cross-hatched area from below.

   Cross-hatched area is bonded.

3. Remove spare wheel well (1).
4. Apply remaining adhesive to body in crosshatched area.
5. Remove loose adhesive material.
6. Repair bare parts with touchup applicator.
7. Prepare bonding surface in crosshatched area for installation.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of adhesive material.

   Courtesy of MERCEDES-BENZ USA
