Wheelhouse With Front Longitudinal Member Installation - Ar62.20-P-1856-03S

Model 223.0/1/9

except code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

Countersunk-head rivet (Z)

• Z₁ = Countersunk-head rivet 6.4x14.0
• Z₂ = Countersunk-head rivet 6.4x15.5
• Z₃ = Countersunk-head rivet 6.4x17.0
• Z₄ = Countersunk-head rivet 6.4x19.0
• Z₅ = Countersunk-head rivet 6.4x21.0

Blind rivet (Y)

• Y₁ = Blind rivet 6.4x12.0
• Y₂ = Blind rivet 6.5x12.5
• Y₃ = blind rivet 6.5x14.5
• Y₄ = Blind rivet 6.4M6
• Y₅ = blind rivet 6.4
• Y₆ = blind rivet 6.5X13.5
• Y₇ = Blind rivet 6.4x14.0
• Y₈ = Blind rivet 6.4x17.0
• Y₉ = Blind rivet 6.4x20

Flow-form rivet with countersunk head (X)

• X₁ = Flow-form rivet with countersunk head 1.3 mm to 2.5 mm clamping range
• X₂ = Flow-form rivet with countersunk head 2.3 mm to 3.5 mm clamping range
• X₃ = Flow-form rivet with countersunk head 3.35 mm to 4.1 mm clamping range
• X₄ = Flow-form rivet with countersunk head 4 mm to 5.15 mm clamping range
• X₅ = Flow-form rivet with countersunk head 5.0 mm to 6.1 mm clamping range
• X₆ = Flow-form rivet with countersunk head 6.0 mm to 7.2 mm clamping range
• X₇ = Flow-form rivet with countersunk head 7.1 mm to 8.3 mm clamping range

Flow-form rivet (W)

• W₁ = Flow-form rivet structure with 3.5 mm clamping range
• W₃ = Flow-form rivet structure 3.35 mm up to 4.1 mm clamping range
• W₄ = Flow-form rivet structure 4 mm up to 5.15 mm clamping range
• W₅ = Flow-form rivet structure 5.0 mm up to 6.1 mm clamping range
• W₆ = Flow-form rivet structure 6.0 mm up to 7.2 mm clamping range
• W₇ = Flow-form rivet structure 7.1 mm up to 8.3 mm clamping range

Blind rivet (V)

• V₁ = rivet 3.2x4.5
• V₂ = rivet 3.2x6.5

Blind rivet (U)

• U1 = rivet 3.2x9.5

Blind rivet with countersunk head (T)

• T1 = Blind rivet with countersunk head with a 3.0 mm to 5.0 mm clamping range
• T2 = Blind rivet with countersunk head with a 1.5 mm to 3.0 mm clamping range

The next steps are shown on the left side of the vehicle for model 223.1 and must be performed in the same way on the right side of the vehicle in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

The graphics show the vehicle from the mechanic's perspective. At the same time, this perspective also specifies the direction in which the rivets must be placed.

1. Install wheel well (1), fit with straightening tool and fix in place.

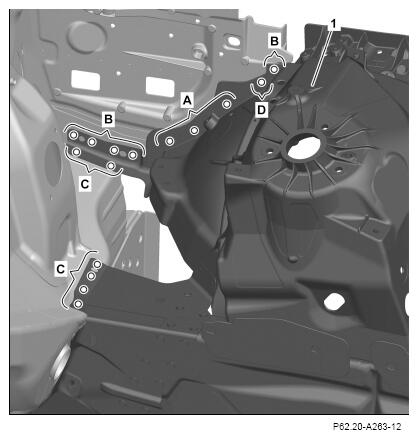

2. Drill rivet holes on wheel well (1) with a Ø 6.7 mm bit (areas A, B, C, D).

   Drill rivet holes from outside through existing holes in body (area A).

   Drill rivet holes from outside (areas B, D).

3. Countersink rivet hole from outside (area D).

   Courtesy of MERCEDES-BENZ USA

4. Drill rivet holes on wheel well (1) with a Ø 6.7 mm bit (areas E, I).

   Drill rivet holes through existing holes in body (area I).

5. Drill rivet hole on wheel well (1) with a Ø 6.7 mm bit through connecting carrier located above (area F).
6. Drill or cut previously drilled hole on connecting carrier with a Ø 10 mm bit.

   To create sufficient space for the rivet head.

   Courtesy of MERCEDES-BENZ USA

7. Drill rivet holes on wheel well (1) with a Ø 6.7 mm bit (areas H, J).

   Drill rivet holes through existing holes in body (area J).

8. Remove wheel well (1).
9. Deburr rivet holes on wheel well (1) and body on both sides.
10. Remove drilling chips.

    Courtesy of MERCEDES-BENZ USA

11. Apply 2-component adhesive to body in cross-hatched areas.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

12. Apply 2-component adhesive to body in cross-hatched areas.

    Apply 2-component adhesive on inside (areas G).

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

13. Install wheel well (1) with straightening tool and fix in place.

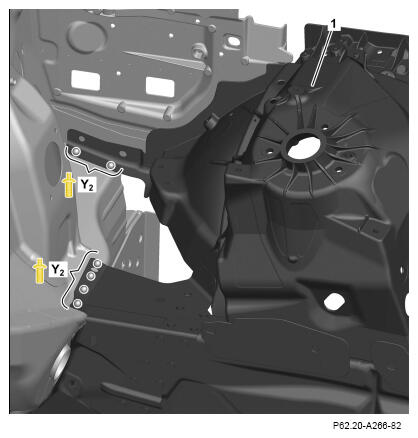

14. Rivet wheel well (1) with Ø 6.5x12.5 rivets (areas Y₂ ).

    Courtesy of MERCEDES-BENZ USA

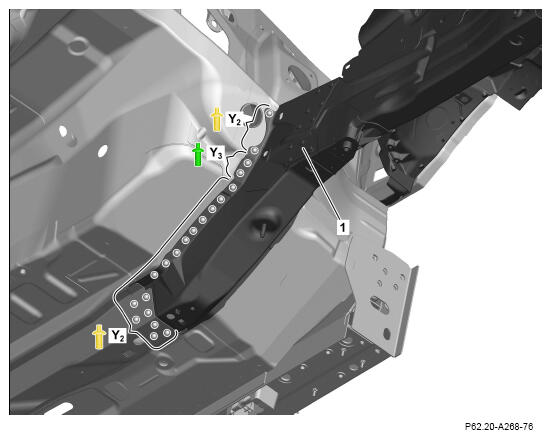

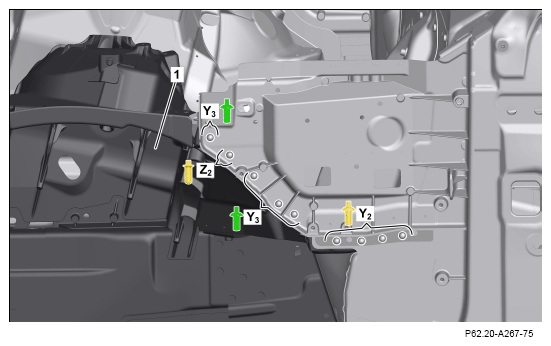

15. Rivet wheel well (1) with Ø 6.5x12.5 rivets (areas Y₂ ).
16. Rivet wheel well (1) with Ø 6.5x14.5 rivets (areas Y₃ ).
17. Rivet wheel well (1) with a Ø 6.4x15.5 countersunk-head rivet (area Z₂ ).

    Courtesy of MERCEDES-BENZ USA

18. Rivet wheel well (1) with Ø 6.5x12.5 rivets (areas Y₂ ).
19. Rivet wheel well (1) with Ø 6.5x14.5 rivets (area Y₃ ).

    Courtesy of MERCEDES-BENZ USA

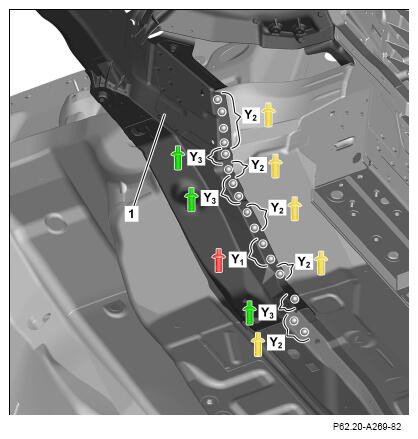

20. Rivet wheel well (1) with Ø 6.4x12.0 rivets (area Y₁ ).
21. Rivet wheel well (1) with Ø 6.5x12.5 rivets (areas Y₂ ).
22. Rivet wheel well (1) with Ø 6.5x14.5 rivets (areas Y₃ ).

    Courtesy of MERCEDES-BENZ USA

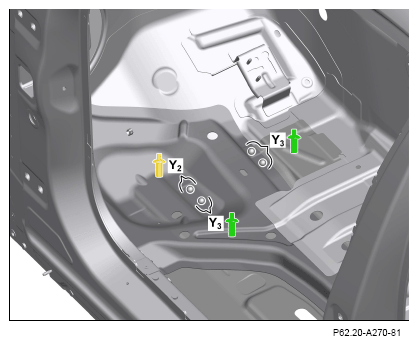

23. Rivet wheel well with a Ø 6.5x12.5 rivet (area Y₂ ).
24. Rivet wheel well with rivets Ø 6.5x14.5 (areas Y₃ ).

    Courtesy of MERCEDES-BENZ USA
