Reinforcement Installation - Ar62.30-P-1400-05S

Model 223.0/1/9

Courtesy of MERCEDES-BENZ USA

Countersunk-head rivet (Z)

• Z₁ = Countersunk-head rivet 6.4x14.0
• Z₂ = Countersunk-head rivet 6.4x15.5
• Z₃ = Countersunk-head rivet 6.4x17.0
• Z₄ = Countersunk-head rivet 6.4x19.0
• Z₅ = Countersunk-head rivet 6.4x21.0

Blind rivet (Y)

• Y₁ = Blind rivet 6.4x12.0
• Y₂ = Blind rivet 6.5x12.5
• Y₃ = blind rivet 6.5x14.5
• Y₄ = Blind rivet 6.4M6
• Y₅ = blind rivet 6.4
• Y₆ = blind rivet 6.5X13.5
• Y₇ = Blind rivet 6.4x14.0
• Y₈ = Blind rivet 6.4x17.0
• Y₉ = Blind rivet 6.4x20

Flow-form rivet with countersunk head (X)

• X₁ = Flow-form rivet with countersunk head 1.3 mm to 2.5 mm clamping range
• X₂ = Flow-form rivet with countersunk head 2.3 mm to 3.5 mm clamping range
• X₃ = Flow-form rivet with countersunk head 3.35 mm to 4.1 mm clamping range
• X₄ = Flow-form rivet with countersunk head 4 mm to 5.15 mm clamping range
• X₅ = Flow-form rivet with countersunk head 5.0 mm to 6.1 mm clamping range
• X₆ = Flow-form rivet with countersunk head 6.0 mm to 7.2 mm clamping range
• X₇ = Flow-form rivet with countersunk head 7.1 mm to 8.3 mm clamping range

Flow-form rivet (W)

• W₁ = Structured flow form rivet with 3.5 mm clamping range
• W₃ = Flow-form rivet structure 3.35 mm up to 4.1 mm clamping range
• W₄ = Flow-form rivet structure 4 mm up to 5.15 mm clamping range
• W₅ = Flow-form rivet structure 5.0 mm up to 6.1 mm clamping range
• W₆ = Flow-form rivet structure 6.0 mm up to 7.2 mm clamping range
• W₇ = Flow-form rivet structure 7.1 mm up to 8.3 mm clamping range

Blind rivet (V)

• V1 = rivet 3.2x4.5
• V2 = rivet 3.2x6.5

Blind rivet (U)

• U1 = rivet 3.2x9.5

Blind rivet with countersunk head (T)

• T1 = Blind rivet with countersunk head with 3.0 mm to 5.0 mm clamping range
• T2 = Blind rivet with countersunk head with 1.5 mm to 3.0 mm clamping range

The next steps are shown on the left side of the vehicle for model 223.1 and must be performed in the same way on the right side of the vehicle in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

The graphics show the vehicle from the mechanic's perspective. At the same time, this perspective also specifies the direction in which the rivets must be placed.

Courtesy of MERCEDES-BENZ USA

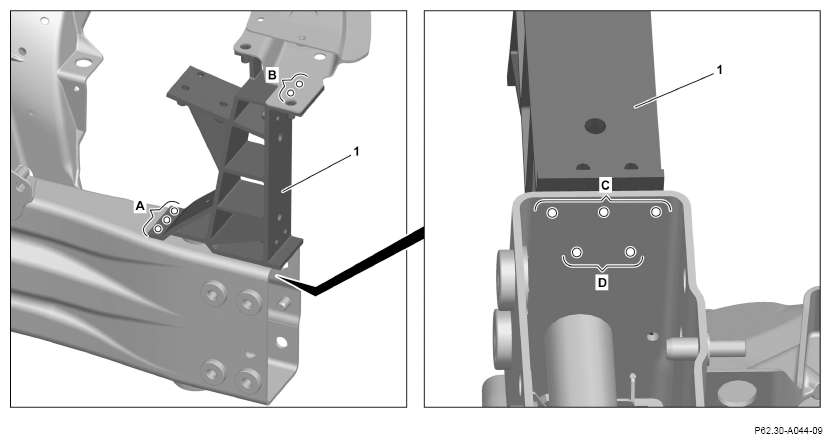

1. Install, fit and fix in place reinforcement (1).
2. Drill rivet holes in reinforcement (1) with Ø 6.7 mm (areas A, B, C).

   Drill rivet holes through existing holes in body (area B).

3. Countersink rivet holes (area B).
4. Drill holes for threaded connections in reinforcement (1) with Ø 6 mm (area D).
5. Remove reinforcement (1).
6. Deburr rivet holes and holes for threaded connections in reinforcement (1) and in the body on both sides.
7. Remove drill chips.

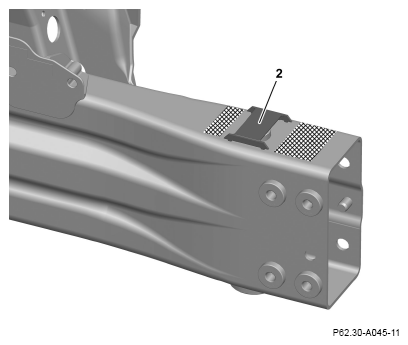

8. Insert support (2) with sealant.
9. Apply 2-component adhesive to body in cross-hatched areas.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

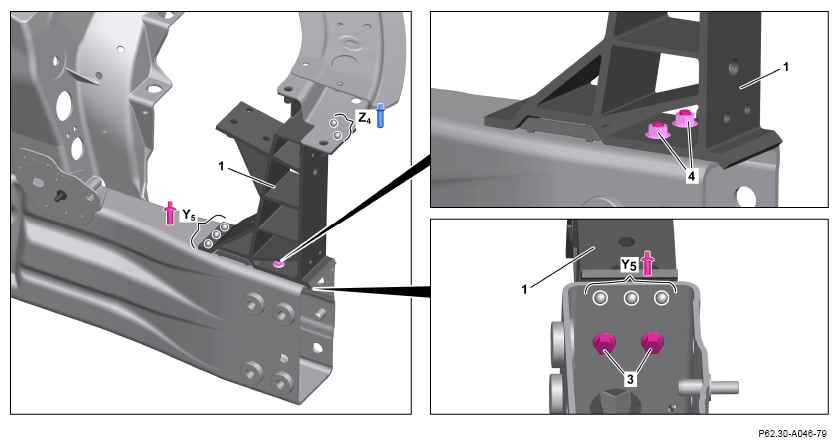

10. Install reinforcement (1) and fix in place.
11. Rivet reinforcement (1) with Ø 6.4x19.0 countersunk-head rivet (area Z₄ ).
12. Rivet stiffener (1) with Ø 6.4 rivets (areas Y₅ ).
13. Insert M6x20 screws (3) with M6 flanged nuts (4) and tighten.
