Longitudinal Member Reinforcement Installation - Ar62.20-P-1243-03S

Model 223.0/1/9

Courtesy of MERCEDES-BENZ USA

Countersunk-head rivet (Z)

• Z₁ = Countersunk-head rivet 6.4x14.0
• Z₂ = Countersunk-head rivet 6.4x15.5
• Z₃ = Countersunk-head rivet 6.4x17.0
• Z₄ = Countersunk-head rivet 6.4x19.0
• Z₅ = Countersunk-head rivet 6.4x21.0

Blind rivet (Y)

• Y₁ =Blind rivet 6.4x12.0
• Y₂ = Blind rivet 6.5x12.5
• Y₃ = blind rivet 6.5x14.5
• Y₄ =Blind rivet 6.4 M6
• Y₅ = blind rivet 6.4
• Y₆ = blind rivet 6.5X13.5
• Y₇ =Blind rivet 6.4x14
• Y₈ =Blind rivet 6.4x17.0
• Y₉ =Blind rivet 6.4x20

Flow-form rivet with countersunk head (X)

• X₁ = Flow-form rivet with countersunk head 1.3 mm to 2.5 mm clamping range
• X₂ = Flow-form rivet with countersunk head 2.3 mm to 3.5 mm clamping range
• X₃ = Flow-form rivet with countersunk head 3.35 mm to 4.1 mm clamping range
• X₄ = Flow-form rivet with countersunk head 4 mm to 5.15 mm clamping range
• X₅ = Flow-form rivet with countersunk head 5.0 mm to 6.1 mm clamping range
• X₆ = Flow-form rivet with countersunk head 6.0 mm to 7.2 mm clamping range
• X₇ = Flow-form rivet with countersunk head 7.1 mm to 8.3 mm clamping range

Flow-form rivet (W)

• W₁ = Structured flow form rivet with 3.5 mm clamping range
• W₃ = Flow-form rivet structure 3.35 mm up to 4.1 mm clamping range
• W₄ = Flow-form rivet structure 4 mm up to 5.15 mm clamping range
• W₅ = Flow-form rivet structure 5.0 mm up to 6.1 mm clamping range
• W₆ = Flow-form rivet structure 6.0 mm up to 7.2 mm clamping range
• W₇ = Flow-form rivet structure 7.1 mm up to 8.3 mm clamping range

Blind rivet (V)

• V1 = rivet 3.2x4.5
• V2 = rivet 3.2x6.5

Blind rivet (U)

• U1 = rivet 3.2x9.5

Blind rivet with countersunk head (T)

• T1 = Blind rivet with countersunk head with 3.0 mm to 5.0 mm clamping range
• T2 = Blind rivet with countersunk head with 1.5 mm to 3.0 mm clamping range

The next steps are shown on the left side of the vehicle for model 223.1 and must be performed in the same way on the right side of the vehicle in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

The graphics show the vehicle from the mechanic's perspective. At the same time, this perspective also specifies the direction in which the rivets must be placed.

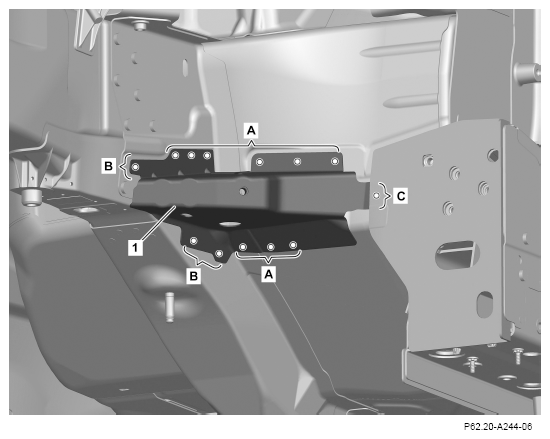

1. Install longitudinal member reinforcement (1), fit, and fix in place.
2. Drill rivet holes in longitudinal member reinforcement (1) with Ø 6.7 mm bit (areas A, B, C).

   Drill rivet holes through existing holes in the longitudinal member reinforcement (1) (areas B). Drill rivet holes through existing hole in body (area C).

3. Remove longitudinal member reinforcement (1).
4. Deburr rivet holes in the longitudinal member reinforcement (1) and body on both sides.
5. Remove drill chips.

   Courtesy of MERCEDES-BENZ USA

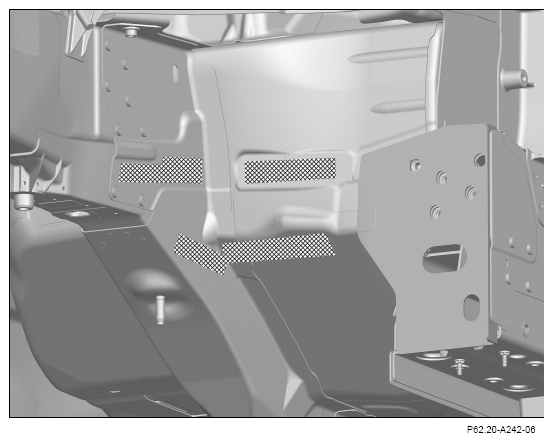

6. Apply 2-component adhesive to body in cross-hatched areas.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

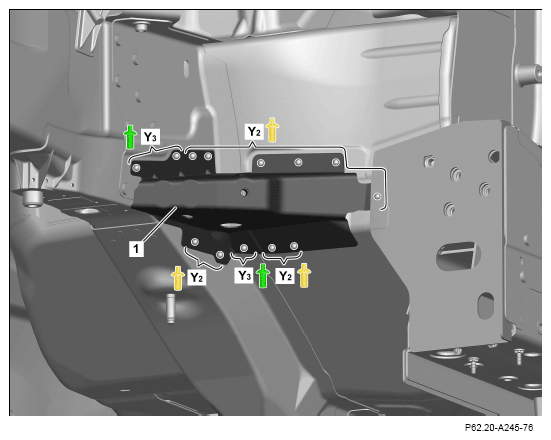

7. Install longitudinal member reinforcement (1) and fix in place.
8. Rivet longitudinal member reinforcement (1) with rivets Ø 6.5x12.5 (areas Y₂ ).
9. Rivet longitudinal member reinforcement (1) with rivets Ø 6.5x14.5 (areas Y₃ ).

   Courtesy of MERCEDES-BENZ USA
