Adaptive Brake Function Schematic - PE42.47-P-2500-97B
Model 206, 214, 223, 232, 236, 254, 294, 295, 296, 297
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Brake fluid level switch, status | 22A |
| 1 | Brake fluid level switch, status | 8D |
| 1 | Brake fluid level switch, status | 22E |
| 1 | Brake fluid level switch, status | 14D |
| 10 | Drivetrain operational, signal | 22E |
| 11 | Accelerator pedal sensor, signal | 22E |
| 12 | Gear range, status | 22D |
| 13 | Seat belt buckle restraint system switch, status | 22F |
| 14 | Speed, turn rate and lateral acceleration, signal | 22F |
| 15 | Electric parking brake switch, status | 22G |
| 16 | Wheel speed, signal | 22H |
| 17 | Wheel angle, signal | 22J |
| 18 | Braking torque increase, request | 26J |
| 18 | Braking torque increase, request | 22K |
| 19 | Brake lights, request | 36A |
| 19 | Brake lights, request | 42A |
| 19 | Brake lights, request | 30C |
| 2 | Door rotary tumbler switch, status | 22A |
| 20 | Instrument cluster, message | 36E |
| 20 | Instrument cluster, message | 30C |
| 21 | Image data, signal | 43C |
| 22 | Service brake, status | 46H |
| 22 | Service brake, status | 26F |
| 23 | ESP® torque reduction, request | 46H |
| 24 | Downshift suppression, request | 45H |
| 25 | Gear range "P", request | 45H |
| 26 | Steering assistance, request | 48J |
| 27 | Braking torque reduction, request | 26J |
| 28 | Brake unit control unit, status | 25F |
| 3 | Trailer recognition, status | 22A |
| 4 | Wiper status, signal | 22B |
| 5 | Dynamometer mode, status | 22B |
| 6 | ESP® OFF, request | 22B |
| 7 | Steering wheel angle, signal | 14E |
| 8 | Pedal angle sensor, signal | 26F |
| 8 | Pedal angle sensor, signal | 22B |
| 9 | Engine running, signal | 22D |
| A26/17 | Head unit | 39G |
| A40/18 | Instrument cluster display | 44D |
| A40/18 | Instrument cluster display | 44G |

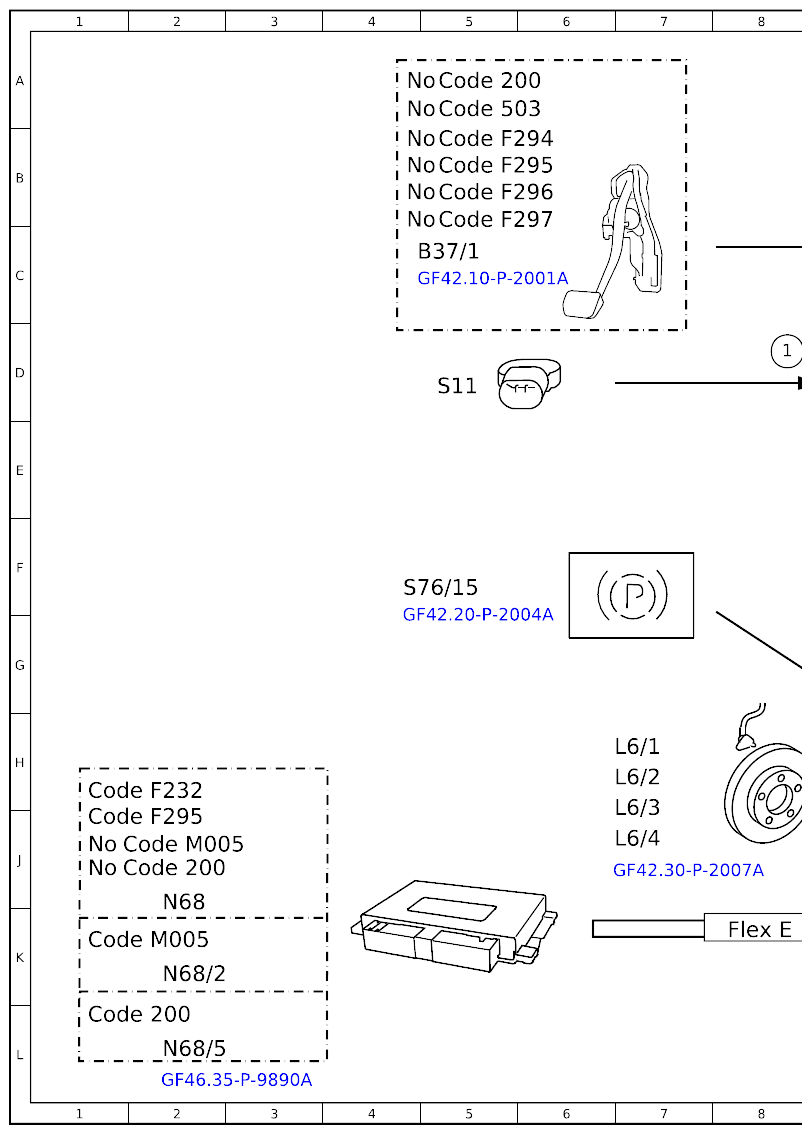

| B37/1 | Pedal angle sensor | 4C |
| CAN B1 | CAN 1 for vehicle interior | 41B |
| Code 200 | Conditionally automated driving | 5A |
| Code 200 | Conditionally automated driving | 1L |
| Code 200 | Conditionally automated driving | 24D |
| Code 200 | Conditionally automated driving | 25C |
| Code 200 | Conditionally automated driving | 1J |
| Code 200 | Conditionally automated driving | 51L |
| Code 200 | Conditionally automated driving | 52J |
| Code 503 | Pre-installation for Remote Parking Pilot | 5A |
| Code 503 | Pre-installation for Remote Parking Pilot | 25C |
| Code 503 | Pre-installation for Remote Parking Pilot | 24D |
| Code F206 | Model series 206 | 38C |
| Code F214 | Model series 214 | 38E |
| Code F223 | Model series 223 | 38C |
| Code F232 | Model series 232 | 1H |
| Code F232 | Model series 232 | 51H |
| Code F232 | Model series 232 | 38C |
| Code F254 | Model series 254 | 24B |
| Code F254 | Model series 254 | 38D |
| Code F294 | Model series 294 | 5B |
| Code F294 | Model series 294 | 38D |
| Code F295 | Model series 295 | 5B |
| Code F295 | Model series 295 | 1J |
| Code F295 | Model series 295 | 51J |
| Code F295 | Model series 295 | 38D |
| Code F296 | Model series 296 | 5B |
| Code F296 | Model series 296 | 24B |
| Code F296 | Model series 296 | 38D |
| Code F297 | Model series 297 | 5C |
| Code F297 | Model series 297 | 38E |
| Code M005 | 4MATIC | 1J |
| Code M005 | 4MATIC | 1K |
| Code M005 | 4MATIC | 52J |
| Code M005 | 4MATIC | 51K |
| Ethernet | Ethernet | 35E |
| Ethernet | Ethernet | 35B |
| Ethernet | Ethernet | 13D |
| Flex E | Chassis FlexRay | 21B |
| Flex E | Chassis FlexRay | 29C |
| Flex E | Chassis FlexRay | 32H |
| Flex E | Chassis FlexRay | 25G |
| Flex E | Chassis FlexRay | 32K |
| Flex E | Chassis FlexRay | 21K |
| Flex E | Chassis FlexRay | 21L |
| Flex E | Chassis FlexRay | 21E |
| Flex E | Chassis FlexRay | 21G |
| Flex E | Chassis FlexRay | 13F |
| Flex E | Chassis FlexRay | 8K |
| Flex E | Chassis FlexRay | 14K |
| HSVL | High-speed video link | 42C |
| HSVL | High-speed video link | 42F |
| L6/1 | Left front axle rpm sensor | 6H |
| L6/2 | Right front axle rpm sensor | 6H |
| L6/3 | Left rear axle rpm sensor | 6J |
| L6/4 | Right rear axle rpm sensor | 6J |

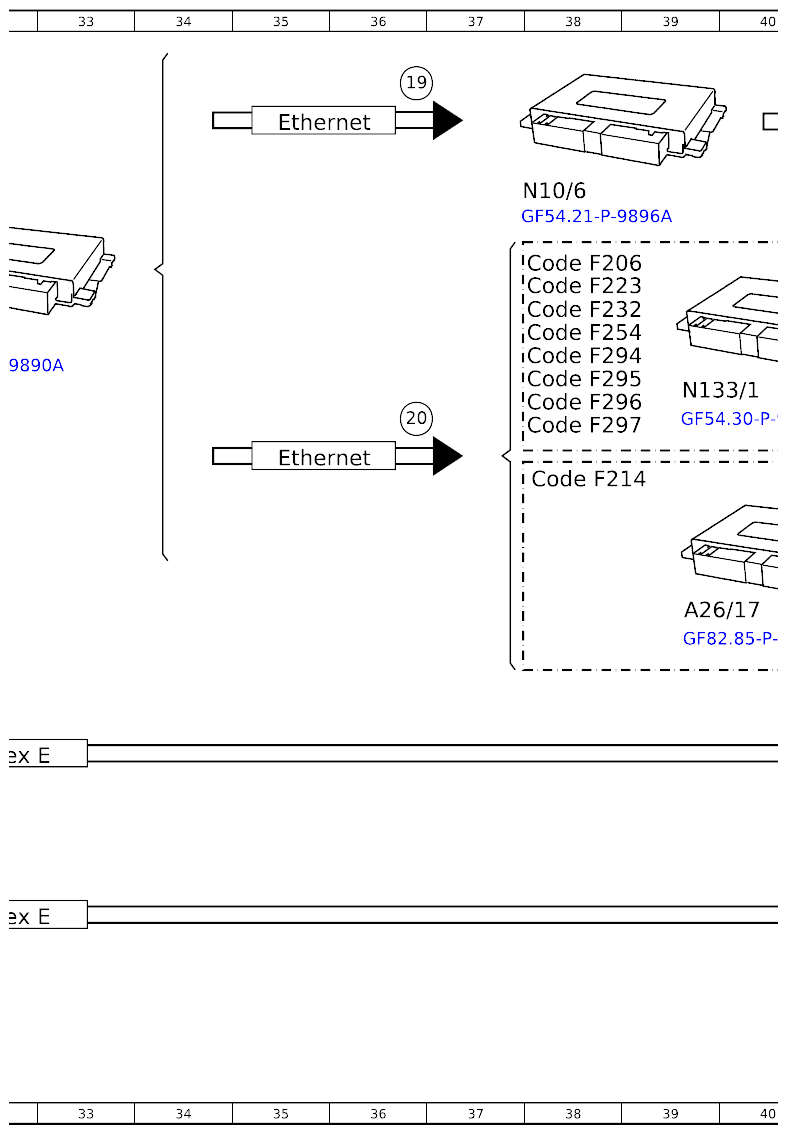

| N10/6 | Front SAM control unit | 37B |
| N10/6 | Front SAM control unit | 9E |

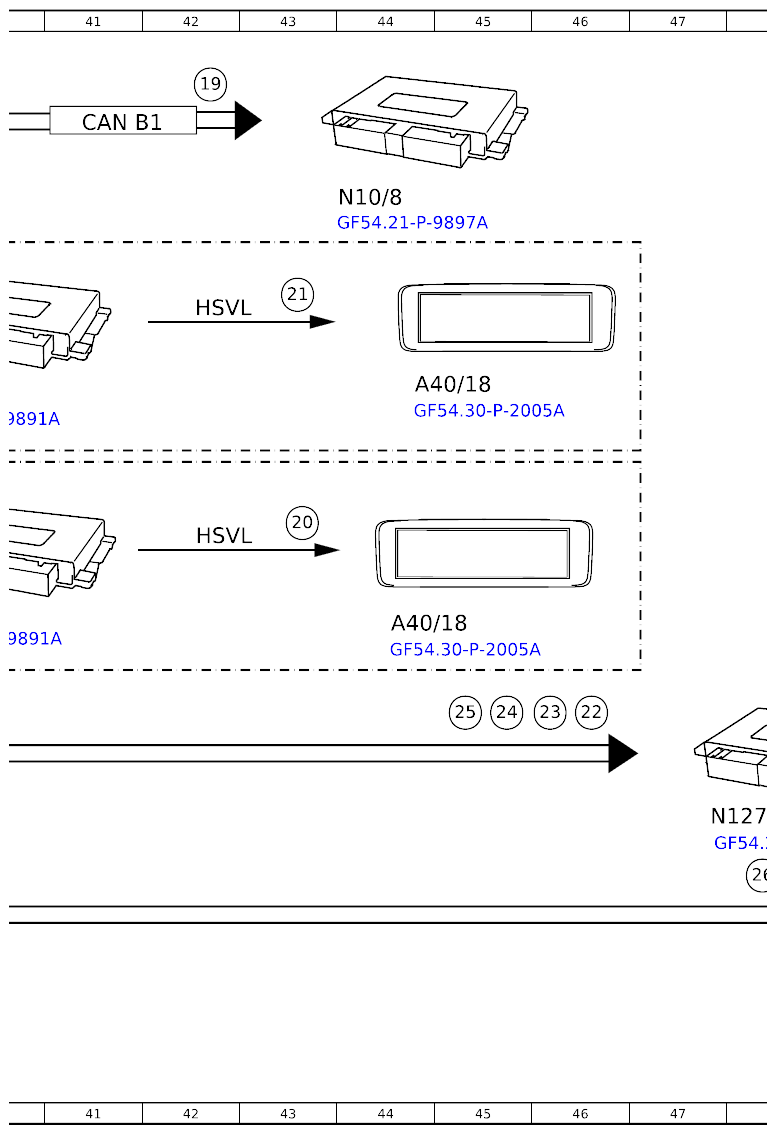

| N10/8 | Rear SAM control unit | 44B |
| N127 | Drivetrain control unit | 48J |
| N127 | Drivetrain control unit | 15E |
| N133/1 | Instrument cluster control unit | 39D |
| N2/5 | Supplemental restraint system control unit | 15F |
| N30/10 | Electronic Stability Program control unit | 25D |

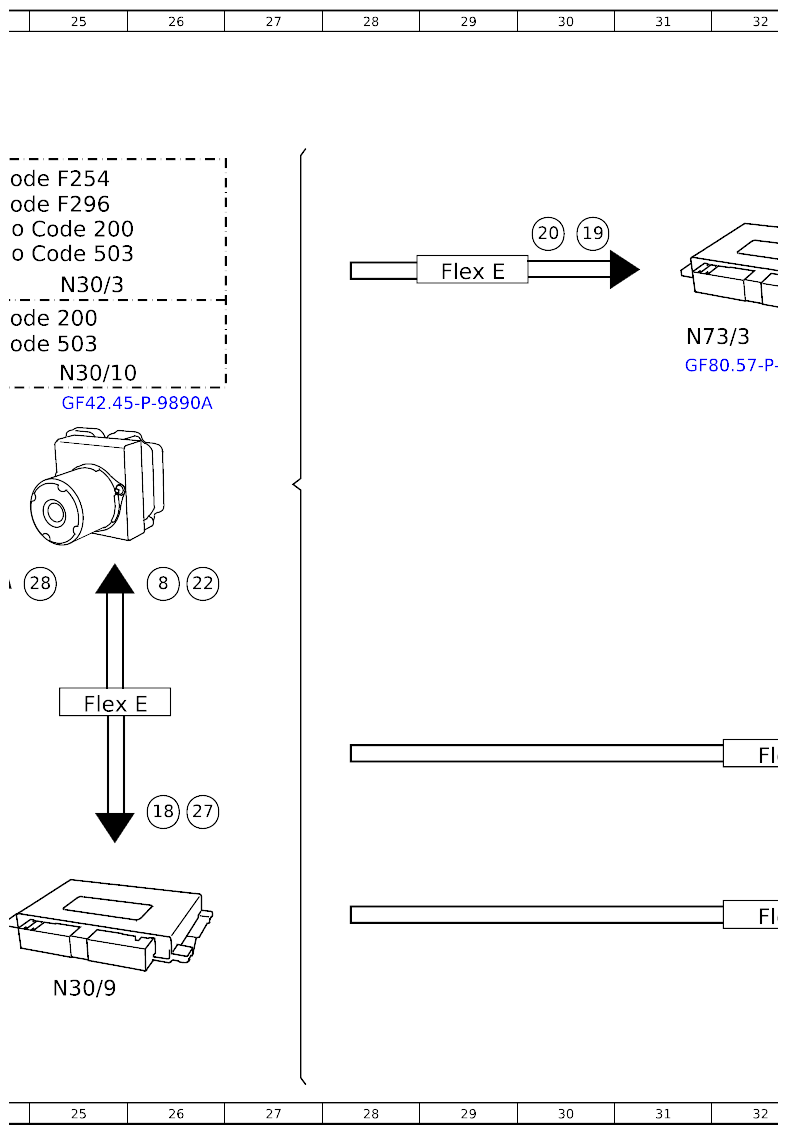

| N30/3 | Electronic Stability Program control unit | 25C |
| N30/9 | Brake unit control unit | 25K |
| N62/4 | Driver assistance systems control unit | 15L |

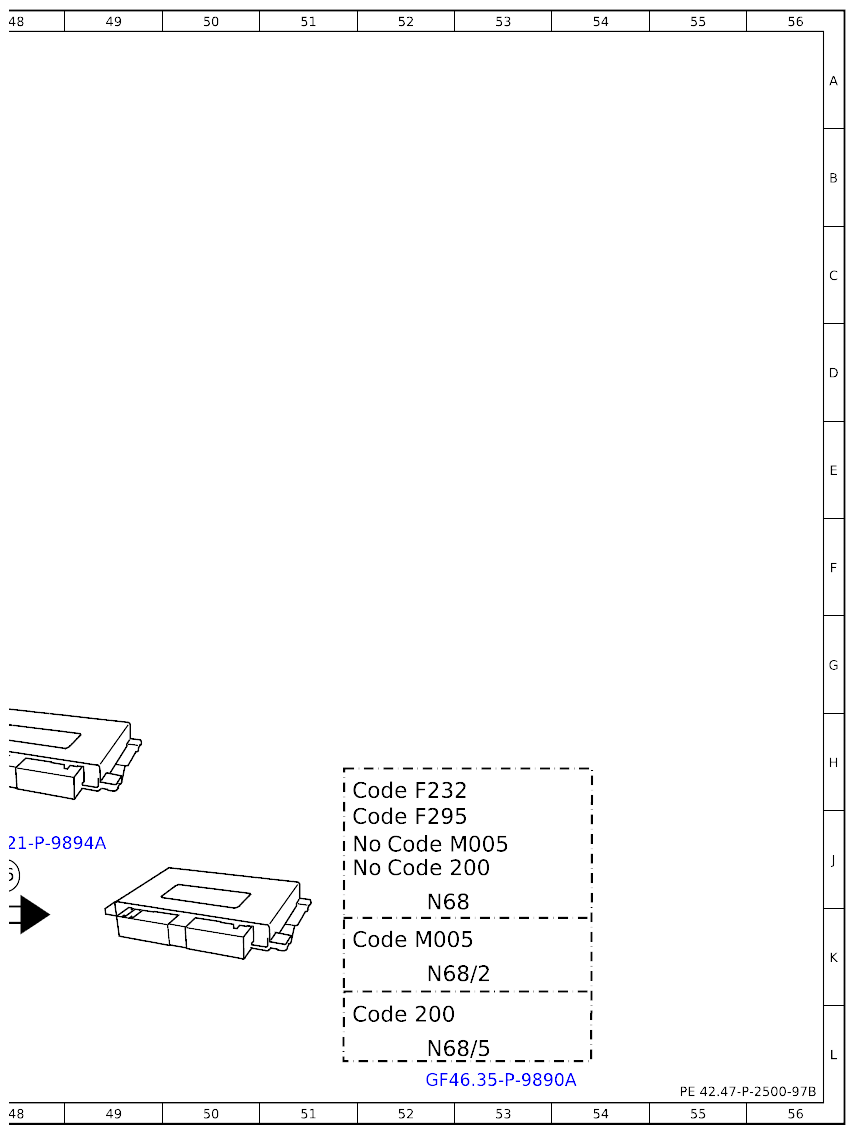

| N68 | Electrical power steering control unit | 2K |
| N68 | Electrical power steering control unit | 52K |
| N68/2 | Electric steering control unit | 2K |
| N68/2 | Electric steering control unit | 52K |
| N68/5 | Power steering control unit | 2L |
| N68/5 | Power steering control unit | 52L |
| N73/3 | Electronic ignition switch control unit | 31D |
| N73/3 | Electronic ignition switch control unit | 15B |

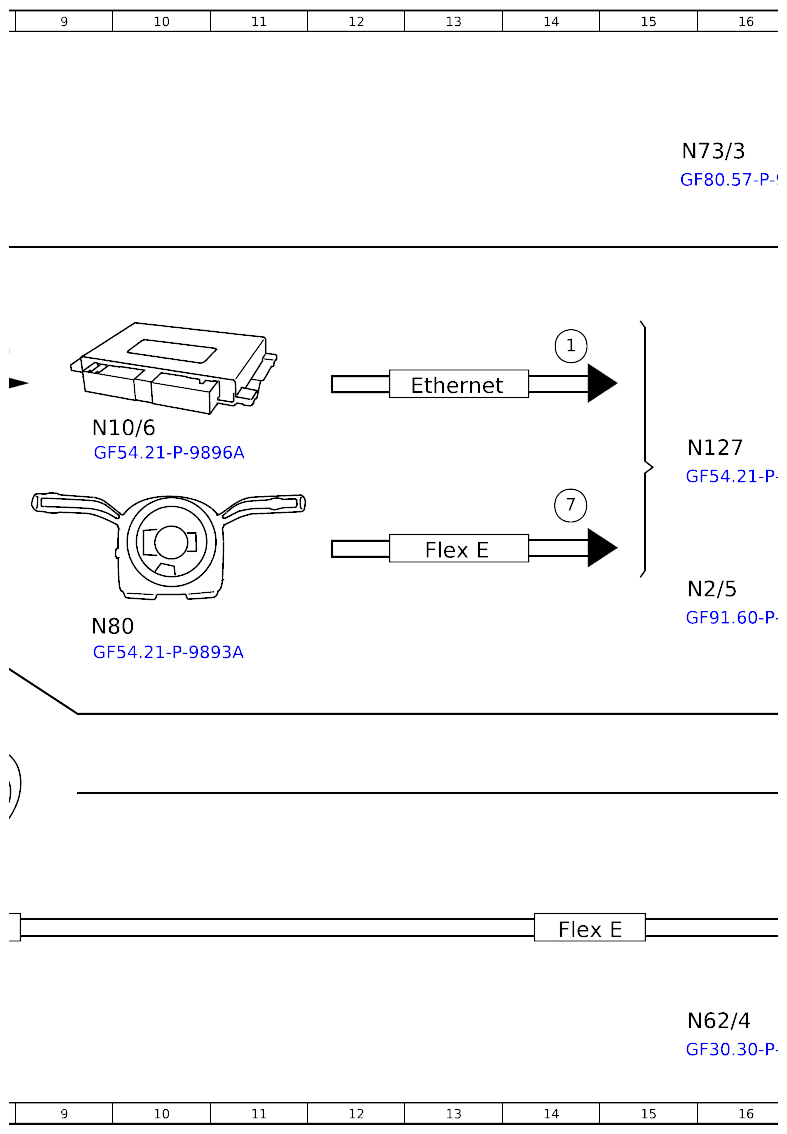

| N80 | Steering column module control unit | 9G |
| S11 | Brake fluid level switch | 5D |
| S76/15 | Electric parking brake switch | 4F |

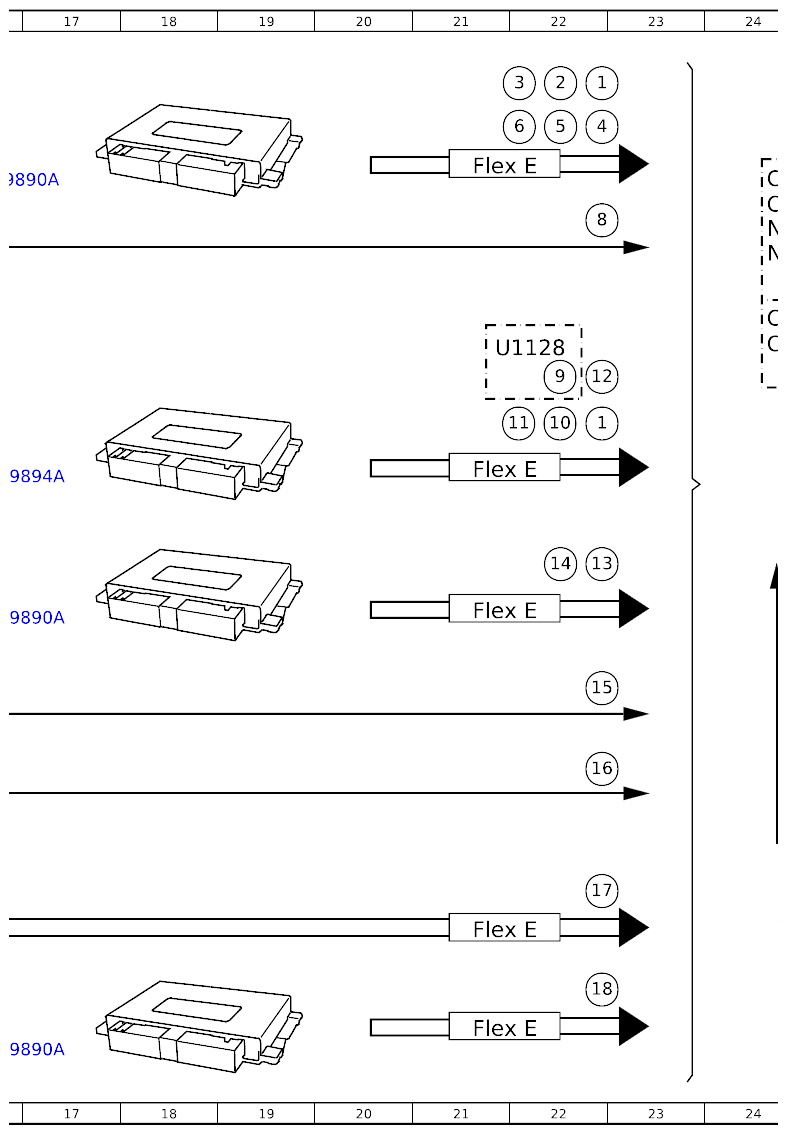

| U1128 | Valid for combustion engine | 21D |
