Remove/Install Electric Parking Brake Actuator Motor - AR42.20-P-0600S
Model 223
| Notice | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Move rear axle brakepads into assembly position. | Do not operate the service brake while "Move to assembly position" is shown. Otherwise, the spindle in the brake caliper will be damaged. |
AR42.10-P-1710-01S |
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove corresponding rear wheel. | AR40.10-P-1102A | |
| 4 | Unhook electric line (1) from right electric parking brake actuator motor (M76/2). | When removing right electric parking brake actuator motor (M76/2). | |
| 5 | Remove brake hose from holder (3). | ||
| 6 | Disconnect electrical connector from left electric parking brake actuator motor (M76/1) or right electric parking brake actuator motor (M76/2). | ||
| 7 | Unscrew screws (2) and remove left electric parking brake actuator motor (M76/1) or right electric parking brake actuator motor (M76/2) with holder (3). | ||
| *BA42.10-P-1005-12Y | |||

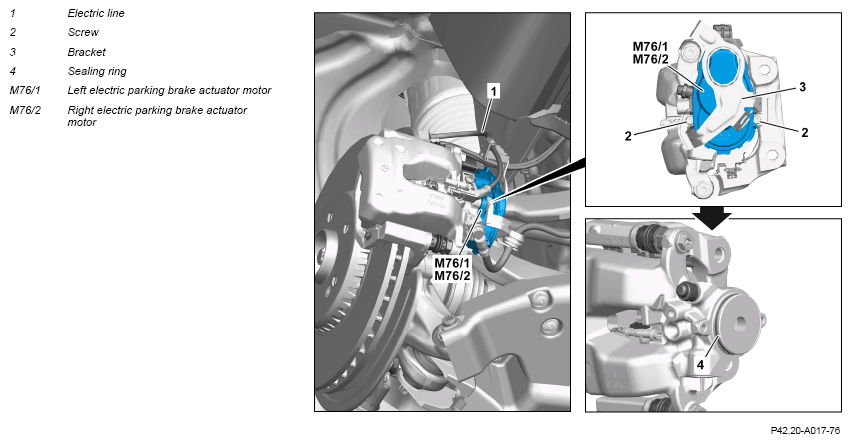

| Fig 1 | |||
| 8 | Install in the reverse order. | ||
| 9 | Perform brake test on test stand. | ||
| AP42.00-P-4290BS |
REAR AXLE BRAKE CALIPER
| Number | Designation | Model 223 except code Z07 | Model 223 with code Z07 | |
|---|---|---|---|---|
| BA42.10-P-1005-12Y | Screw, actuator motor to brake caliper | Nm | 12 | 12 |
