RPM Sensor, Component Description - GF42.30-P-4552A

Model 223

Courtesy of MERCEDES-BENZ USA

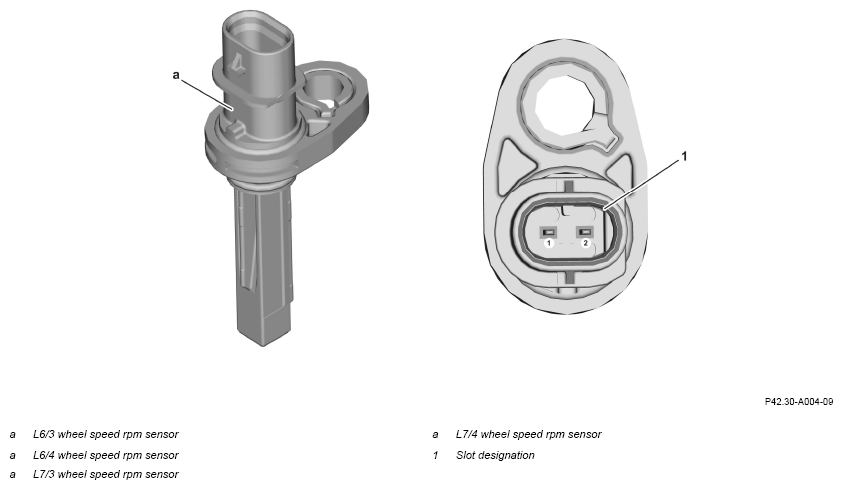

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

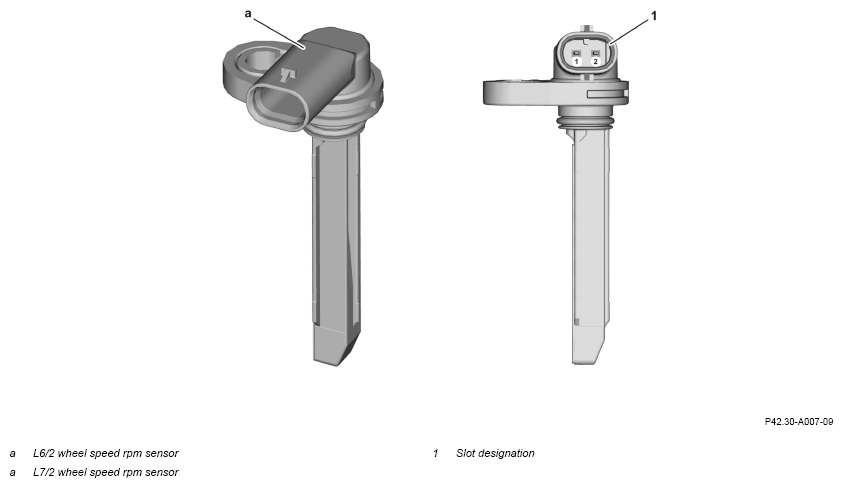

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

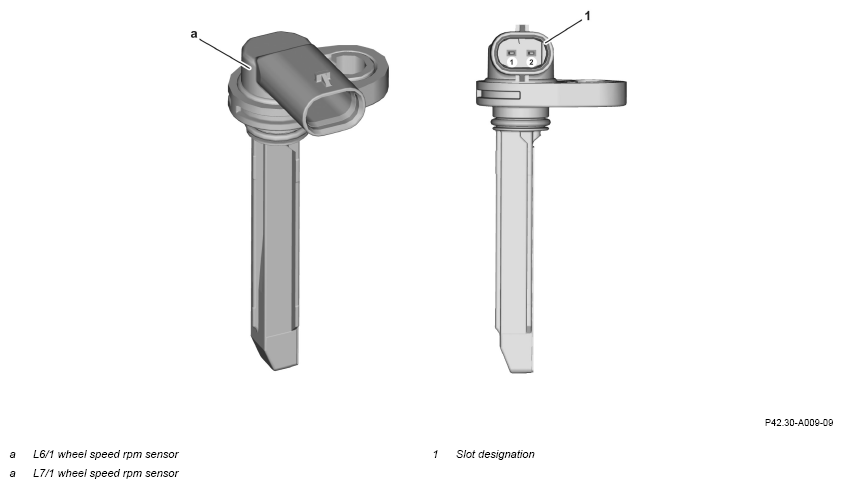

The numbers on the pins indicate the pin numbering of the slots.

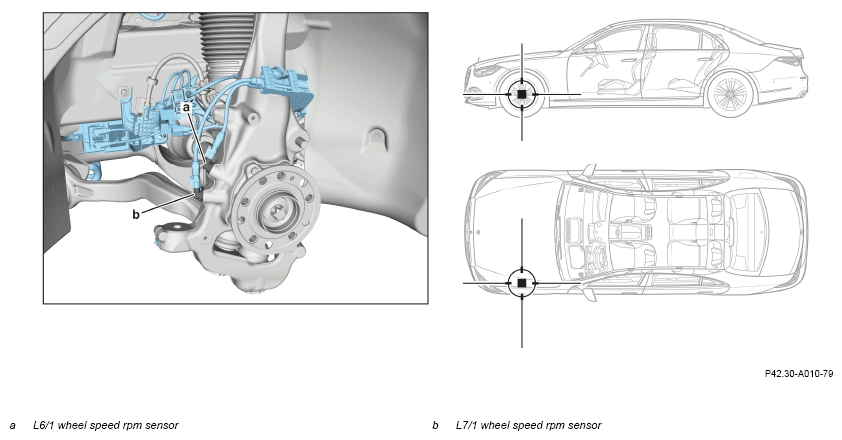

Fig 1: Wheel/Axle RPM Sensor Components Location - Model 223 (Front Left Shown)

Courtesy of MERCEDES-BENZ USA

Location on left

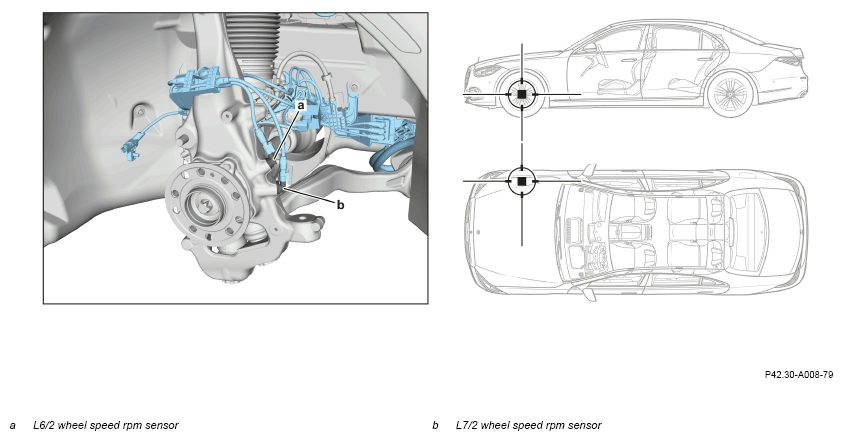

Fig 2: Wheel/Axle RPM Sensor Components Location - Model 223 (Front Right Shown)

Courtesy of MERCEDES-BENZ USA

Location on right

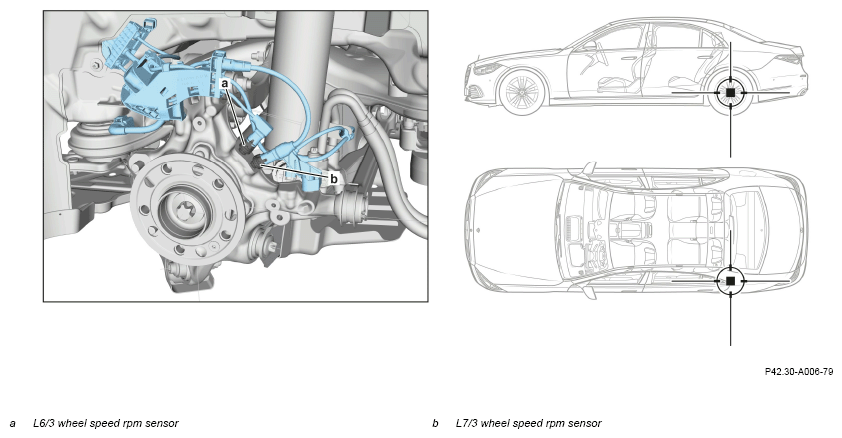

Fig 3: Wheel/Axle RPM Sensor Components Location - Model 223 (Left Rear Shown)

Courtesy of MERCEDES-BENZ USA

Location

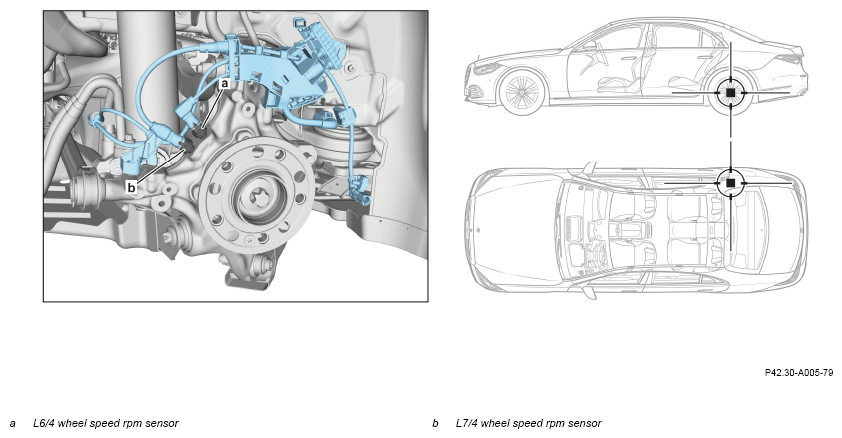

Fig 4: Wheel/Axle RPM Sensor Components Location - Model 223 (Right Rear Shown)

Courtesy of MERCEDES-BENZ USA

Location
