Rear Roof Frame For Prepare Installation - Ar65.20-P-1008-02S

Model 223.0/1/9

The following operation steps are shown on model 223.1.

The superordinate service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

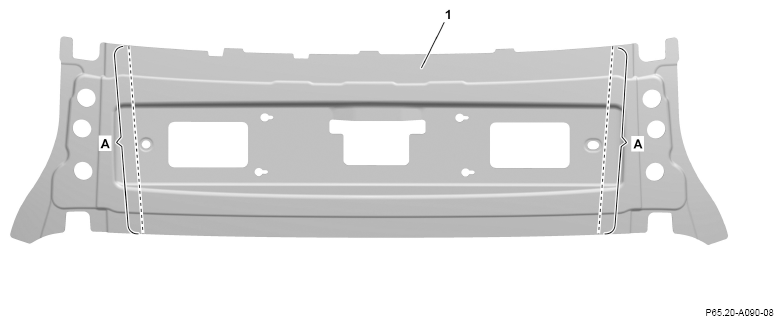

1. Mark separating points at roof frame upper section (1) and cut (areas A).

   Take over separating point from vehicle and add approx. 50 mm for the fitting.

   Courtesy of MERCEDES-BENZ USA

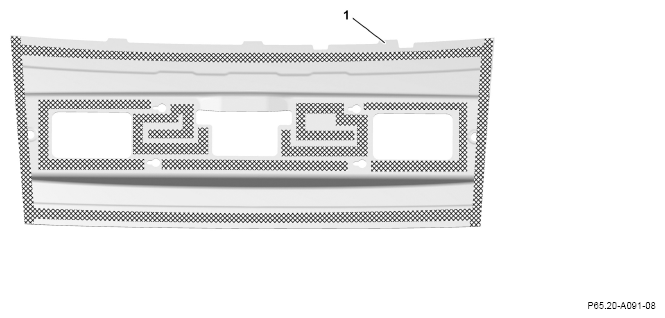

2. Grind mating surfaces at roof frame upper section (1) down to bare metal in cross-hatched areas.

   Observe pretreatment of bonding surfaces.

3. Remove grinding dust.

   Courtesy of MERCEDES-BENZ USA

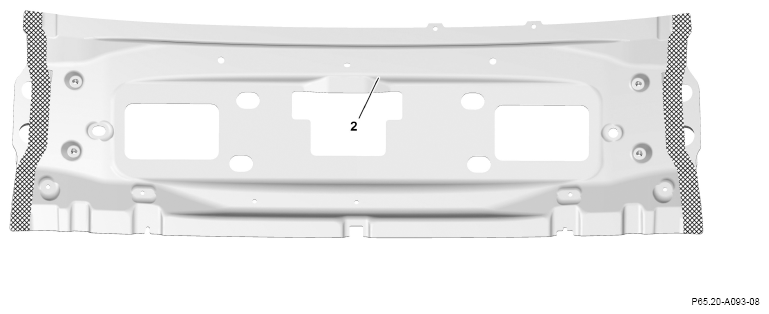

4. Grind mating surfaces at roof frame lower section (2) down to bare metal in cross-hatched areas.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

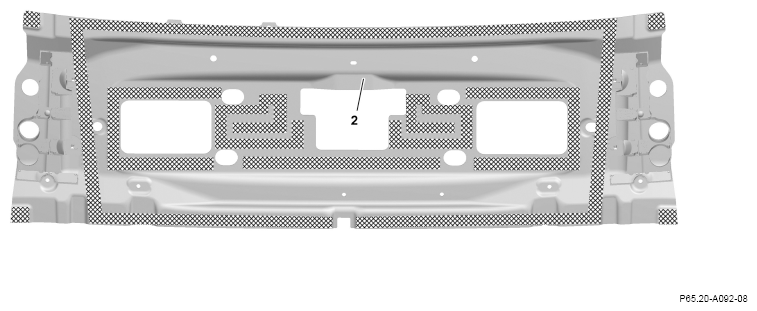

5. Grind mating surfaces at roof frame lower section (2) down to bare metal in cross-hatched areas.

   Observe pretreatment of bonding surfaces.

6. Remove grinding dust.
