Front Roof Frame Preparation For Installation - Ar65.20-P-1006-04S

Model 223.0/1/9

The next steps are shown on model 223.1.

The superordinate service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

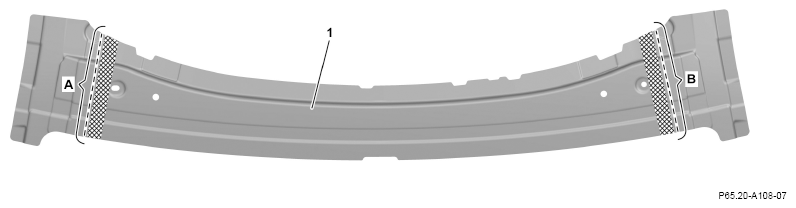

1. Mark separating points on roof frame upper section (1) and separate (areas A, B).

   Transfer separation points from vehicle.

2. Grind mating surfaces on roof frame upper section (1) down to bare metal in cross-hatched areas.

   Courtesy of MERCEDES-BENZ USA

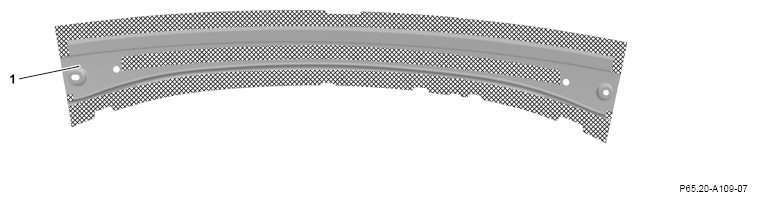

   Underside of roof frame upper section (1)

3. Grind mating surfaces on roof frame upper section (1) down to bare metal in cross-hatched areas.

   Observe pretreatment of bonding surfaces.

4. Remove grinding dust.

   Courtesy of MERCEDES-BENZ USA

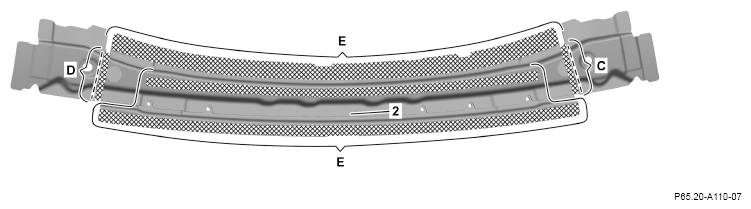

5. Mark separating points on roof frame lower section (2) and separate (areas C, D).

   Transfer separation points from vehicle.

6. Grind mating surfaces on roof frame lower section (2) down to bare metal in cross-hatched areas.

   Observe pretreatment of bonding surfaces (areas E).

   Courtesy of MERCEDES-BENZ USA

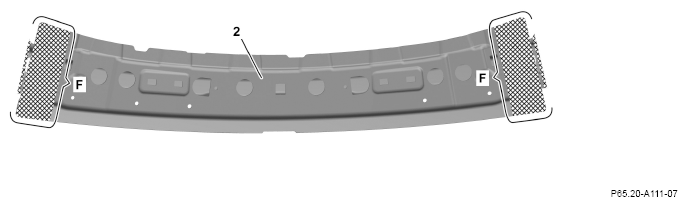

   Underside of roof frame lower section (2)

7. Grind mating surfaces on roof frame lower section (2) down to bare metal in cross-hatched areas.

   Observe pretreatment of bonding surfaces (areas F).

8. Remove grinding dust.
