Remove/Install Telephone Antenna Splitter - AR82.70-P-8956S

Model 223

with code 596 (Heat-insulating and infrared-refl. laminated glass all-round)

Model 223

with code 597 (Heated windshield)

Model 223

with code 856 (Telephone handset in rear armrest)

Model 223

with code Z07 (B7 armoring on special protection version)

Model 223

with code Z17 (Heated windshield)

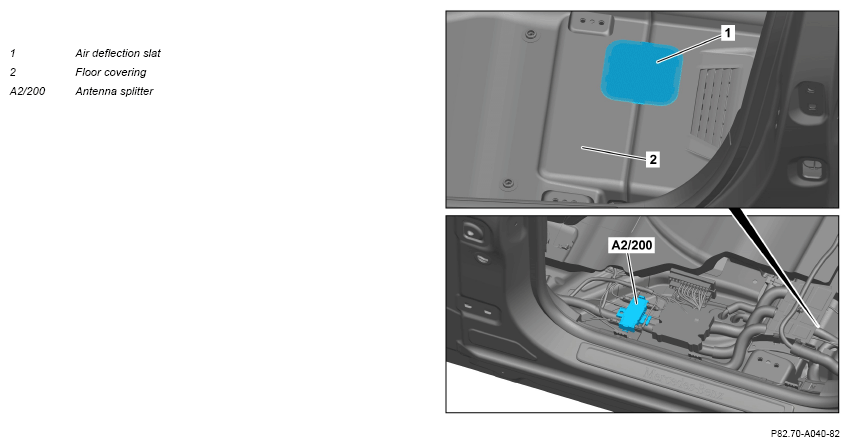

Shown with code 582 (Air conditioning system in rear passenger compartment) and code 596 (Heating ins. and infrared refl. laminated glass all-round)

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove driver seat.		AR91.10-P-1000S
2	Remove air deflection slat (1).	Model 223 with code 582 (Air conditioning, rear) with code 596 (Heat-insulating and infrared-refl. laminated glass all-round) Model 223 with code 582 (Air conditioning, rear) with code 597 (Heated windshield) Model 223 with code 582 (Air conditioning, rear) with code 856 (Telephone handset in rear armrest) Model 223 with code 582 (Air conditioning, rear) with code Z07 (B7 armoring on special protection version) Model 223
		with code 582 (Air conditioning, rear) with code Z17 (Heated windshield)
3	Remove driver floor mat.
4	Unclip door sill.
5	Fold floor covering (2) on driver's side to one side until the antenna splitter (A2/200) is accessible.
6	Disconnect electrical connector from antenna splitter (A2/200).
7	Remove antenna splitter (A2/200).
8	Install in the reverse order.
