Remove/Install Mobile Phone Cradle - AR82.70-P-0008S
Model 223
with code 898 (Wireless telephone charging in rear passenger compartment)
except code 224 (Individual rear seats)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Fold armrest (1) forward. | ||
| 3 | Unhook fabric cover from rear armrest (1). | ||
| 4 | Remove screw/bolts (2). | ||
| 5 | Open flap of stowage compartment (3). | ||
| 6 | Remove lock of stowage compartment (3) and unscrew screw (4) underneath. | ||

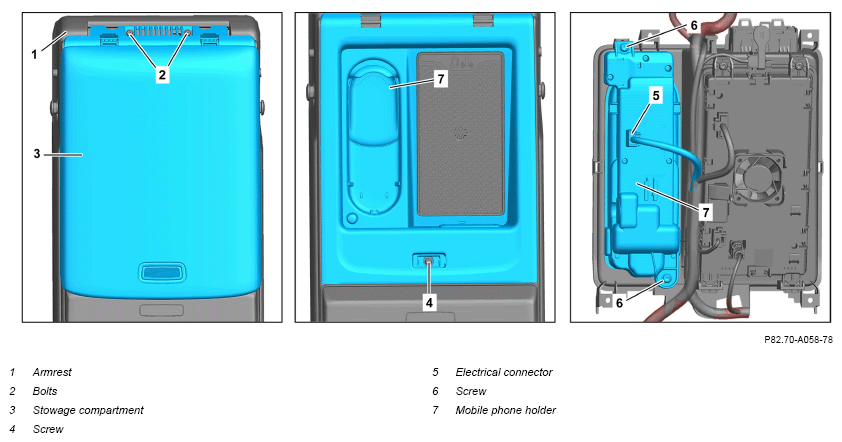

| 7 | Remove stowage compartment (3) and tilt upward with electrical lines connected. | Fig 1 | |
| 8 | Release and disconnect electrical connector (5). | ||
| 9 | Unscrew screws (6) and remove mobile phone cradle (7). | ||
| 10 | Install in the reverse order. |
