Remove/Install Driver's Side Wi-Fi Antenna On Instrument Panel - AR82.85-P-0023S
Model 223
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||

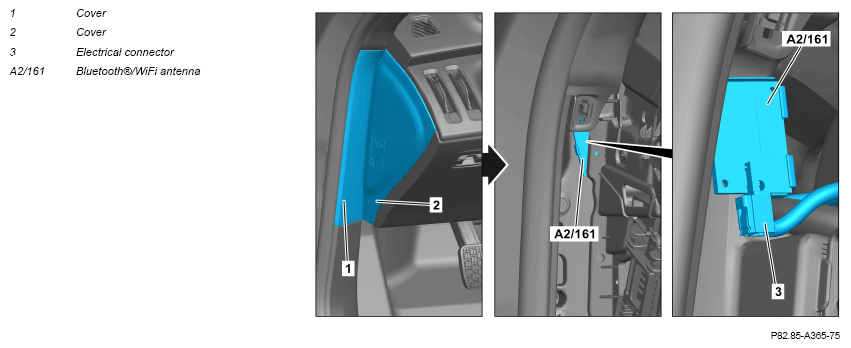

| 2 | Unclip cover (1) under A-pillar. | ||
| 3 | Unclip cover (2). | ||
| 4 | Unclip Bluetooth®/Wi-Fi antenna (A2/161) with holder and remove until the electrical connector (3) is accessible. | ||
| 5 | Release and disconnect electrical connection (3). | ||
| 6 | Remove Bluetooth®/Wi-Fi antenna (A2/161). | ||
| 7 | Install in the reverse order. |
