Remove/Install Antenna Amplifier On C-Pillar - AR82.62-P-8318S
Model 223
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove corresponding trim from C-pillar. | AR68.30-P-4490S | |

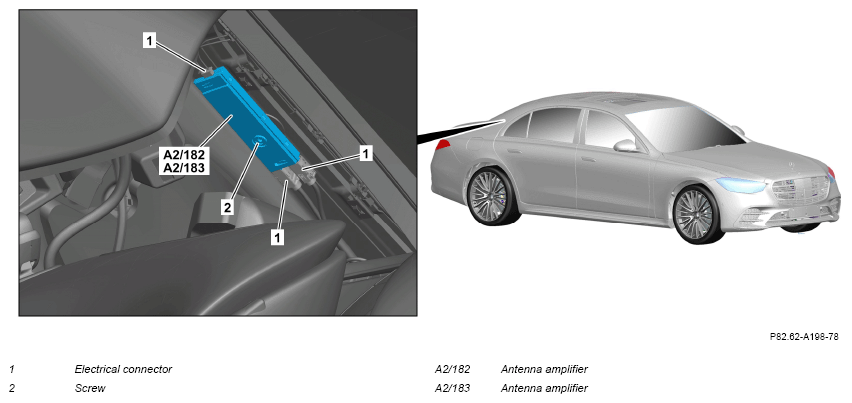

| 3 | Release and disconnect electrical connections (1). | ||
| 4 | Remove bolt (2). | ||
| 5 | Unclip antenna amplifier (A2/182, A2/183) from C-pillar and remove. | ||
| 6 | Install in the reverse order. |
