Mobile Radio Antenna Amplifier/Compensator, Component Description - GF82.70-P-3116A

Model 223

with code 856 (Telephone handset in rear armrest)

Model 223

with code 899 (Front wireless telephone charging and antenna)

Courtesy of MERCEDES-BENZ USA

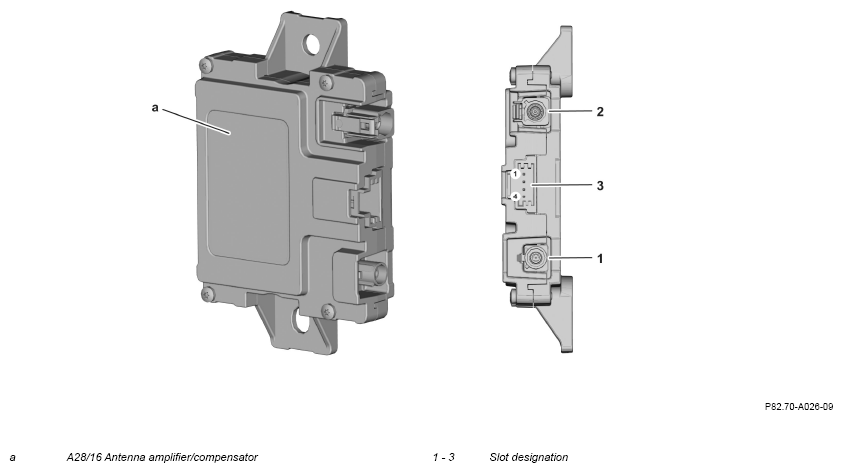

Illustration valid for model 223 with code 899

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

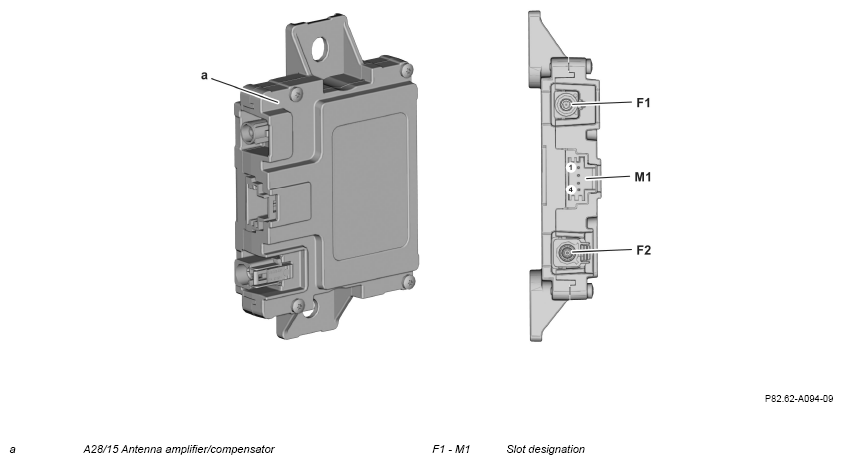

Illustration valid for model 223 with code 856

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

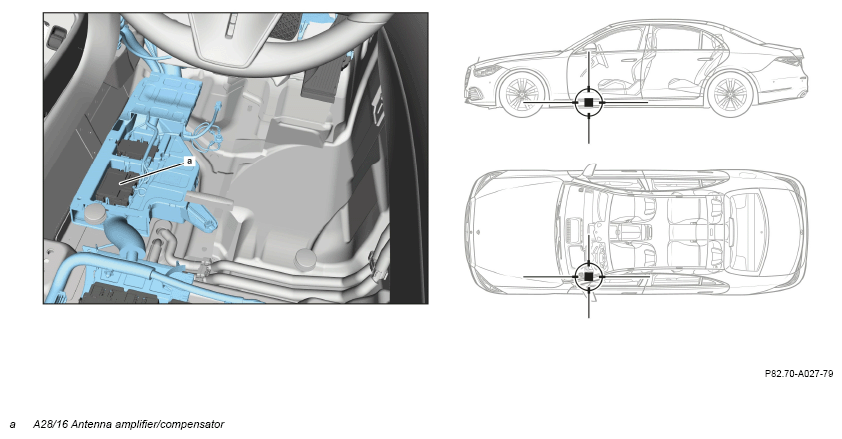

Location for model 223 with code 899

Courtesy of MERCEDES-BENZ USA

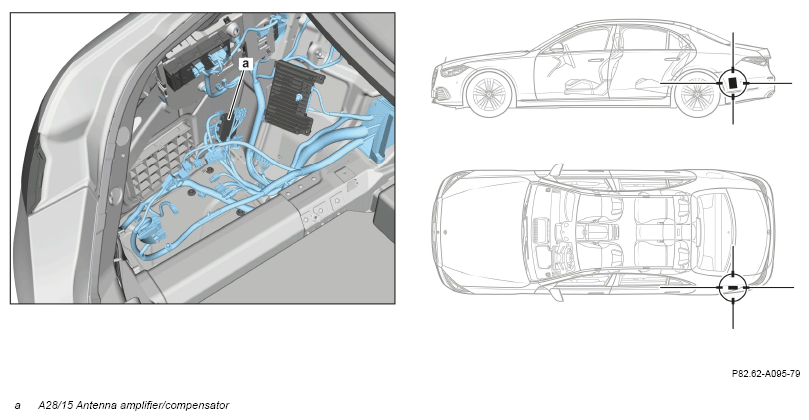

Location for model 223 with code 856
