Mobile Phone Cradle Lamp, Component Description - GF82.70-P-0010A

Model 223

Courtesy of MERCEDES-BENZ USA

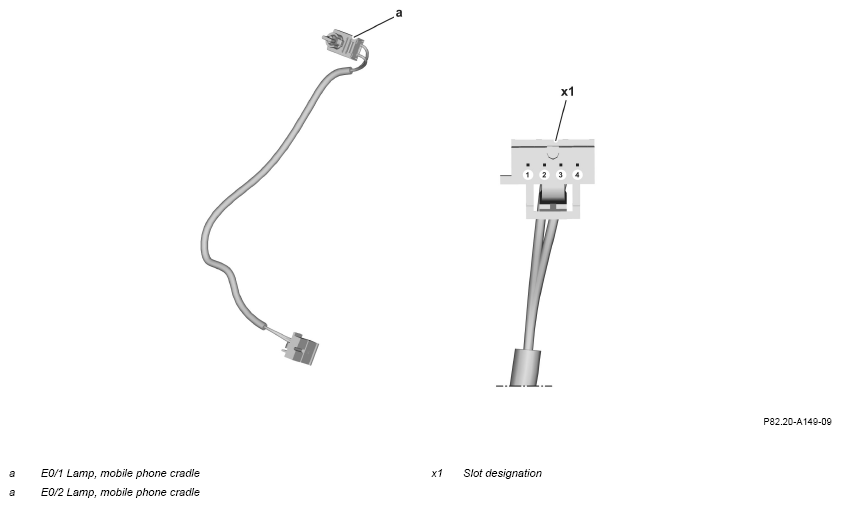

Illustration valid for model 223

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

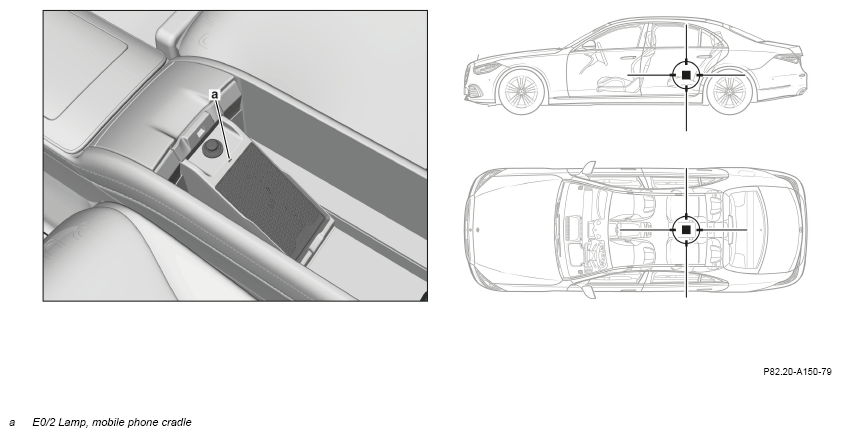

Layout for model 223 with code 582

Courtesy of MERCEDES-BENZ USA

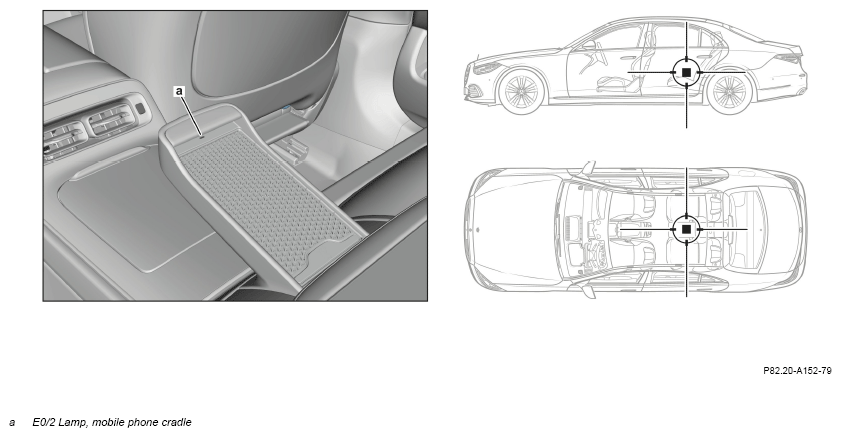

Layout for model 223 except code 582

Courtesy of MERCEDES-BENZ USA

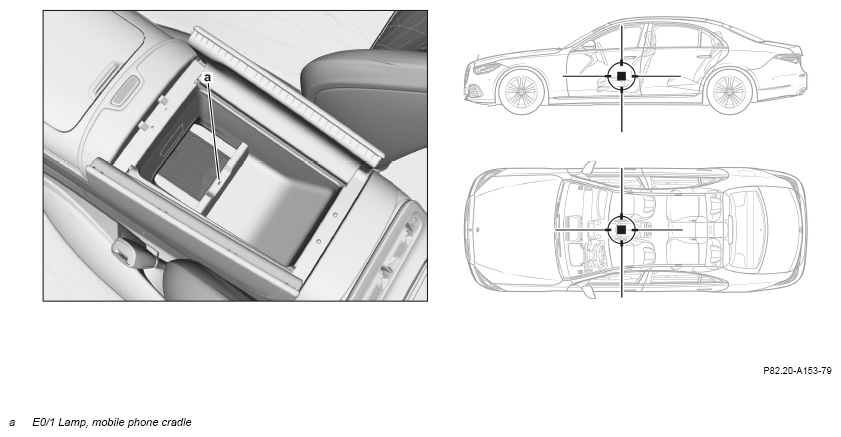

Layout for model 223 with code 224 except code 326

Courtesy of MERCEDES-BENZ USA

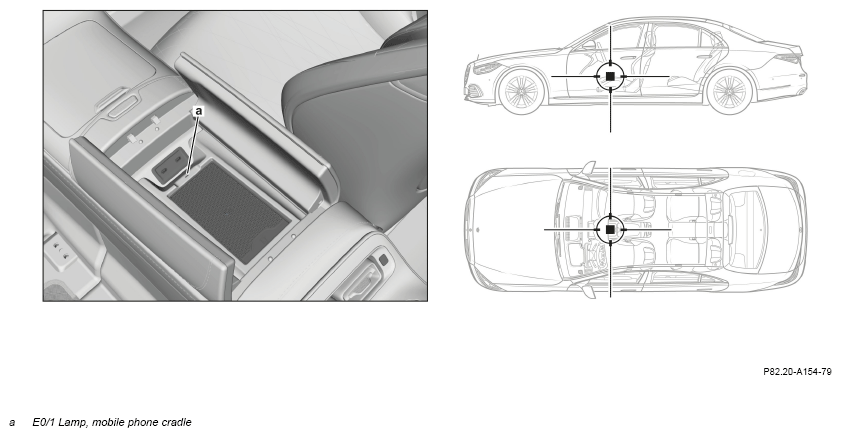

Layout for model 223 with code 326

Courtesy of MERCEDES-BENZ USA

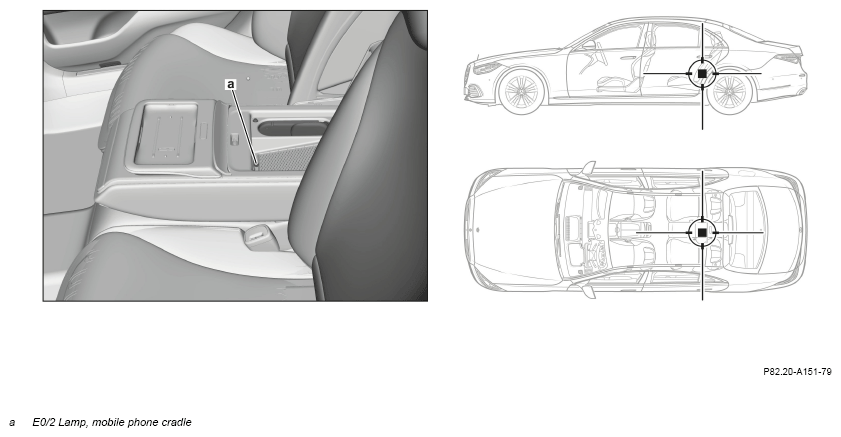

Layout for model 223 except code 224
