Center Console Illumination, Component Description - GF82.20-P-5120A
Model 223
 Courtesy of MERCEDES-BENZ USA
|

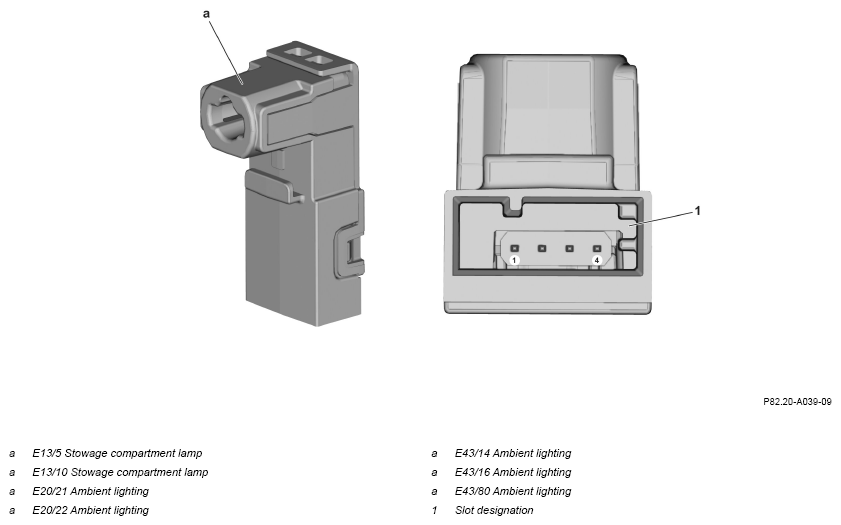

Illustration valid for model 223
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

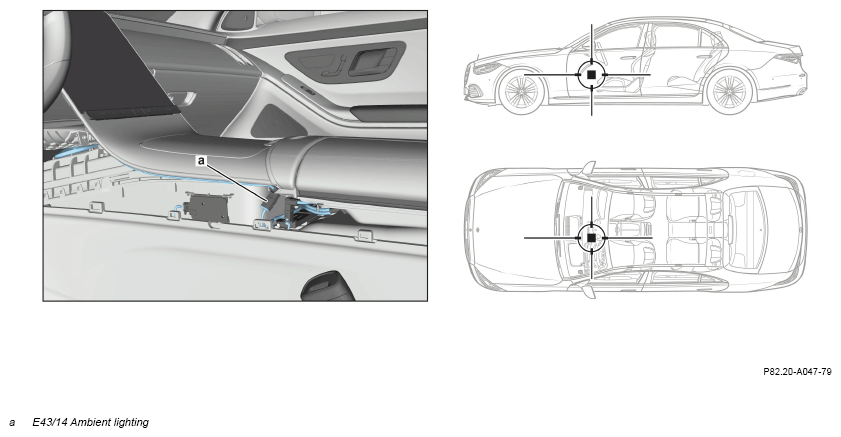

Location for model 223
 Courtesy of MERCEDES-BENZ USA
|

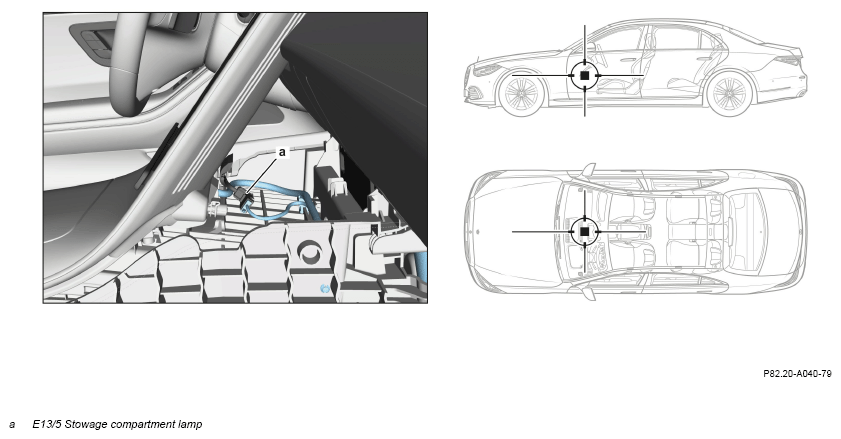

Location for model 223
 Courtesy of MERCEDES-BENZ USA
|

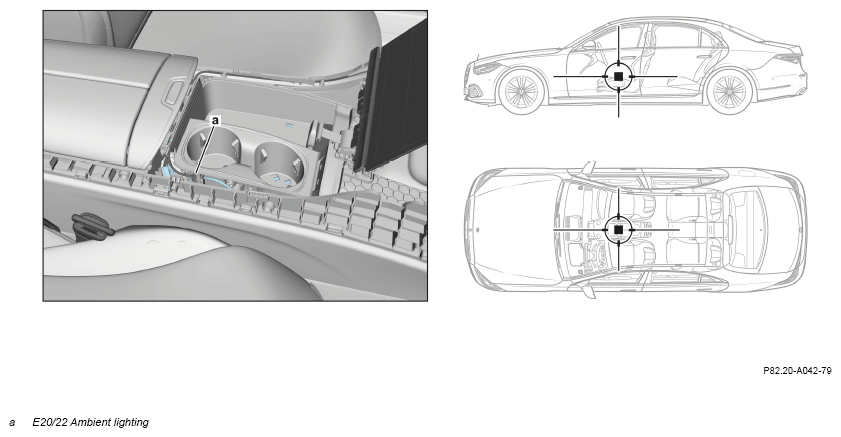

Location for model 223
 Courtesy of MERCEDES-BENZ USA
|

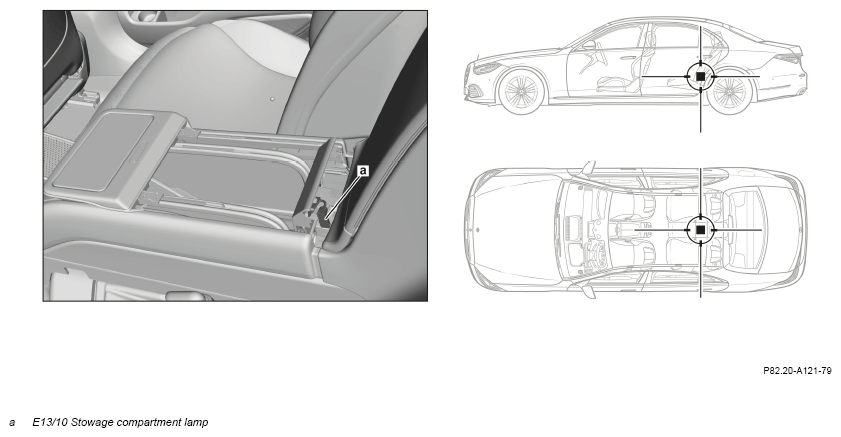

Location for model 223
 Courtesy of MERCEDES-BENZ USA
|

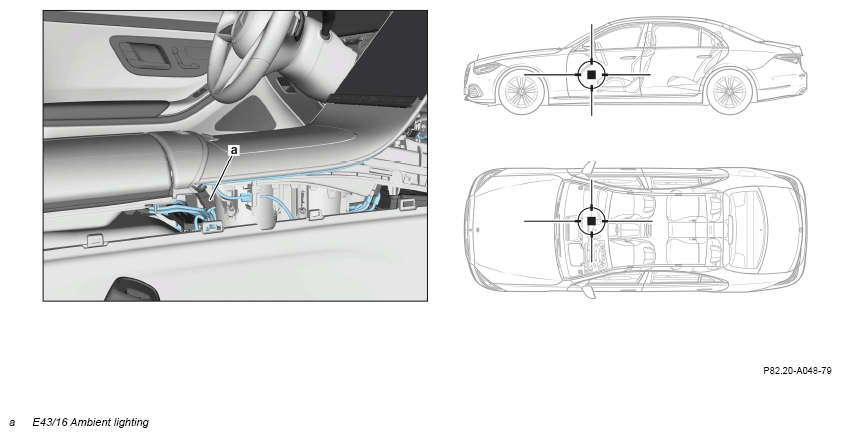

Location for model 223
 Courtesy of MERCEDES-BENZ USA
|

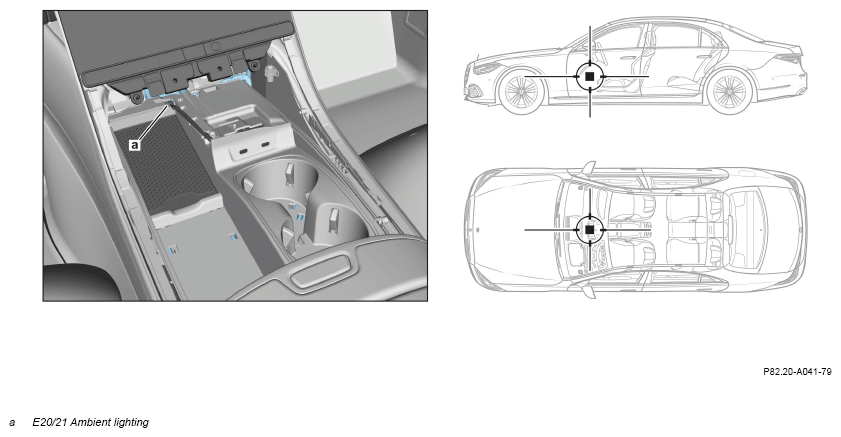

Location for model 223
 Courtesy of MERCEDES-BENZ USA
|

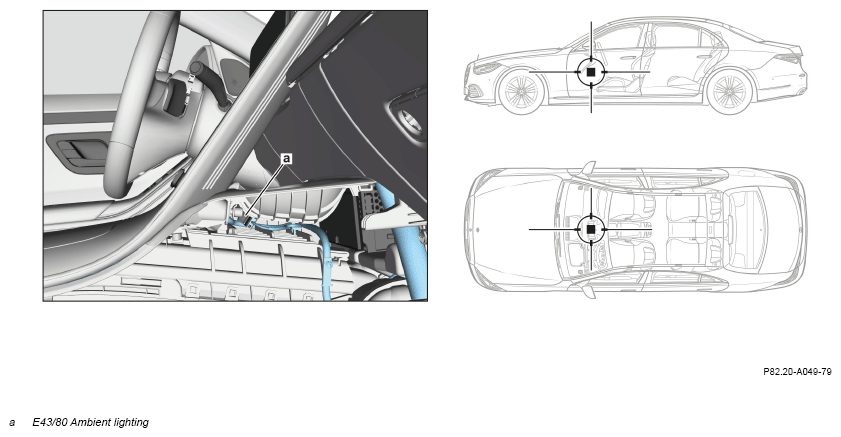

Location for model 223
