Bluetooth(R) Antenna/Wi-Fi Antenna Component Description - GF82.62-P-2000A
Model 223
 Courtesy of MERCEDES-BENZ USA
|

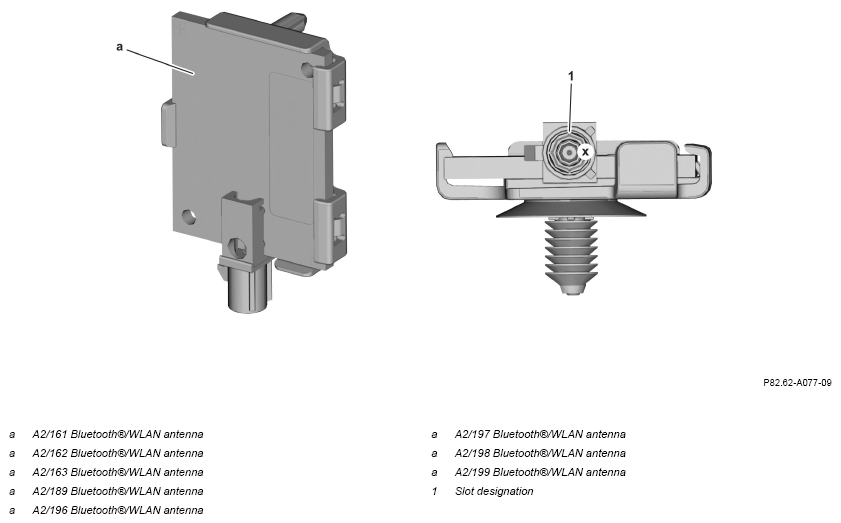

Illustration valid for model 223
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

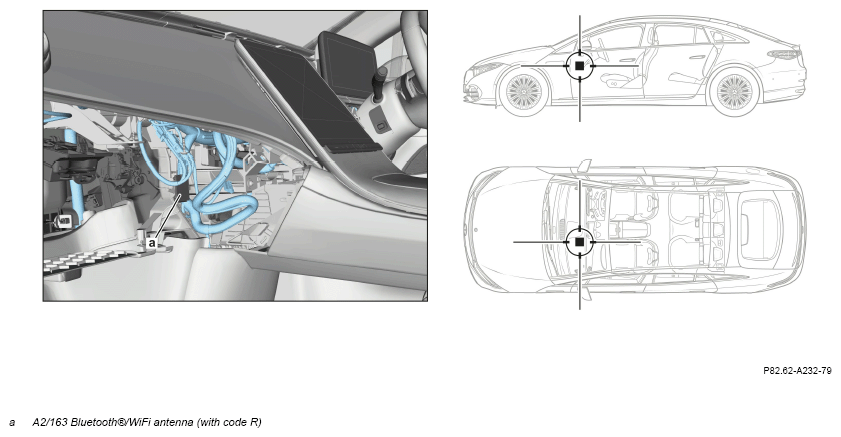

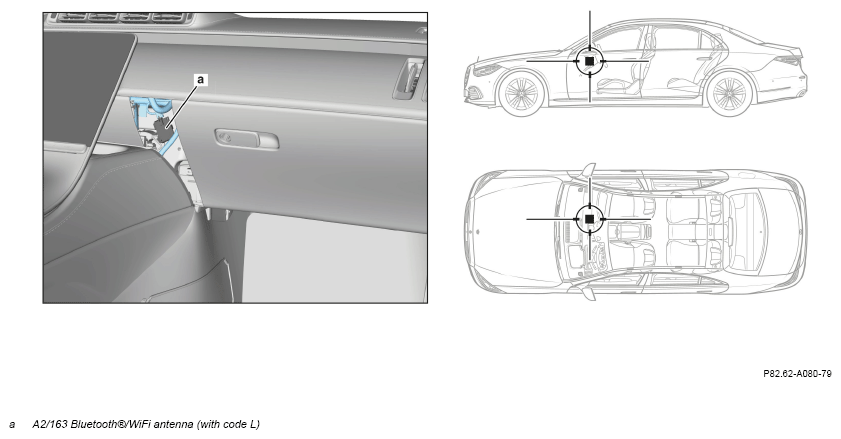

Location for model 223
 Courtesy of MERCEDES-BENZ USA
|

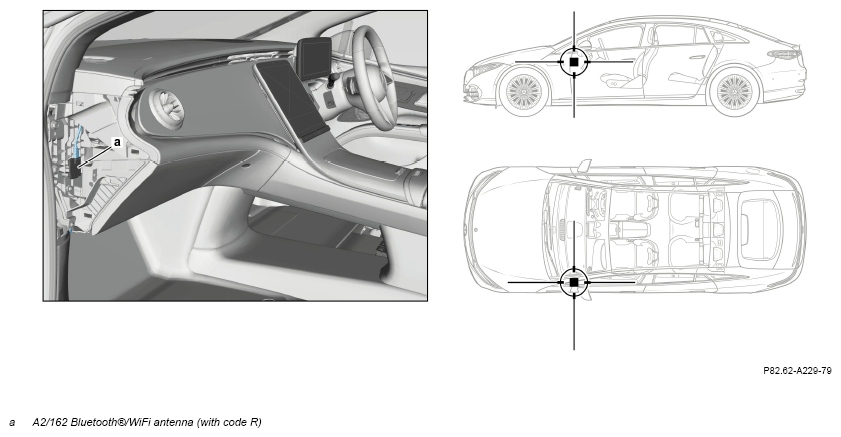

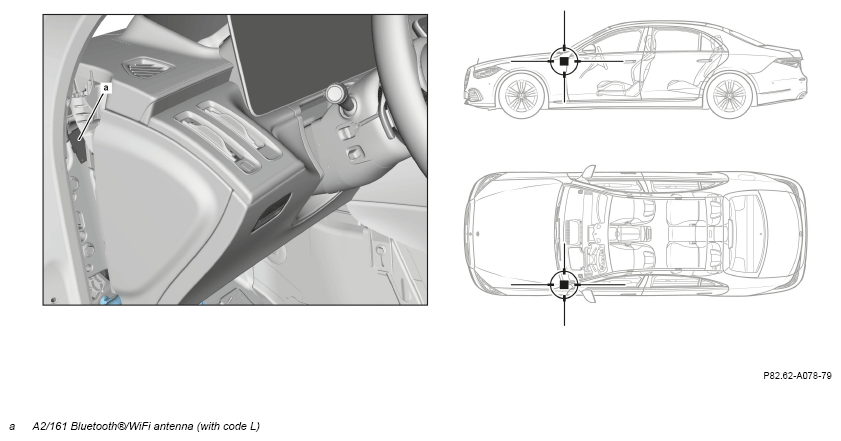

Location for model 223
 Courtesy of MERCEDES-BENZ USA
|

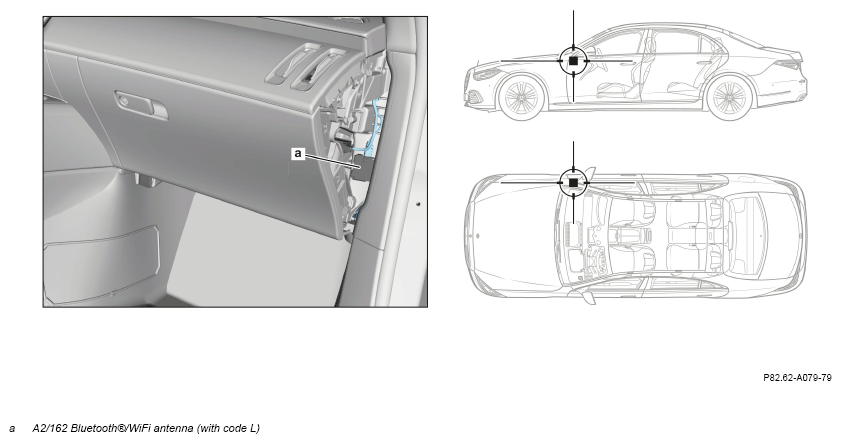

Location for model 223
 Courtesy of MERCEDES-BENZ USA
|

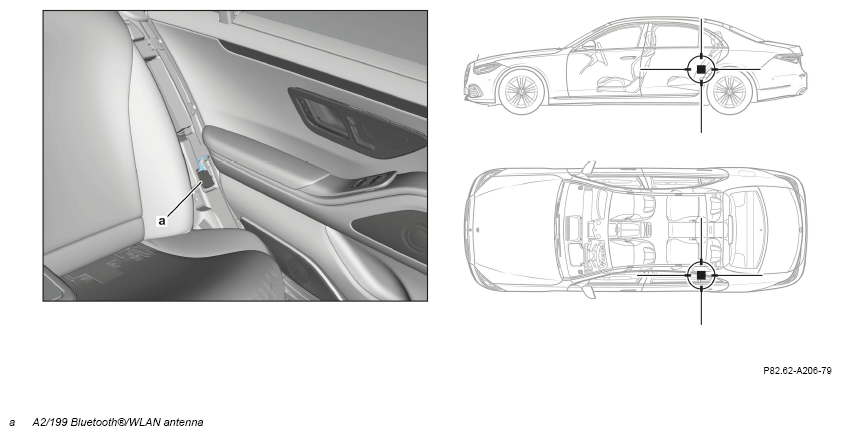

Location for model 223
 Courtesy of MERCEDES-BENZ USA
|

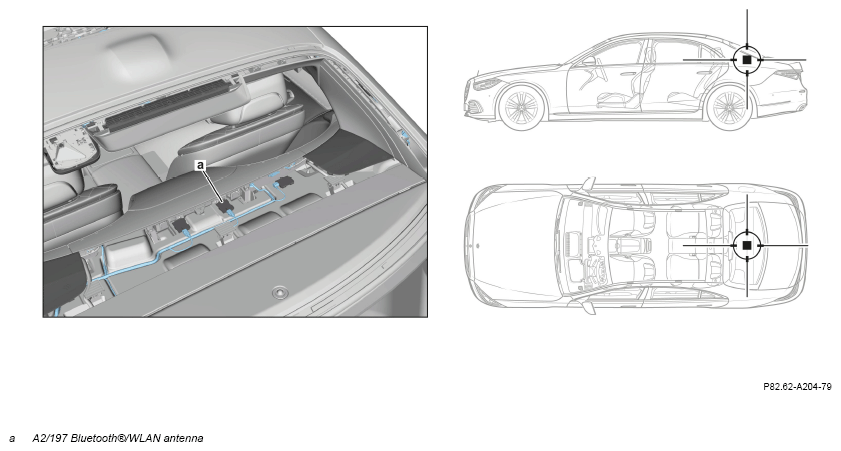

Location for model 223
 Courtesy of MERCEDES-BENZ USA
|

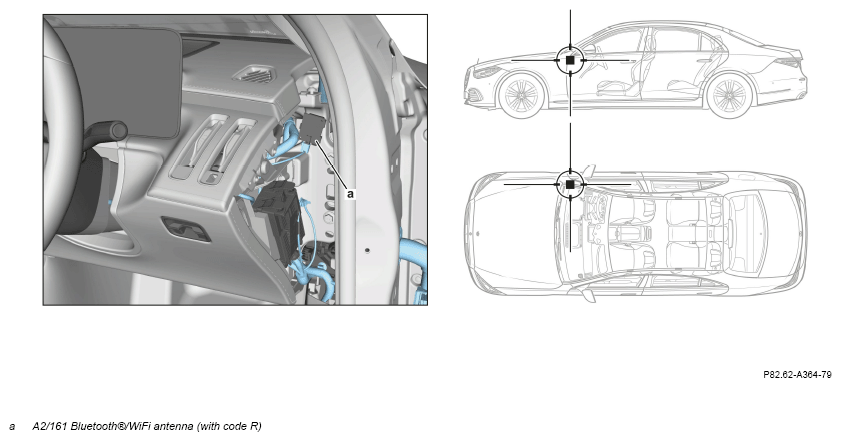

Location for model 223
 Courtesy of MERCEDES-BENZ USA
|

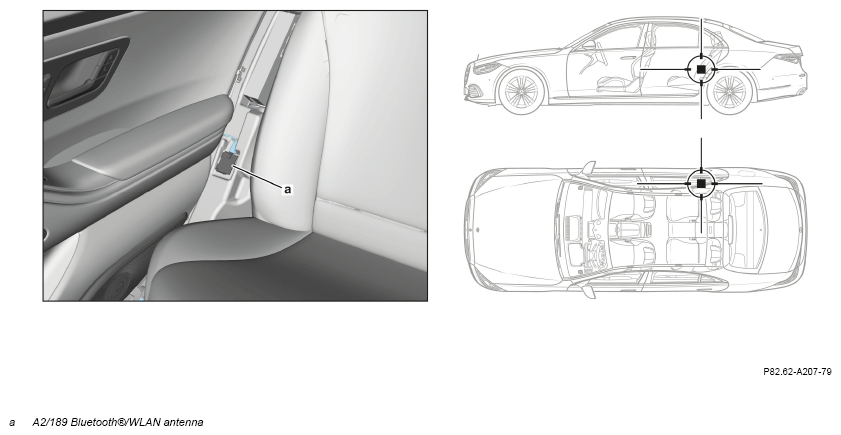

Location for model 223
 Courtesy of MERCEDES-BENZ USA
|
Location for model 223
 Courtesy of MERCEDES-BENZ USA
|
Location for model 223
 Courtesy of MERCEDES-BENZ USA
|
Location for model 223
 Courtesy of MERCEDES-BENZ USA
|
Location for model 223
