Antenna Splitter, Component Description - GF82.62-P-3125A

Model 223

Courtesy of MERCEDES-BENZ USA

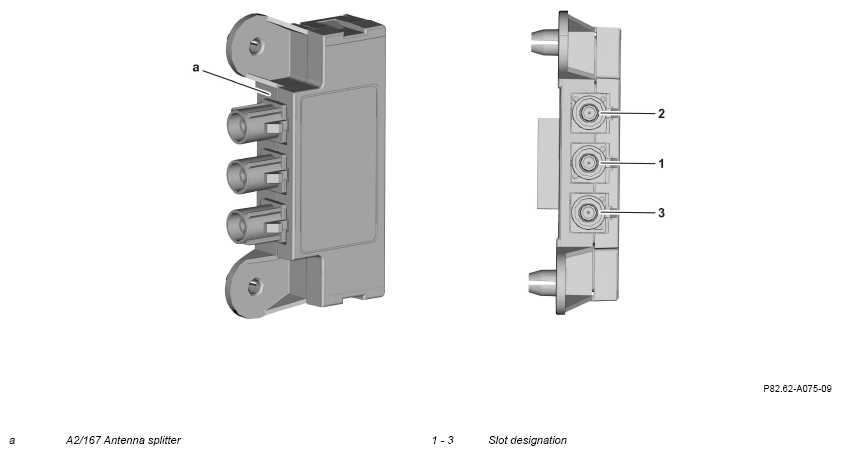

Illustration valid for model 223 with code B24, 503

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

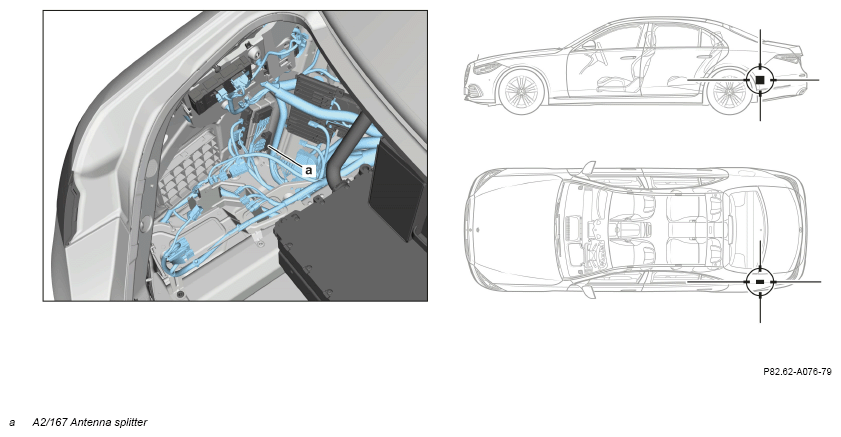

Layout for model 223 with code B24, 503
