Remove/Install Window Airbag - AR91.60-P-0693S
Model 223
Shown except code (Z07 B7 armoring for special protection version)
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Adjust driver and front passenger seat into fully reclined position. | ||
| 2 | Disconnect ground line of battery of 12 V on-board electrical system. | AR54.10-P-0051S | |

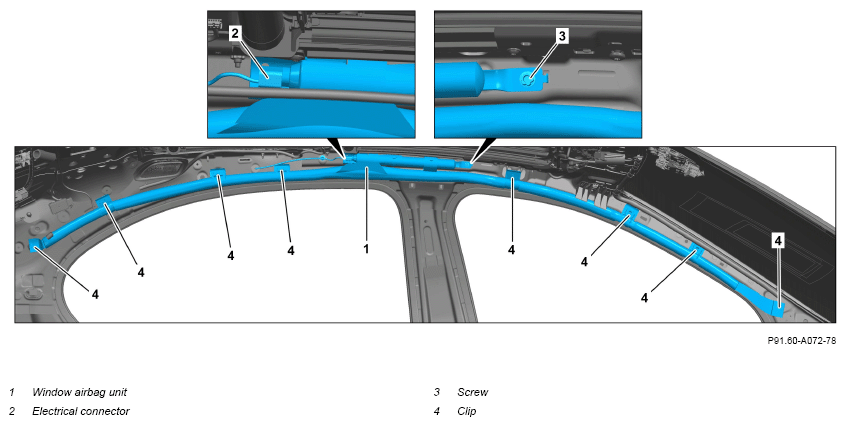

| 3 | Release roof lining and lower far enough until clamps (4) and screw (3) are accessible. | Model 223 with code Z07 (B7 armoring on special protection version) |
AR68.30-P-4300SA |
| Model 223 except code Z07 (B7 armoring on special protection version) |
AR68.30-P-4300S | ||
| 4 | Release and disconnect electrical connector (2) at gas generator. | Fig 2 | |

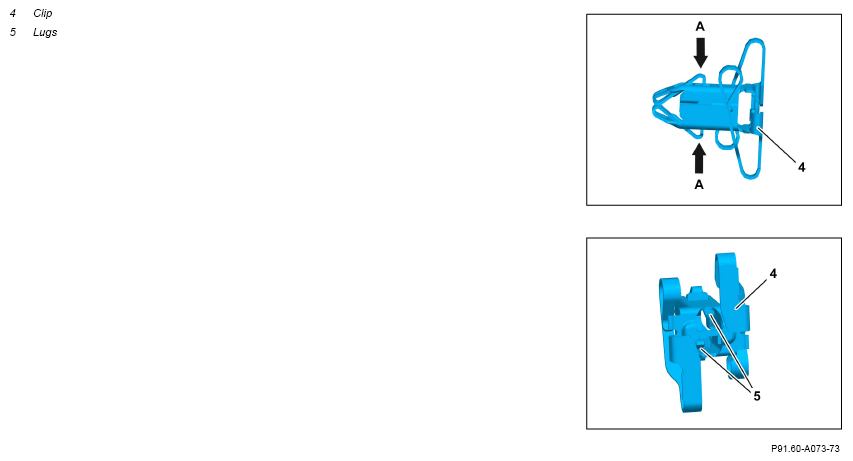

| 5 | Use suitable pliers to press tabs (5) together (arrows A) and remove clamps (4). | ||
| 6 | Unscrew screw (3) and unhook window airbag unit (1) from roof frame. | *BA91.60-P-1004-01I | |
| 7 | Remove window airbag unit (1) with gas generator from vehicle. | Carefully remove window airbag unit (1). Otherwise the interior equipment or paint may be damaged. |
|
| 8 | Install in the reverse order. | ||
| Check | |||
| 9 | Check Supplemental Restraint System (SRS) using vehicle diagnosis system. | ||
| AD00.00-P-2000-06FR |
AIRBAG
| Number | Designation | Model 223 | |
|---|---|---|---|
| BA91.60-P-1004-01I | Bolt, window airbag unit to roof frame | Nm | 8 |
