Remove/Install Side Paneling In Rear - AR68.30-P-4780S

Model 223

except code 223 (Electric backrest adjustment and head restraints)

except code 224 (Individual rear seats)

Courtesy of MERCEDES-BENZ USA

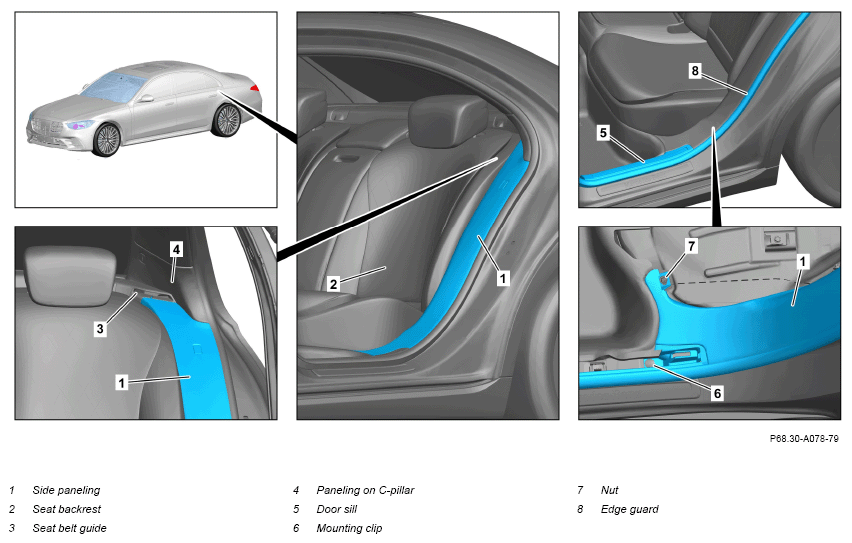

Shown on left side of vehicle

	Remove/install
1	Remove seat backrest (2) in rear.		AR91.12-P-1713S
2	Unclip corresponding seat belt guide (3) and remove.	Long wedge	Fig 2
3	Remove trim at C-pillar (4).	Model 223 except code 223 (Electric backrest adjustment and head restraints) except code 224 (Individual rear seats)
			AR68.30-P-4490S
4	Unclip door sill (5) upwards and remove.	Long wedge	Fig 2
5	Unclip retaining clip (6).	Dismantling tool	Fig 1
6	Remove nut (7).
7	Unclip side trim (i) and remove.	Ensure correct installation position of edge guard (8).
		Long wedge	Fig 2
8	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
